Mobile ESD Cart

Item #:ESD-EVH-1000
Mobile ESD Cart
Mobile ESD Cart - Image 2
Mobile ESD Cart - Image 3
Mobile ESD Cart - Image 4
Mobile ESD Cart - Image 5
Mobile ESD Cart - Image 6
Mobile ESD Cart - Image 7
Mobile ESD Cart - Image 8

Mobile ESD Cart

Item #:ESD-EVH-1000
Made in the USA
Limited Lifetime Warranty
Add to List
Description Features Specifications What's in the Box Resources
Description

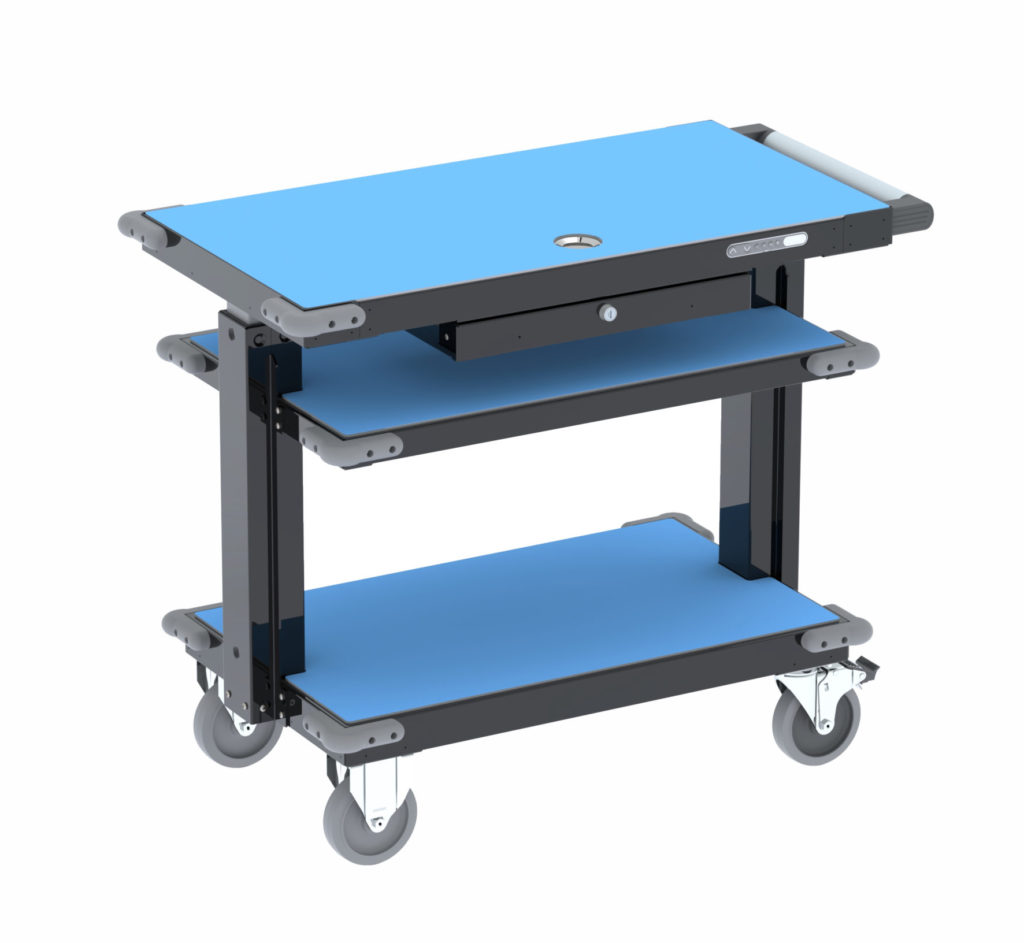

Kendall Howard's Electric Variable Height ESD Cart provides technicians in static control environments an ergonomically friendly, ESD Safe, mobile solution for the transportation and maintenance of sensitive Electric components across a multitude of industries.  Designed for mobile ergonomics and safety in mind. This cart features Electrically controlled height adjustability between 29" and 54". Lithium-Ion battery and intelligent controllers allow for pre-programmable height settings to quickly satisfy repeat users and applications. The lift column actuators feature anti-collision detection to protect operators and their instruments when actuating downward movement of the work surface.

  • Each individual shelf can support up to 200 lbs, up to 500 lbs max load on cart
  • Ships fully assembled
  • Integrated magnetic tray
  • Locking slide out drawer
  • Gloss Black powder coat finish offers an easy to clean and a durable surface
  • 5 year warranty on the cart electronics
  • Limited lifetime warranty
  • Manufactured in the USA
  • US Patent: 10,881,040

Features
Height Adjustable

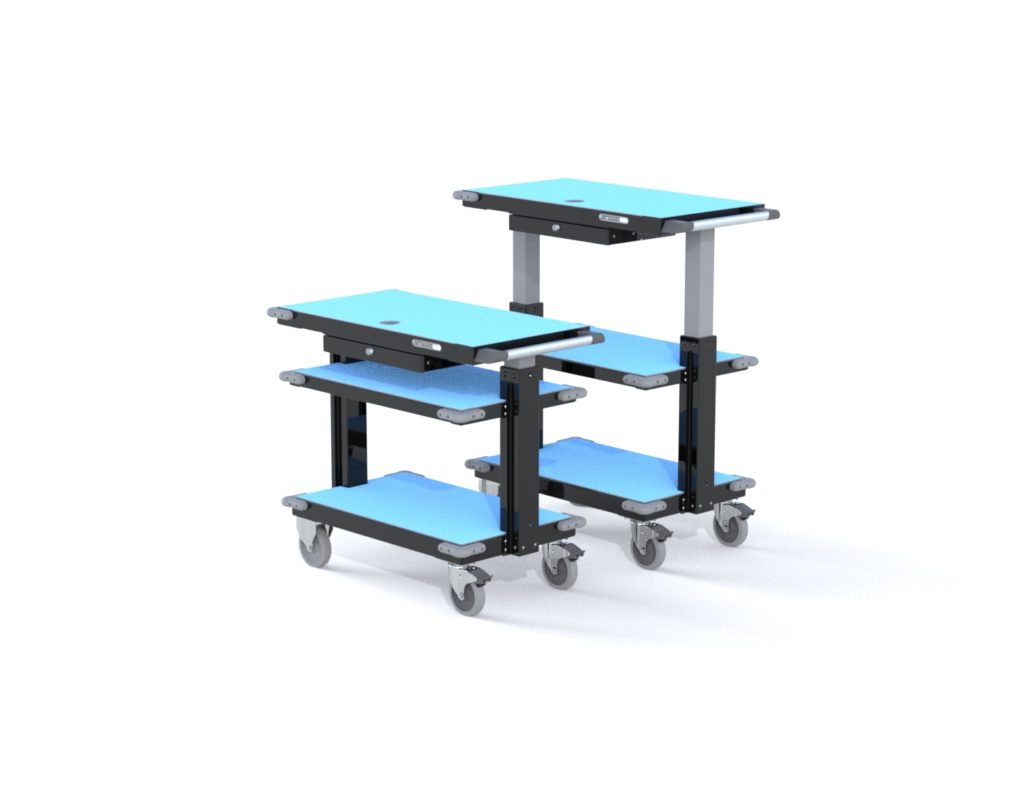

The top shelf can lower to 29″ and rise to 54″. The lift columns allow the shelf to be set at any variable height between 29″ – 54″.

Controller

The controller has three memory settings so that users can more easily adjust the carts height for different jobs. The easy-to-read digital display shows the height of the adjustable top shelf.

Casters

The cart is outfitted with two 5″ ESD locking swivel-casters and two non-ESD fixed/rigid casters. The ESD casters are constructed of a carbon infused polymer that allows the cart to operate safely on non-insulated or ESD safe flooring

Ergonomic Handle

The handle is ergonomically friendly and allows users to easily maneuver the carts.

Corner Guard Bumpers

The corners of the cart are outfitted with rubber bumpers to prevent damage to the most susceptible areas of the cart. The bumpers will help keep your cart looking in good shape over time.

Test Data

Resistance to top/ resistance to ground 1.0 x 10^5 – 1.0 x 10^9 Ohms resistance at 70° F & 30% relative humidity.

Shelf Versatility

The lower two shelves are fixed; upper shelf is adjustable from 29” – 54”. Each shelf is protected with an ESD mat.

Specifications
Part Number# ESD-EVH-1000
Width 21"
Depth 37.25"
Height 29" to 54"
Weight 210 lbs
Shipping Dimensions 46"L x 23"W x 36"H
Color Gloss Black
UPC 879447001839
Warranty Limited lifetime warranty
Shipping Method LTL
US Patent 10,881,040
What's in the Box
Item Quantity
Mobile ESD Cart 1
Resources
Title Type Date Version File Size
Title
ESD Cart Cut Sheet
Type
Cut Sheet
Date
03/21
Version
1
File Size
531.08 KB		 Download
Title
ESDW-EVH-1000.STEP
Type
3D CAD
Date
03/21
Version
1
File Size
21.39 MB		 Download
Title
ESDW-EVH-1000 Instructions
Type
Instructions
Date
06/21
Version
1
File Size
695.70 KB		 Download
Title
ESDW-EVH-1000 Data Sheet
Type
Data Sheet
Date
03/21
Version
1
File Size
155.21 KB		 Download
