ESD Cabinet with Accessories
ESD Cabinet with Accessories
Made in the USA
Limited Lifetime Warranty
Description

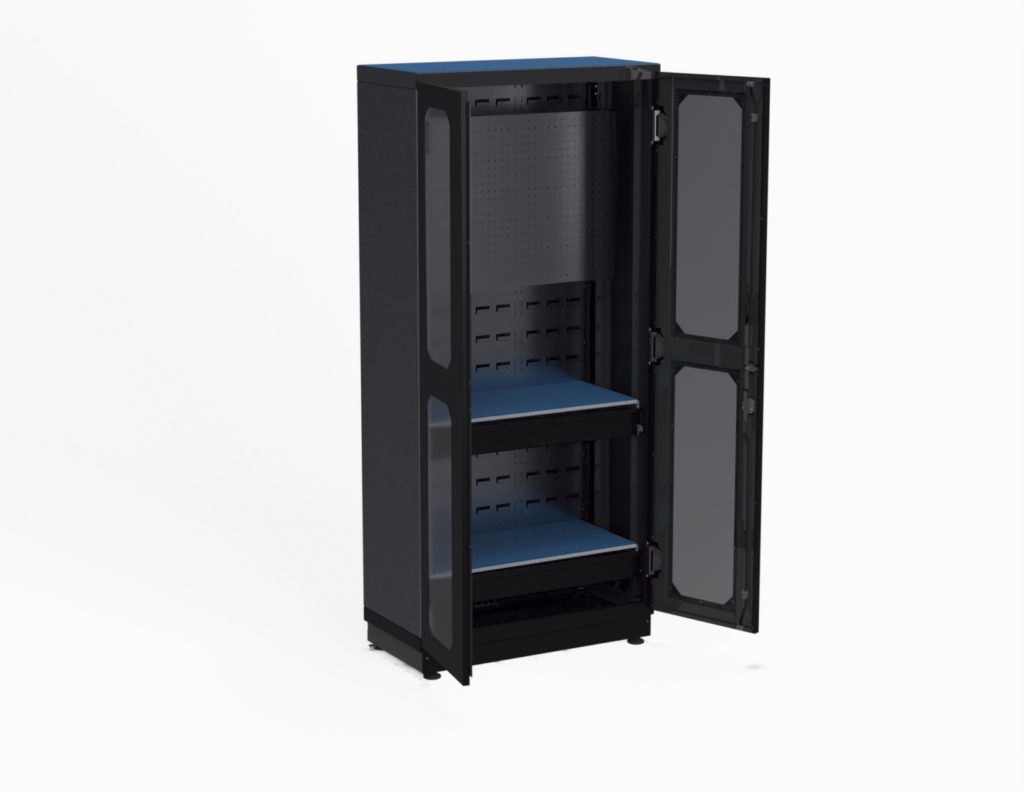

The Kendall Howard™ ESD Cabinet provides technicians in static control environments an ESD safe storage solution for protecting sensitive electronic components across a multitude of industries. Designed with versatility and The Kendall Howard™ ESD Cabinet provides technicians in static control environments an ESD safe storage solution for protecting sensitive components across a multitude of industries. Designed with versatility and protection in mind. Our fully enclosed cabinet is equipped with locking split-entry doors to ensure sensitive equipment is safe. The cabinet is complete with a fully integrated louvered panel system featuring 153 louvered cut outs for mounting additional accessories.
- 500 lb weight limit
- 78” Height x 36” Width x 18” Depth
- Clear ESD statically protective polycarbonate doors
- Gloss black powder coat finish
- Locking door
- Includes 2 drawers (ESDC-7836-1200), 2 shelves (ESDC-7836-1100), and 1 full length pegboard (ESDC-7836-1201)
- ESD protected interior
- ESD Safe top, mat included
- Limited lifetime warranty
- Constructed from cold rolled steel
- Made in the USA
- UPC: 87944700616
Features

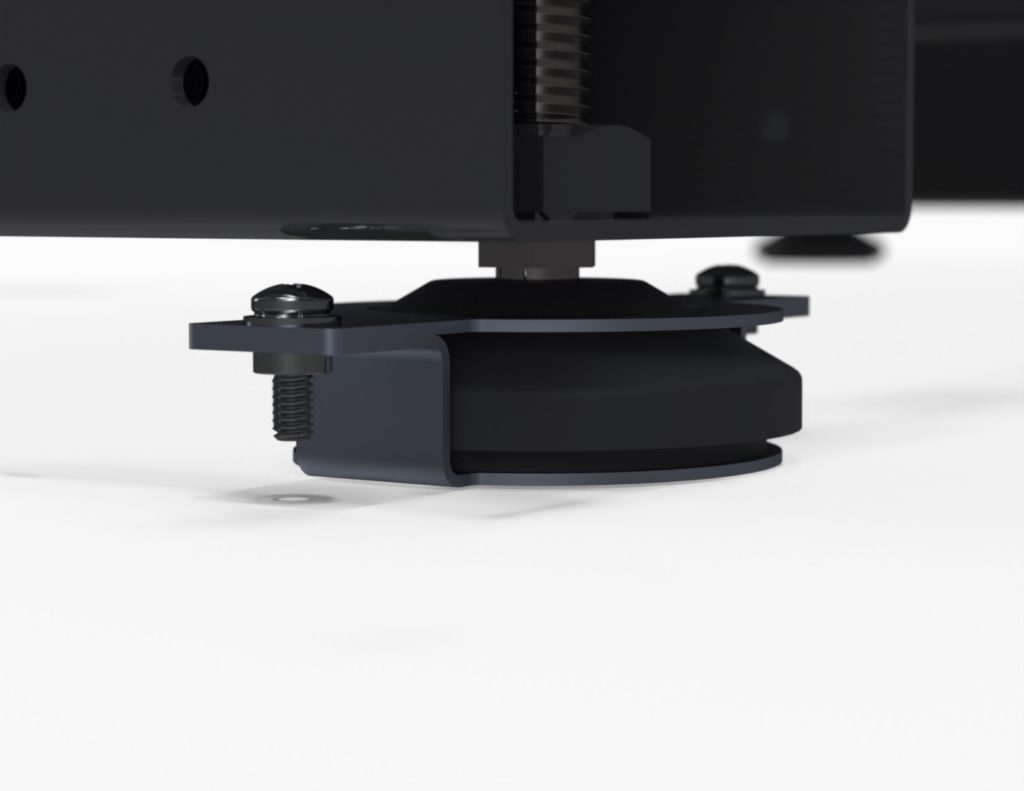

Common Ground Point
ESD cabinets must be grounded one of two ways. One grounding option is with a 10’ common ground wire to an external earth ground. The second is built directly into the rear leg levelers with our unique aluminum boot for use with ESD safe flooring.

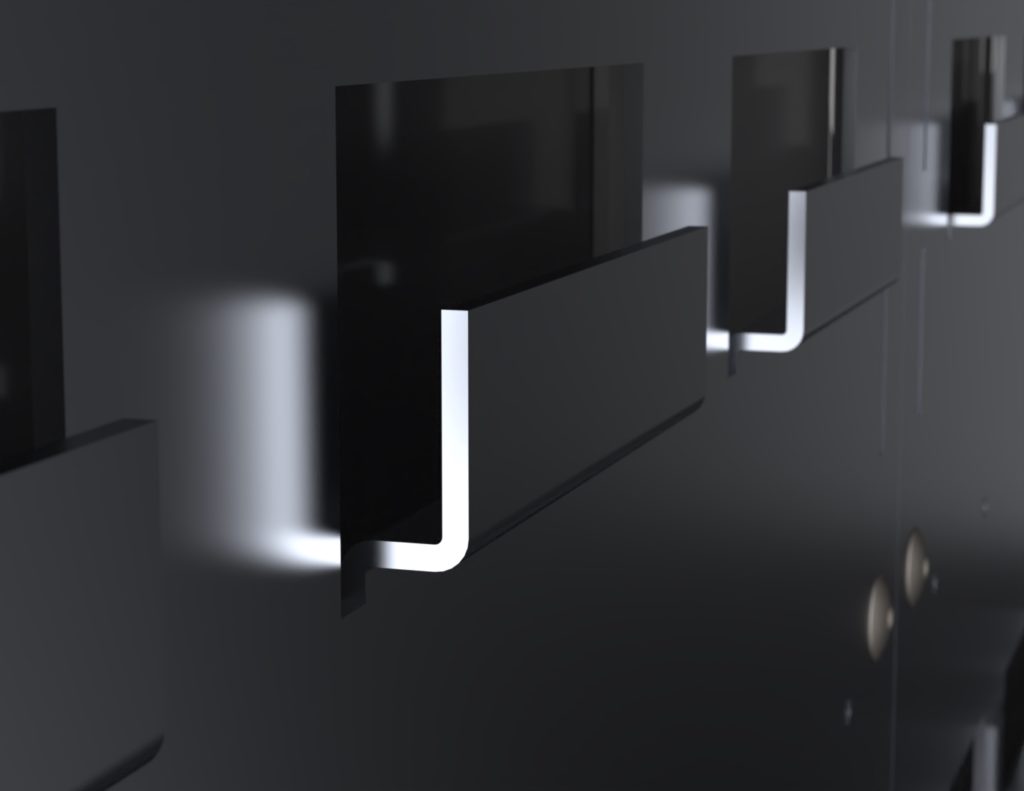

Integrated Louvered Panel
This integrated louvered panel system offers ample locations to install ESD bins, louvered panel accessories or any of the proprietary Kendall Howard ESD shelves, drawers, or pegboards.
Accessories Included

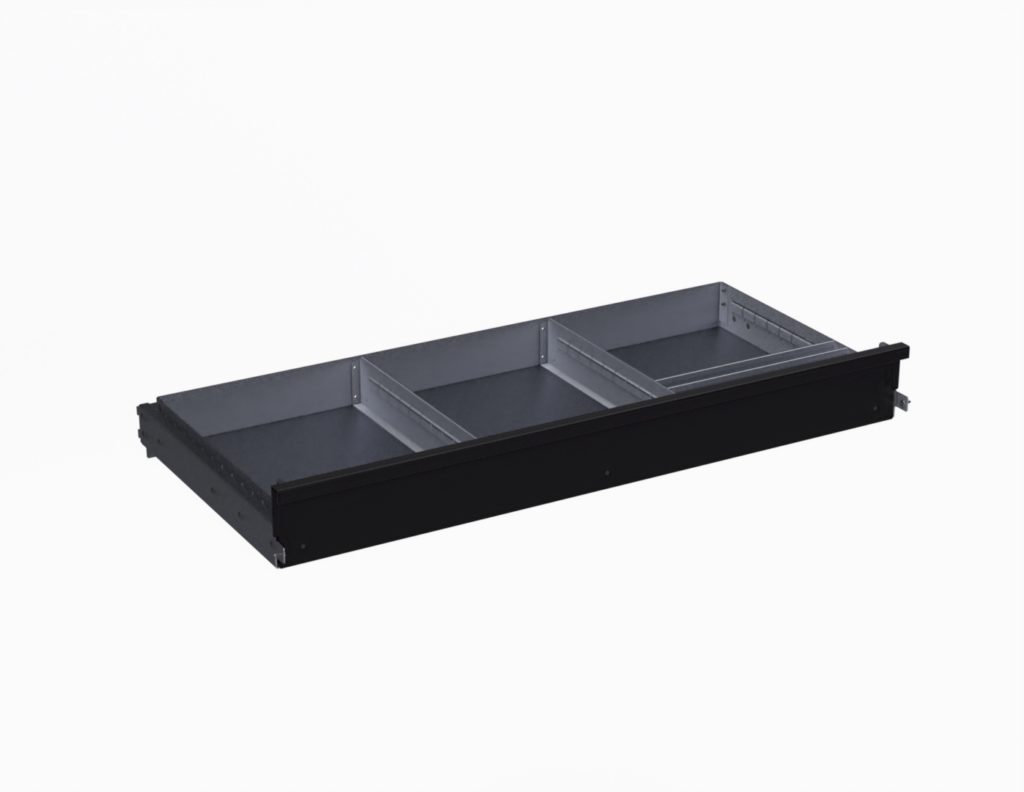

Cabinet includes several accessories to create an impactful storage solution. Included accessories: two pull out drawers, two shelves & a full length pegboard.
Specifications
| Part Number | ESDC-7836-2000 |
| Width | 36" |
| Depth | 18" |
| Height | 78" |
| Weight | 341 lbs |
| Shipping Dimensions | 84"H x 41"W x 23"D |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Gloss Black |
| UPC | 879447006162 |
| Warranty | Limited Lifetime |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| ESD Cabinet | 1 |
| Drawers Kit | 2 |
| ESD Shelves | 2 |
| 23" x 32" Pegboard | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title ESDC-7836-2000 Data Print |
Type Data Sheet |
Date 04/21 |
Version 1 |
File Size 177.33 KB |
Download |
Title ESDC-7836-2000 Instructions |
Type Instructions |
Date 06/21 |
Version 1 |
File Size 496.24 KB |
Download |
Title ESDC-7836-2000.STEP |
Type 3D CAD |
Date 04/21 |
Version 1 |
File Size 12.14 MB |
Download |
Title ESD Cabinet with Accessories Cut Sheet |
Type Cut Sheet |
Date 07/21 |
Version 1 |
File Size 496.12 KB |
Download |
