9U LINIER® Swing-Out Wall Mount Cabinet - Glass Door

Item #:3130-3-001-09

9U LINIER® Swing-Out Wall Mount Cabinet - Glass Door

Item #:3130-3-001-09
Made in the USA
Certifications
19" EIA compliant
Add to List
Description
The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
  • Includes one locking tempered glass door
  • Locking side panels
  • 150 lb. weight capacity
  • One set of cage nut style mounting rails
  • 90 degree swing-out
  • Mounting depth: 22.5"
  • 19" EIA compliant
  • Made in the USA
  • 5-Year Limited Warranty
Features
Economical Design

Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

90 Degree
Swing-Out

Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.

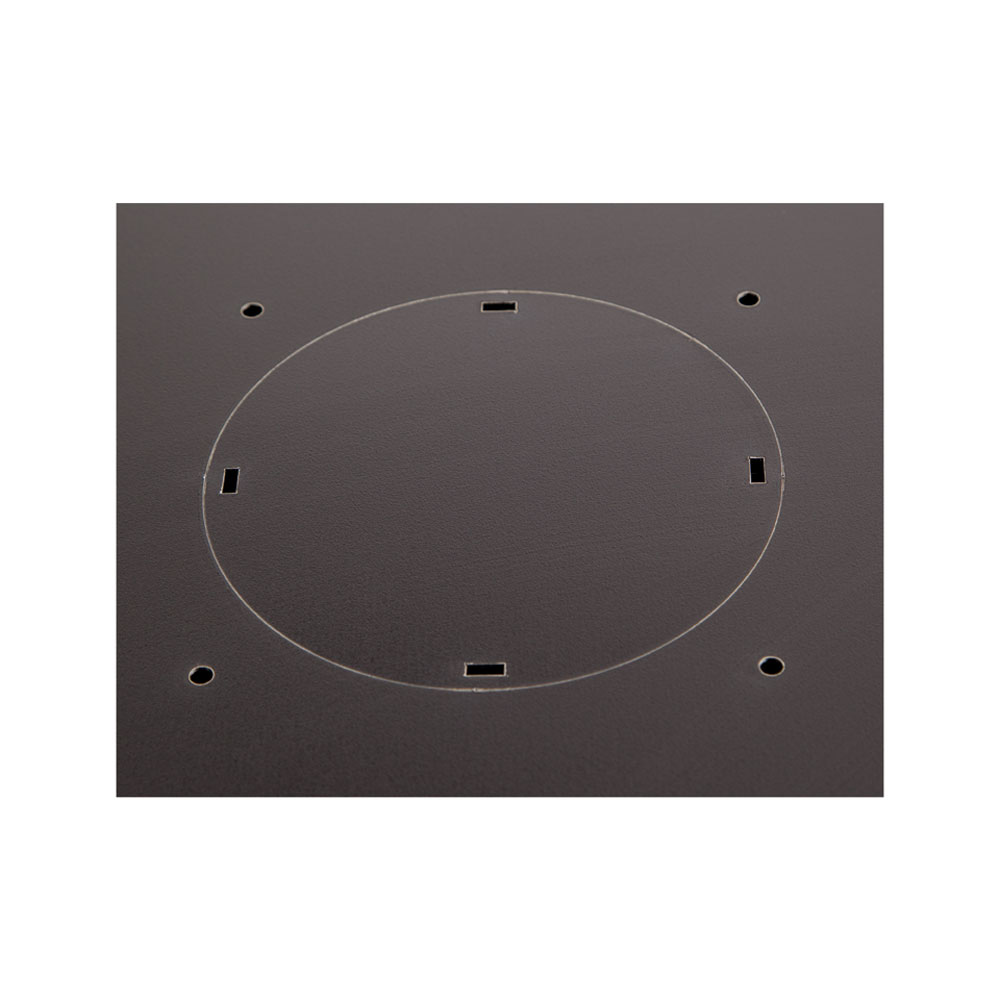

Numerous Laser Knockouts

Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

Adjustable Rails

The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

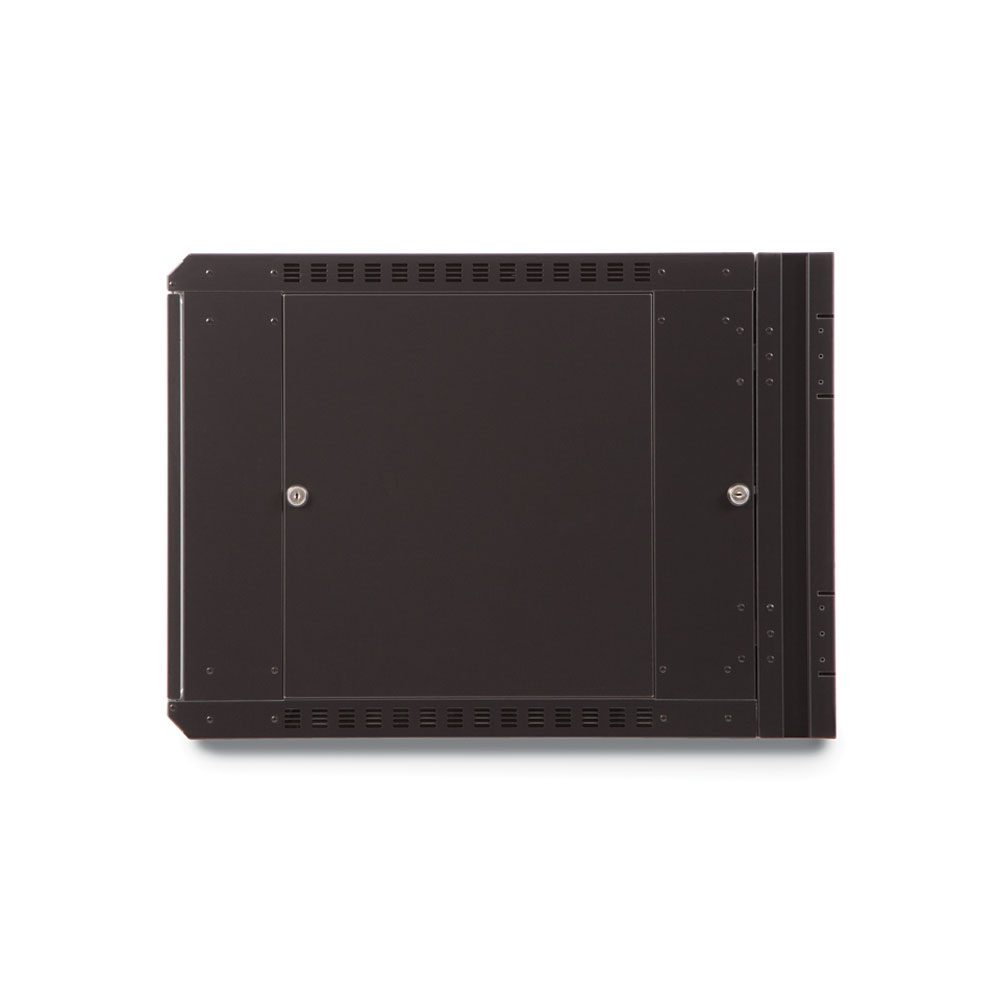

Removable Side Panels

Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

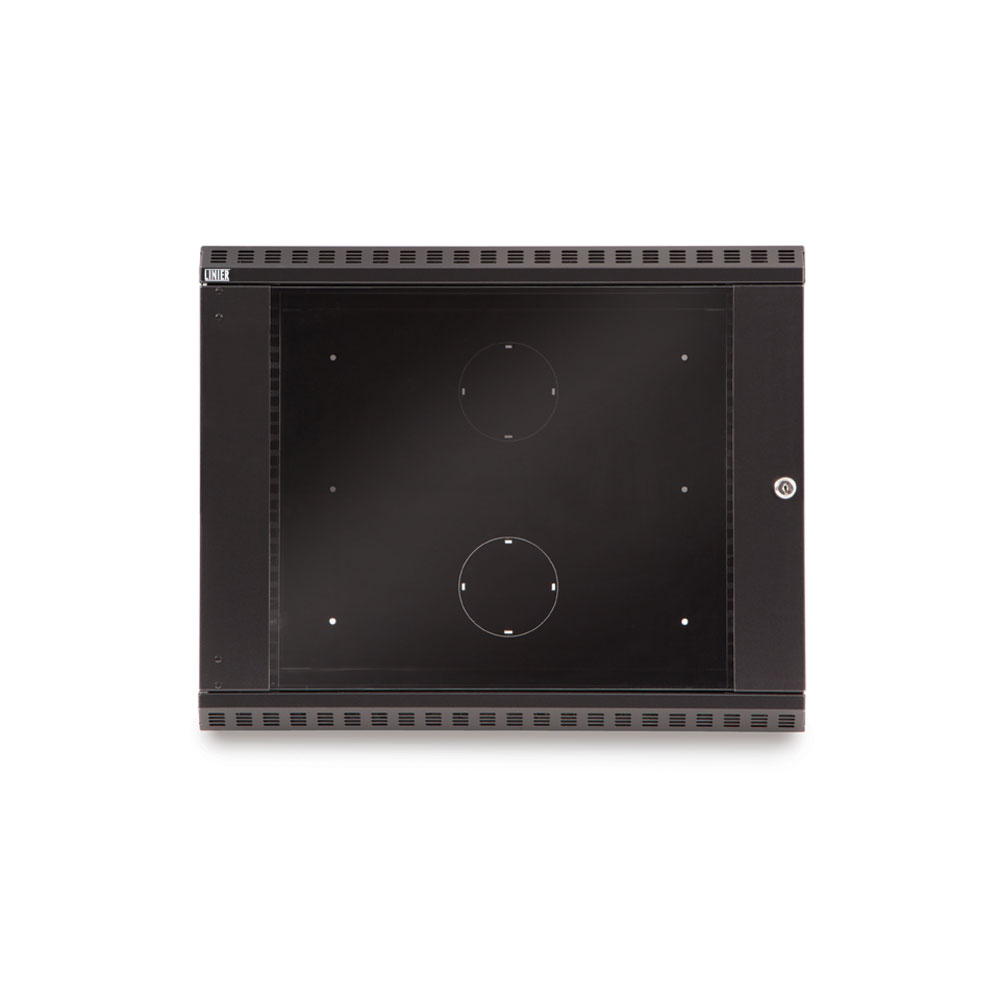

Reversible Glass Door

Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The glass door allows you to monitor your network system.

Specifications
Part Number 3130-3-001-09
Width 23.50"
Depth 26.64" (Usable 22.50")
Height 19.46"
Weight 58.00 lbs.
Shipping Dimensions 29" L x 31" W x 26" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447002850
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
9U LINIER Swing-Out Wall Mount Cabinet - Glass Door 1
Hardware Included 1
Cage Nut Style Mounting Rails 1
10-32 Rack Screws 24
10-32 Cage Nuts 24
Resources
Title Type Date Version File Size
Title
9U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-09) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
121.86 KB
Download
Title
9U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-09) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
483.42 KB
Download
Title
3130-3-001-09.STEP
Type
3D CAD
Date
10/20
Version
1
File Size
12.15 MB
Download
Title
Wallmount Swing-Out Cut Sheet
Type
Cut Sheet
Date
01/21
Version
1
File Size
468.82 KB
Download
