6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut

Item #:3150-3-001-06
6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut

6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut

Item #:3150-3-001-06
The LINIER® 6U Wall Mount Vertical Rail Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Fixed or Swing-Out Wall Mount Cabinet.
Made in the USA
Certifications
19" EIA compliant
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description
The LINIER® 6U Wall Mount Vertical Rail Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Fixed or Swing-Out Wall Mount Cabinet. When installing network, security, or low-voltage electrical equipment sometimes additional mounting points are required. This additional set of rails will provide the added mounting functionality you need.
  • Fully adjustable
  • Can be used with the LINIER® 6U Fixed or 6U Swing-Out Wall Mount Cabinet

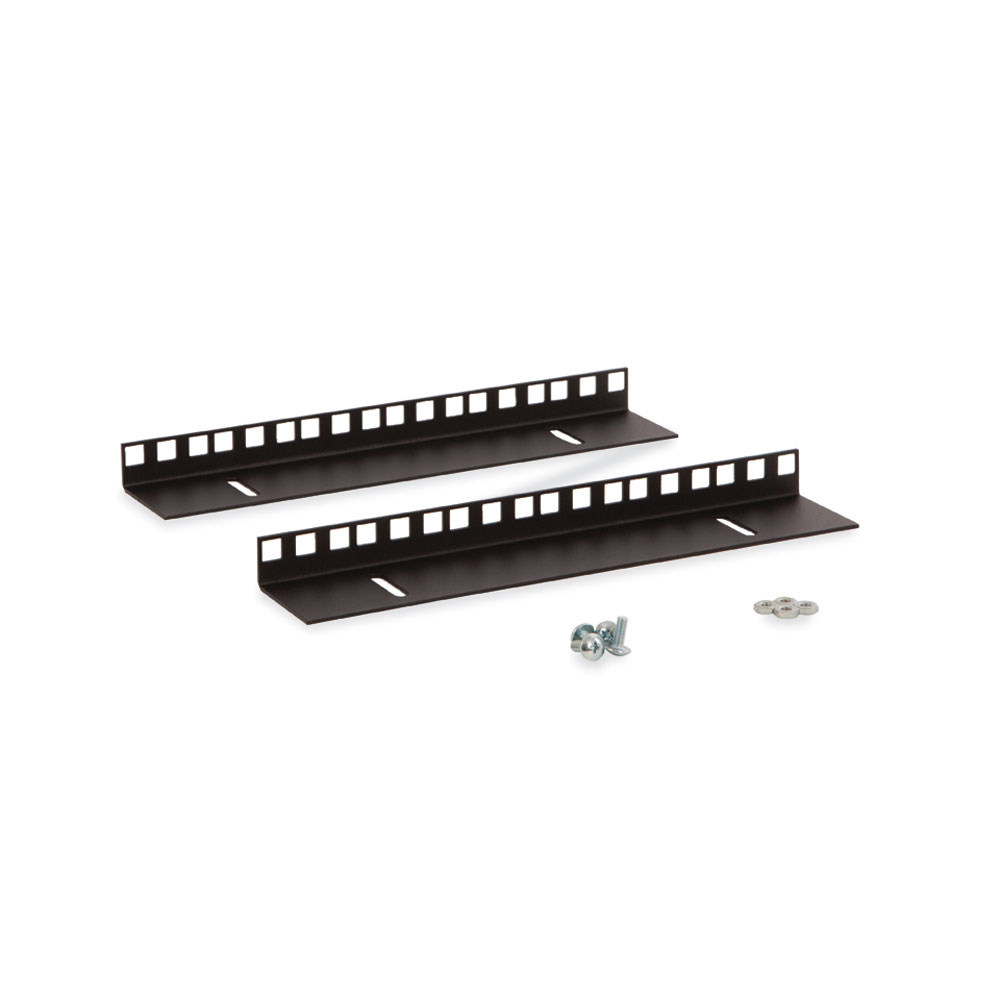

  • Includes two 6U cage nut style rails
  • Installation hardware included
  • Made in the USA
  • Limited Lifetime Warranty
Features
Cage Nut Style Rails

This set of universal cage nut rails are to be used in conjunction with rack screws and cage nuts. Cage nut style rails continue to grow in popularity because installers don’t have to worry about stripping holes. If a cage nut is stripped, you simply remove it and install a new one. With tapped rails, replacement of the entire rail is required.

Specifications
Part Number 3150-3-001-06
Width 0.912"
Depth 2"
Height 10.5"
Weight 2.00 lbs.
Shipping Dimensions 12" L x 5" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447002775
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
6U Vertical Rails 2
Assembly Parts Pack 1
Resources
Title Type Date Version File Size
Title
6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-06) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
737.85 KB		 Download
Title
6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-06) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
579.47 KB		 Download
Title
6U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-06) Instructions
Type
Instructions
Date
05/19
Version
1.0
File Size
525.03 KB		 Download
Title
3150-3-001-06.STEP
Type
3D CAD
Date
08/20
Version
1
File Size
123.75 KB		 Download
