6U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped

Item #:3150-3-002-06

6U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped

Item #:3150-3-002-06
The LINIER® 6U Wall Mount Vertical Rail Kit can be installed in either the LINIER® Fixed or Swing-Out Wall Mount Cabinets to provide a 10-32 tapped rail solution.
Made in the USA
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description
The LINIER® 6U Wall Mount Vertical Rail Kit can be installed in either the LINIER® Fixed or Swing-Out Wall Mount Cabinets to provide a 10-32 tapped rail solution. This tapped rail kit can replace the cage nut style rails that are included with the LINIER® Fixed and Swing-Out Cabinets for installers who prefer a tapped rail mounting solution.
  • Fully adjustable

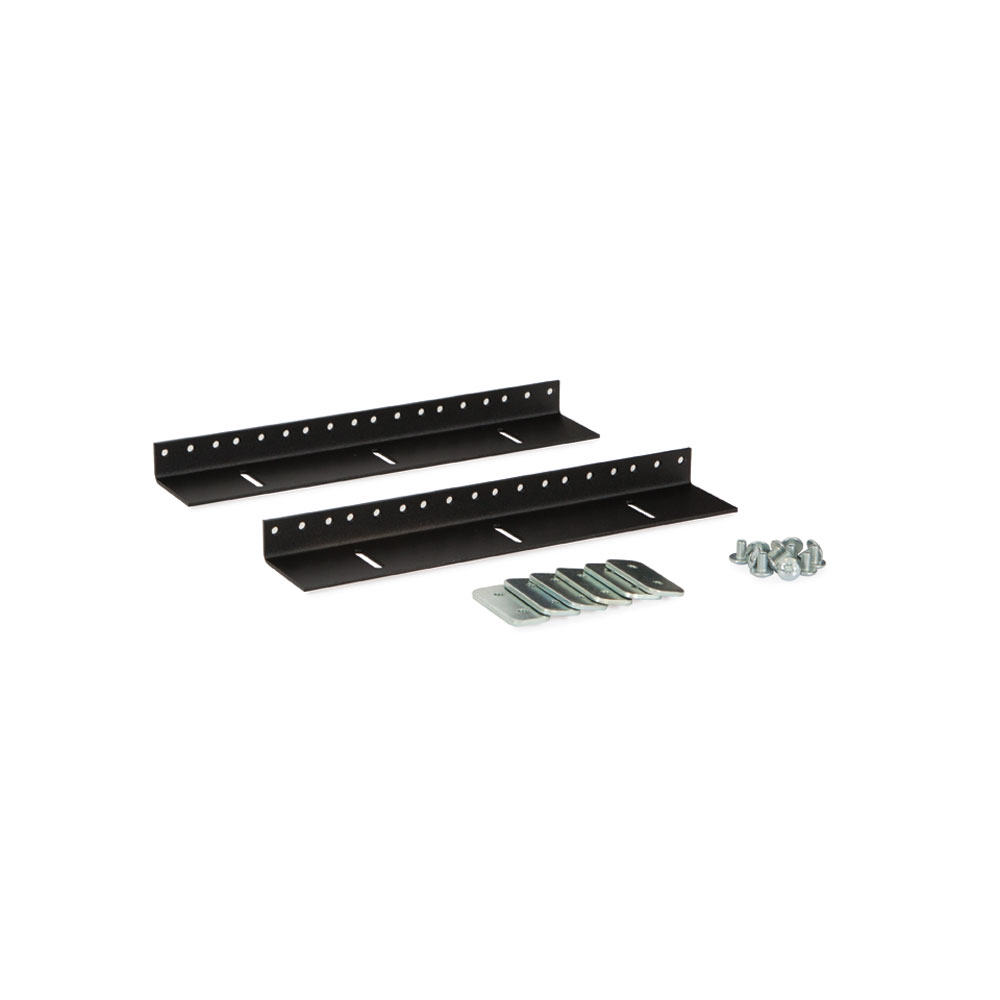

  • Includes two 6U 10-32 tapped rails
  • Can be used with the LINIER® 6U Fixed or 6U Swing-Out Wall Mount Cabinet
  • Installation hardware included
  • Made in the USA
  • 5-Year Limited Warranty
Features
10-32 Tapped Rail Kit

Many installers enjoy the convenience of pre-tapped mounting rails. A tapped mounting rail features holes that contain internal threads. These threaded holes accept rack screws without the need for additional hardware such as cage nuts. This mounting style requires less hardware and less installation time.

Specifications
Part Number 3150-3-002-06
Width 0.912"
Depth 2"
Height 10.5"
Weight 2.00 lbs.
Shipping Dimensions 12" L x 5" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004113
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground

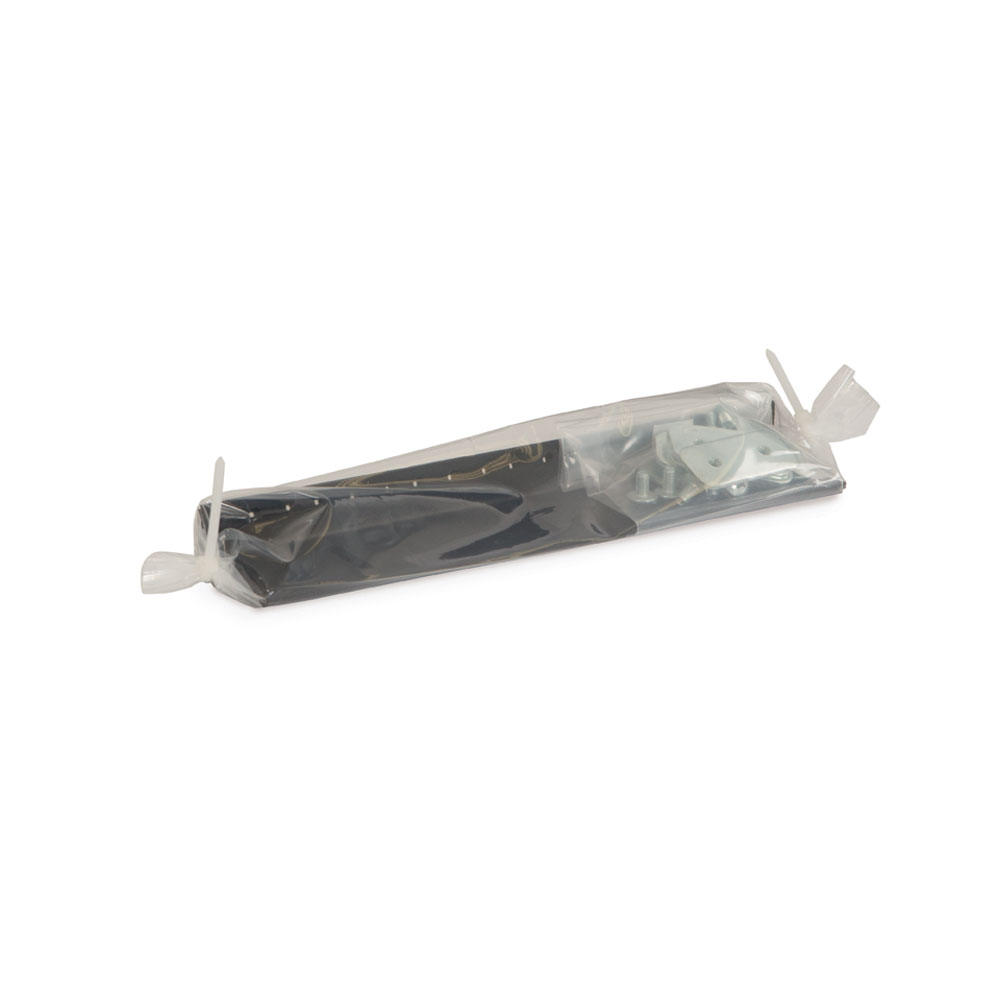

What's in the Box
Item Quantity
6U Vertical Rails 2
Assembly Parts Pack 1
Resources
Title Type Date Version File Size
Title
6U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped (3150-3-002-06) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
737.85 KB		 Download
Title
6U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped (3150-3-002-06) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
63.01 KB		 Download
Title
6U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped (3150-3-002-06) Instructions
Type
Instructions
Date
05/19
Version
1.0
File Size
525.03 KB		 Download
Title
3150-3-002-06.STEP
Type
3D CAD
Date
08/20
Version
1
File Size
70.26 KB		 Download
