6U LINIER® Fixed Wall Mount Cabinet - Glass Door
6U LINIER® Fixed Wall Mount Cabinet - Glass Door
- Includes one locking tempered glass door
- Locking side panels
- 250 lb. weight capacity
- One set of cage nut style mounting rails
- Mounting depth: 22.50"
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made, yet economical wall mount enclosure.

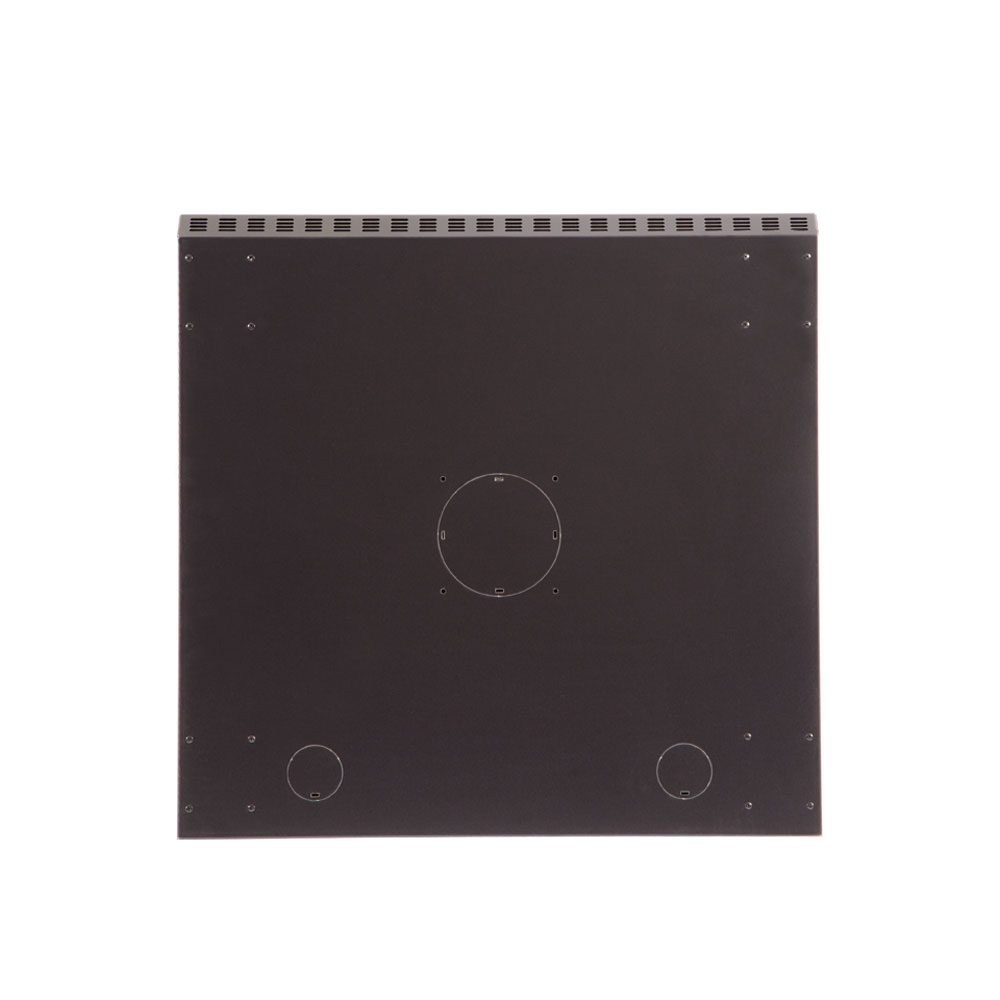

Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
The locking feature provides additional security for all three access points to keep your valuable rack mounted equipment safe from unauthorized use.
Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The glass door allows you to monitor your network system.
Part Number | 3140-3-001-06 |
Width | 23.50" |
Depth | 23.50" (Usable 22.50") |
Height | 14.21" |
Weight | 41.00 lbs. |
Shipping Dimensions | 27" L x 27" W x 18" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Medium Texture Black |
UPC | 879447001778 |
Warranty | 5-Year Limited Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
6U LINIER Fixed Wall Mount Cabinet - Glass Door | 1 |
Hardware Included | 1 |
Set of Cage Nut Style Mounting Rails | 1 |
10-32 Rack Screws | 24 |
10-32 Cage Nuts | 24 |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 6U LINIER® Fixed Wall Mount Cabinet - Glass Door (3140-3-001-06) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 6U LINIER® Fixed Wall Mount Cabinet - Glass Door (3140-3-001-06) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 6U LINIER® Fixed Wall Mount Cabinet - Glass Door (3140-3-001-06) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 460.38 KB |
Download |
Title 3140-3-001-06.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 7.20 MB |
Download |
