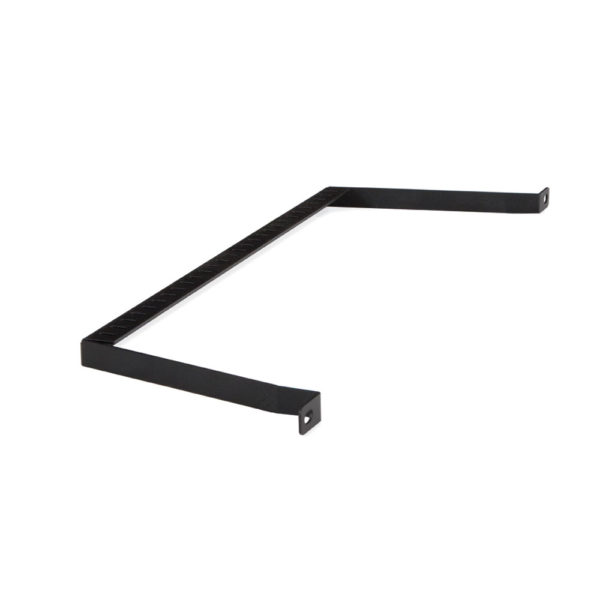

5" D Flanged Lacing Bar
5" D Flanged Lacing Bar
- 5" depth
- Features ½" slots to use with any ½" cable ties
- Uses less than one U space, or none at all if mounted in front of or behind equipment
- Versatile, horizontal mounting
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Mount the bar above, below, behind, or in front of your network device, vacating valuable U space for other network installation needs. The bar itself uses less than one U space, or none at all if mounted in front of or behind equipment.
The 5″ depth creates a better bend radius for cables and limits the risk of slower data speeds and broken cables.
Lacing slots are included on both flanges allowing you to route cables top to bottom or left to right. These lacing slots also nearly cover the entire length of the panel allowing convenient routing to both ends.
Designed to relieve cable stress and helps avoid pulling cables when routing them from one side of a rack to the other.
Simply secure cables to any of the numerous lacing slots by using the Hook and Loop Cable Ties.
| Part Number | 1903-1-102-00 |
| Width | 19" |
| Depth | 5" |
| Height | 0.56" |
| Weight | 1.20 lbs. |
| Shipping Dimensions | 20" L x 6" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447004267 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
| Item | Quantity |
|---|---|
| 5" D Flanged Lacing Bar | 1 |
