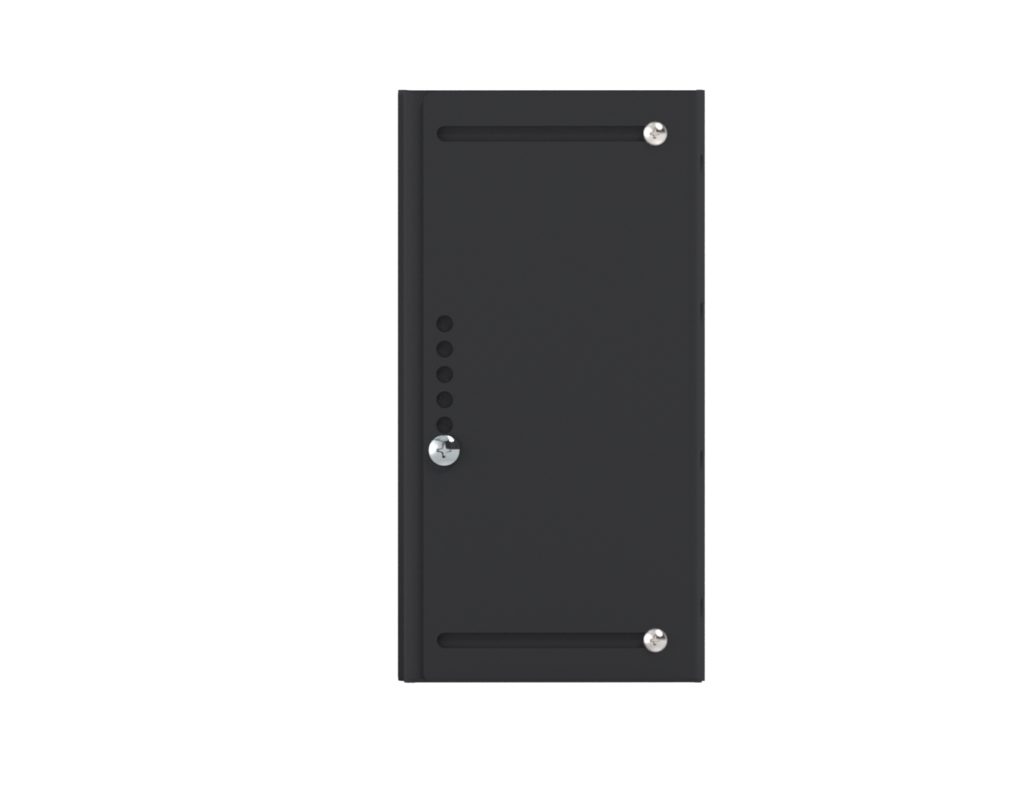

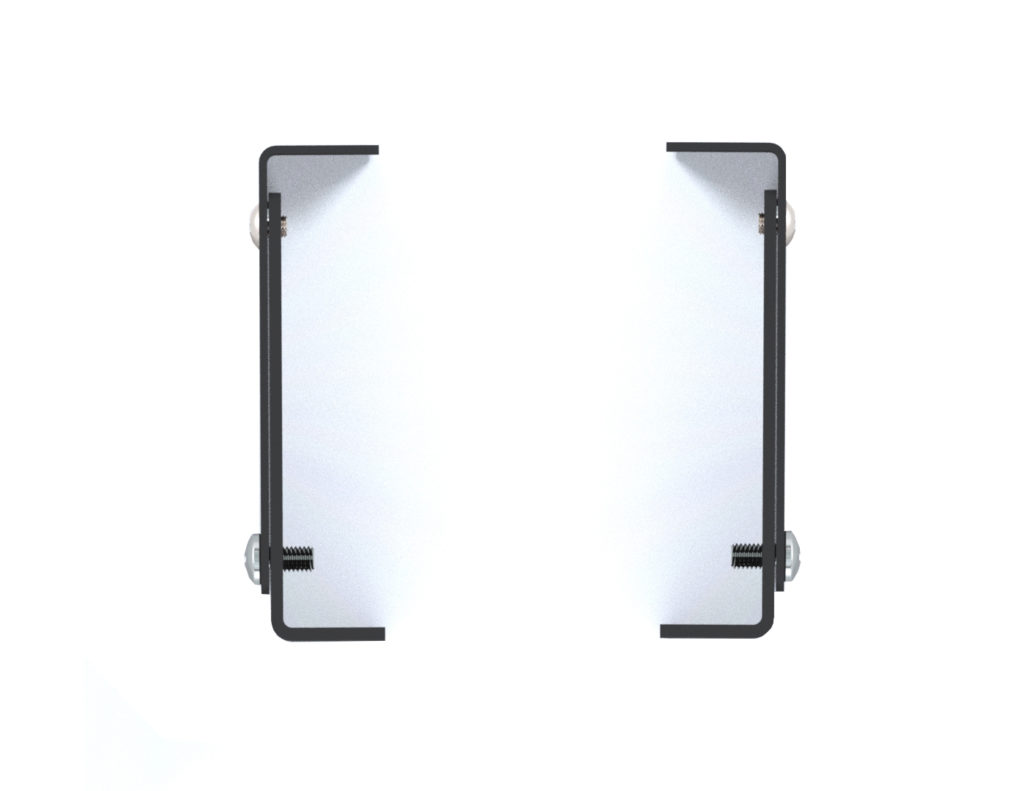

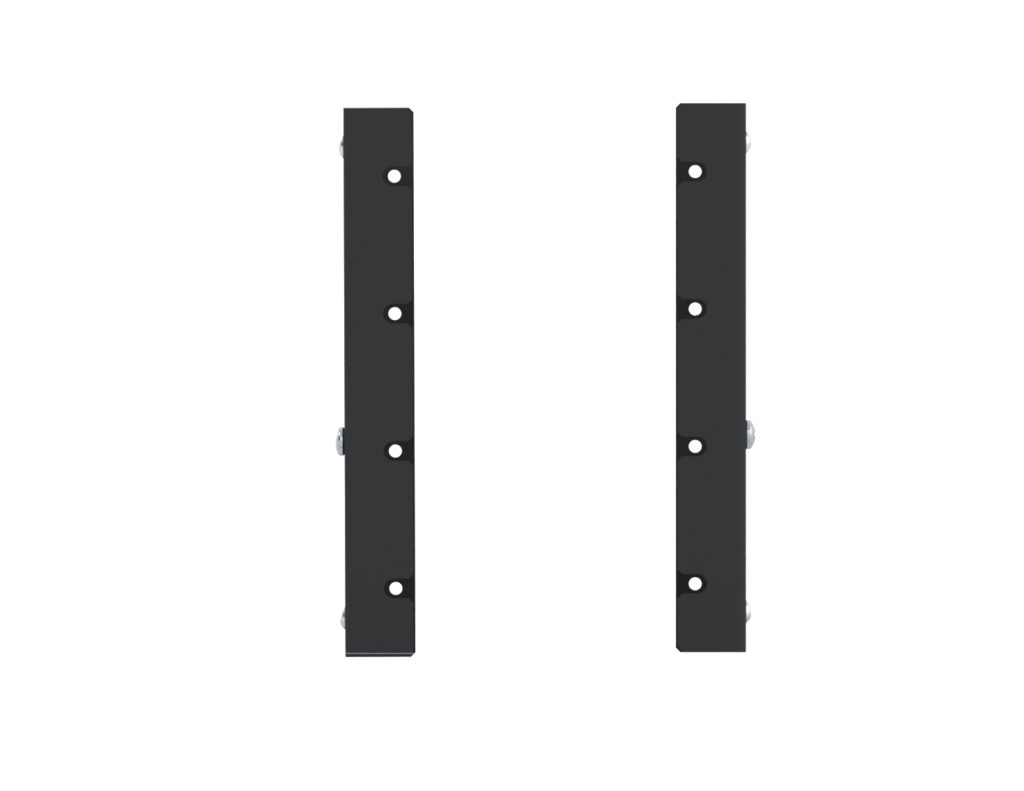

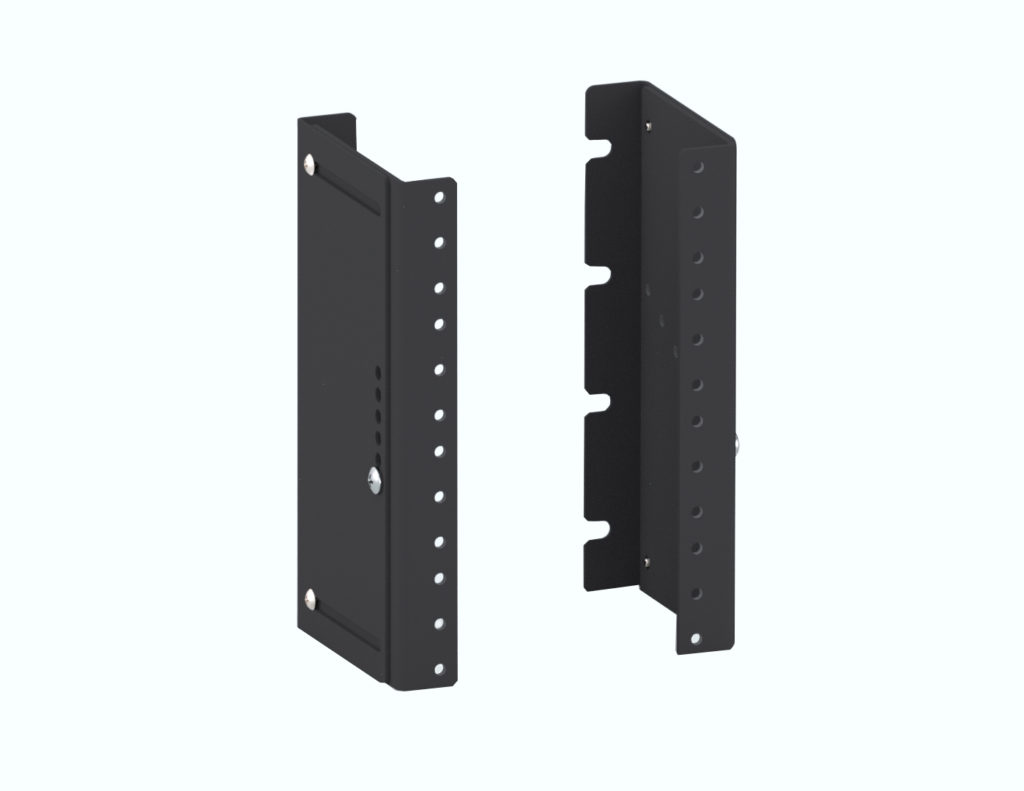

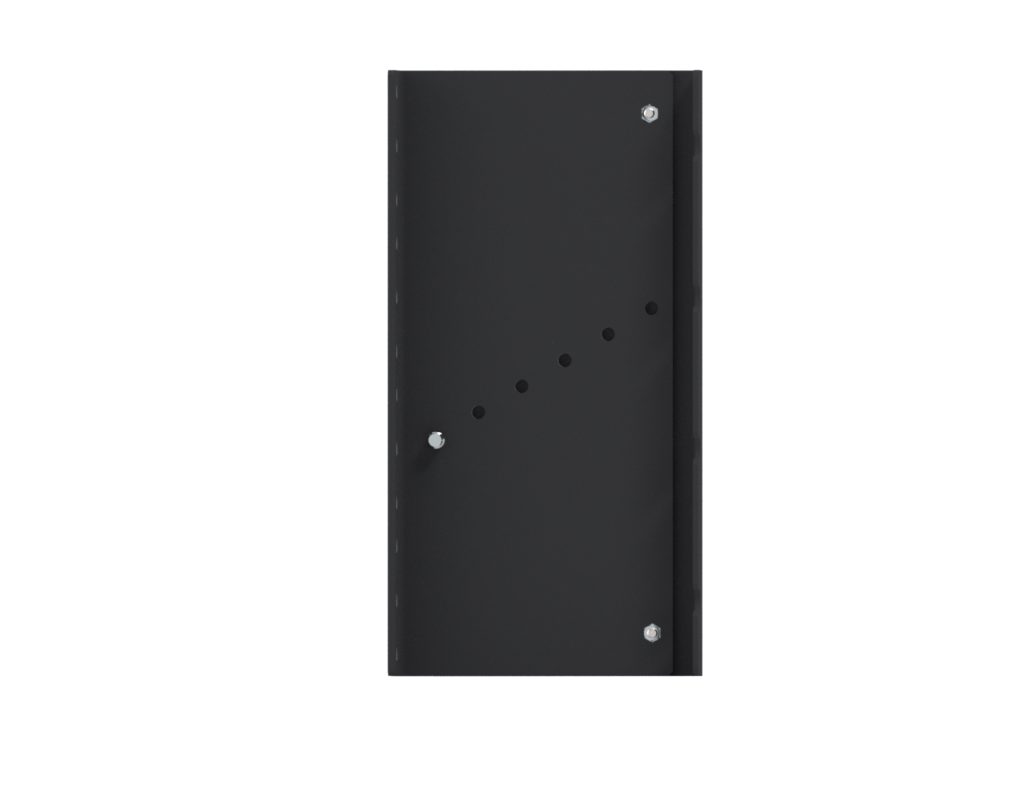

4U Adjustable Standoff Bracket
4U Adjustable Standoff Bracket
Made in the USA
Limited Lifetime Warranty
Description
The Kendall Howard 4U Adjustable Standoff Bracket is designed to solve the issue of your rack being too deep or too shallow. This Adjustable Standoff Bracket can be set to a minimum depth of 3.5” to a maximum or 6” allowing for more mounting options than ever before! Constructed from 16-gauge steel, these mounts are durable, strong, and dependable. Compatible with all EIA 19” and 23” wide server racks or wall mounts.
- Useable depth: 3.5 to 6
- Material: 16 gauge cold rolled steel
- 10-32 tapped mounting holes
- Color / finish: Black texture powder coat
- Limited lifetime warranty
- 19” EIA compliant
- Made in the USA
- Sold as a pair
- Rack mounting hardware sold separate
- 100 lb max load on four post racks
- 30 lb max load on two post racks
Features
Various Size Options
We offer three sizes of Adjustable Standoff Brackets (2U, 3U & 4U) to accommodate most components.
Adjustable Depth
With the adjustable depth feature, this offers a one size fits all solution for under or oversized components.
Two-Point Mounting
Perfect for use in two or four post racks, wall mount racks, and cabinets.
Specifications
| Part Number | 1924-3-001-04 |
| Width | 1" |
| Depth | 3.5" to 6" |
| Height | 7" |
| Weight | 3 lbs |
| Shipping Dimensions | 8" x 4" x 4" |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447006063 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 4U Adjustable Standoff Brackets | 2 |
| Assembly Parts Pack | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1924-3-001-04 Data Sheet |
Type Data Sheet |
Date 10/20 |
Version 1 |
File Size 146.26 KB |
Download |
Title 1924-3-001-04 Instructions |
Type Instructions |
Date 06/21 |
Version 1 |
File Size 740.32 KB |
Download |
Title 1924-3-001-04.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 313.74 KB |
Download |
Title Adjustable Standoff Bracket Cutsheet |
Type Cut Sheet |
Date 11/20 |
Version 1 |
File Size 668.02 KB |
Download |
