45U LINIER® Server Cabinet - Glass/Solid Doors - 24" Depth
45U LINIER® Server Cabinet - Glass/Solid Doors - 24" Depth
Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment.
Made in the USA
Limited Lifetime Warranty
Description
The 3101 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!
- Includes one locking tempered glass door and one locking solid door
- Removable locking side panels
- 24” depth (Also available with a 36” depth)
- Other sizes available: 22U, 27U, 37U, and 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)

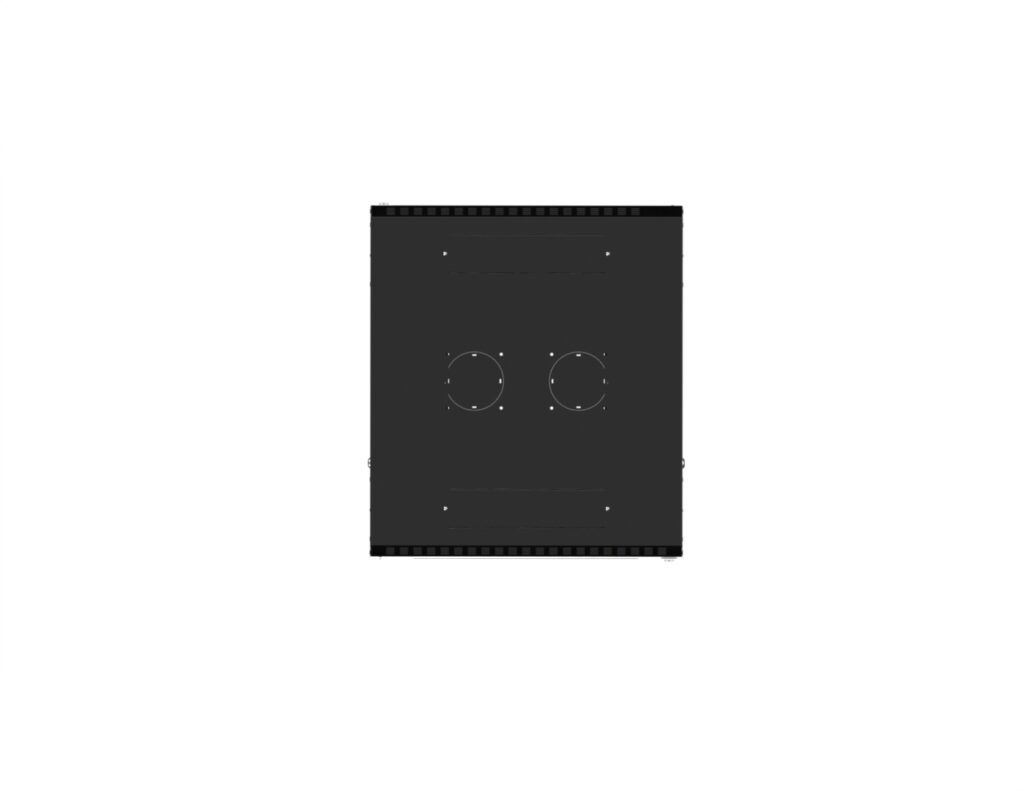

- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features
Easy Installation
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Locking, Removable Side Panels
For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Secured System
Both doors are equipped with locks to help protect and secure your valuable equipment.
Specifications
| Part Number | 3101-3-024-45 |
| Width | 24" |
| Depth | 27" (24" Usable) |
| Height | 86" with casters |
| Weight | 200 lbs. |
| Shipping Dimensions | 32" x 45" x 91" |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447006568 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 45U LINIER® Server Cabinet - Glass/Solid Doors - 24" Depth | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 45U LINIER® Server Cabinet – Glass/Solid Doors – 24″ Depth Instructions |
Type Instructions |
Date 02/24 |
Version 1 |
File Size |
Download |
Title 45U LINIER® Server Cabinet - Glass/Solid Doors - 24" Depth (3101-3-024-45) STEP |
Type 3D CAD |
Date 02/24 |
Version 1 |
File Size 6.69 MB |
Download |
Title 3101-3-024-45 DATA SHEET |
Type Data Sheet |
Date 02/24 |
Version 1 |
File Size 189.49 KB |
Download |
Title Full Size Linier® Server Cabinet Cut Sheet 24" |
Type Cut Sheet |
Date 11/23 |
Version 1 |
File Size 362.21 KB |
Download |
