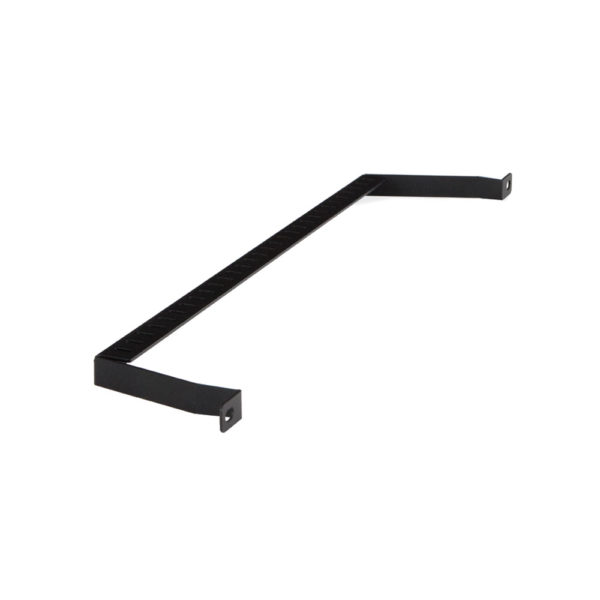

3" D Flanged Lacing Bar - 10 pack

Item #:1903-1-111-00

3" D Flanged Lacing Bar - 10 pack

Item #:1903-1-111-00
Designed to mount above, below, behind, or in front of your network devices, the 3" D Flanged Lacing Bar allows you to do more by using less space.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description
Save space and time while managing your network cables with the Kendall Howard 3” Depth Flanged Lacing Bar. Designed to mount above, below, behind, or in front of your network devices, the 3” Depth Flanged Lacing Bar allows you to do more by using less space. It provides much-needed stress relief for cable connections. Stress no more about crowded areas, unorganized cables, and strained connections with the Kendall Howard 3” Depth Flanged Lacing Bar.
  • Quantity: 10
  • 3" depth
  • Features ½" slots to use with any ½" cable ties
  • Uses less than one U space, or none at all if mounted in front of or behind equipment
  • Versatile, horizontal mounting
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Space Saver

Mount the bar above, below, behind, or in front of your network device, vacating valuable U space for other network installation needs. The bar itself uses less than one U space, or none at all if mounted in front of or behind equipment.

Promotes Better Bend Radius

The 3″ depth creates a better bend radius for cables and limits the risk of slower data speeds and broken cables.

Numerous Lacing Slots

Lacing slots are included on both flanges allowing you to route cables top to bottom or left to right. These lacing slots also nearly cover the entire length of the panel allowing convenient routing to both ends.

Strain Reliever

Designed to relieve cable stress and helps avoid pulling cables when routing them from one side of a rack to the other.

Easy to Use

Simply secure cables to any of the numerous lacing slots by using the Hook and Loop Cable Ties.

Specifications
Part Number 1903-1-111-00
Width 19"
Depth 3"
Height 0.56"
Weight 5.00 lbs.
Shipping Dimensions 20" L x 8" W x 8" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004281
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
3" D Flanged Lacing Bar
Resources
Title Type Date Version File Size
Title
3" D Flanged Lacing Bar - 10 pack (1903-1-111-00) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
66.49 KB		 Download
Title
3" D Flanged Lacing Bar - 10 pack (1903-1-111-00) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
286.49 KB		 Download
Title

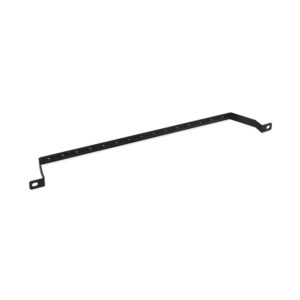

1903-1-111-00 (Single 3" D Flanged Lacing Bar 1903-1-101-00).step
Type
3D CAD
Date
08/20
Version
1
File Size
117.13 KB		 Download
Title
Flanged Lacing Bars Cut Sheet
Type
Cut Sheet
Date
12/21
Version
1
File Size
484.52 KB		 Download
