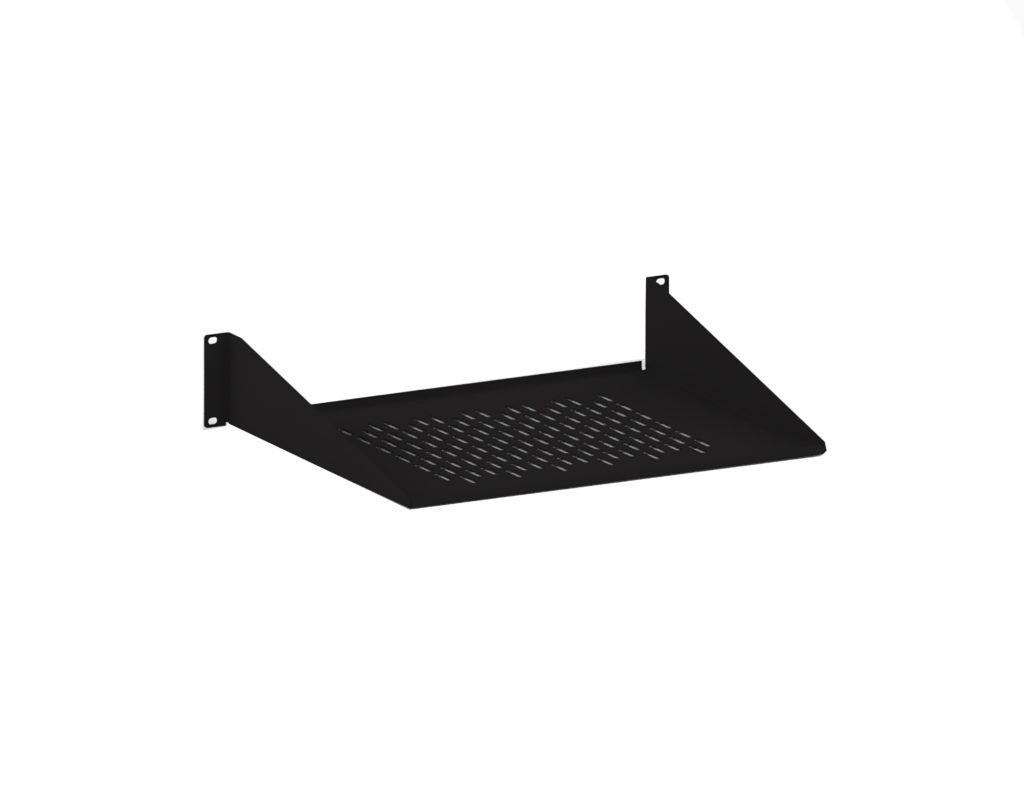

2U 14" Vented Eco Shelf
2U 14" Vented Eco Shelf
The 2U 14" Vented Eco Shelf is a medium duty shelf that helps to maintain proper air circulation in your racks and cabinets.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 2U 14 inch Vented Eco Shelf is a medium duty shelf that helps to maintain proper air circulation in your racks and cabinets. Rated to hold up to 50 lbs. , this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment. Venting pattern allows for maximum airflow.
- 14" depth
- 50 lb. weight capacity
- Venting pattern allows for maximum air flow
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Medium Duty
Constructed of a medium gauge steel providing a quality shelf to support your non-rack mount equipment at a cost conscious price point.
Easy to Install
Four mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
2-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Rounded Corners
Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers’ hands while handling.
Vented
Vented slots allow air to circulate through this shelf, which assists in keeping air flowing properly within your rack or cabinet.
Specifications
| Part Number | 1906-1-010-02 |
| Width | 19" |
| Depth | 14" |
| Height | 3.47" |
| Weight | 6.05 lbs. |
| Shipping Dimensions | 21" L x 17" W x 5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447002010 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 2U 14" Vented Component Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 2U 14" Vented Eco Shelf (1906-1-010-02) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 423.29 KB |
Download |
Title 2U 14" Vented Eco Shelf (1906-1-010-02) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 239.73 KB |
Download |
Title 1906-1-010-02.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 299.96 KB |
Download |
Title 1906-1-010-02 Data Sheet |
Type Data Sheet |
Date 11/20 |
Version 1 |
File Size 141.05 KB |
Download |
