2U 14" Component Shelf
2U 14" Component Shelf
This shelf is perfect for supporting non-rack mountable equipment such as tower computers, satellite boxes, monitors, and UPS's
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description

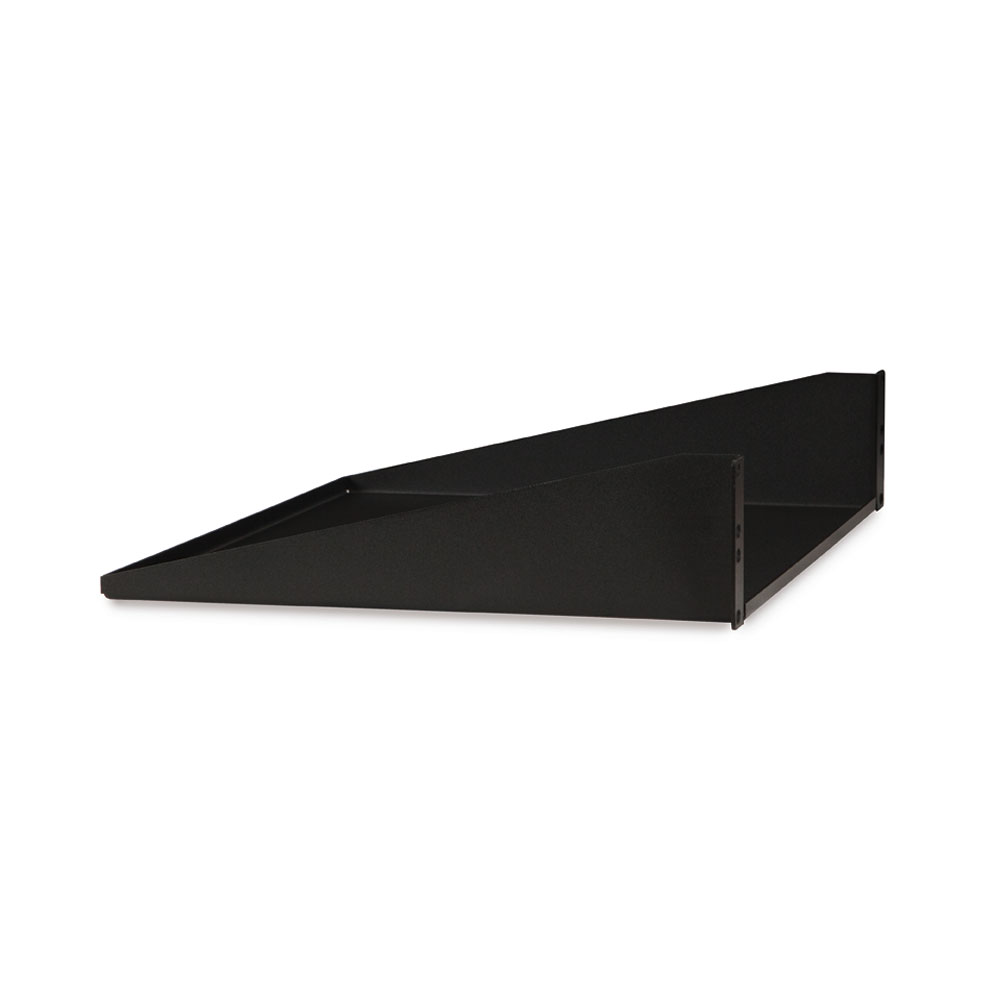

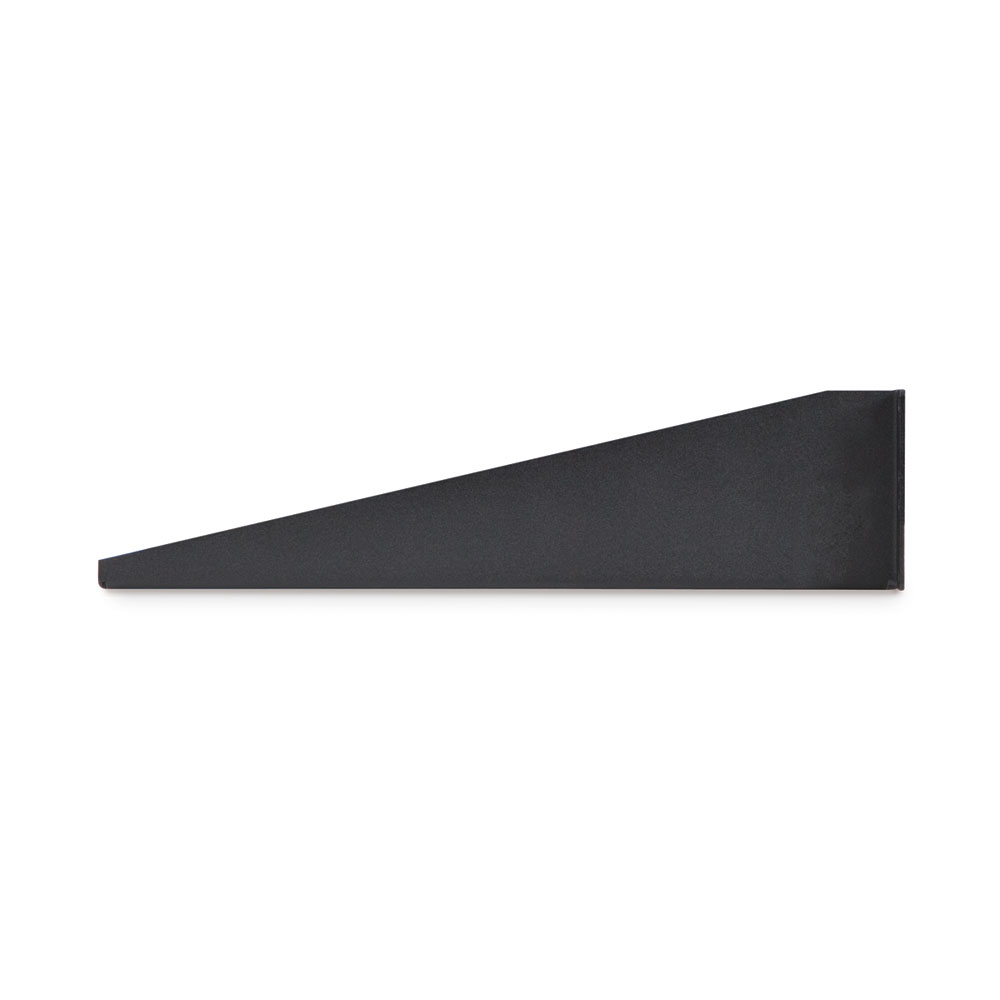

The Kendall Howard 2U 14" Component Shelf takes on a lot of weight for its size. Rated to hold up to 120 lbs., this shelf is perfect for supporting non-rack mountable equipment such as tower computers, satellite boxes, monitors, and UPS's
- 14" depth
- 19" EIA compliant
- 120 lb. weight capacity
- Made in the USA
- Limited Lifetime Warranty
Features
Heavy Duty
Heavy gauge steel construction features two flanges for added strength and rigidity. The textured black powder coat finish lends durability to the shelf, while helping to keep it free of scratches.
Easy to Install
Each U space features four mounting holes. These mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
2-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Rounded Corners
Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers’ hands while handling.
Specifications
| Part Number | 1906-1-002-02 |
| Width | 19" |
| Depth | 14" |
| Height | 3.47" |
| Weight | 9.00 lbs. |
| Shipping Dimensions | 22" L x 17" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000245 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 2U 14" Component Shelf |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 2U 14" Component Shelf (1906-1-002-02) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 1.12 MB |
Download |
Title 2U 14" Component Shelf (1906-1-002-02) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 63.08 KB |
Download |
Title 2U 14" Component Shelf (1906-1-002-02) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 239.73 KB |
Download |
Title 1906-1-002-02.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 56.09 KB |
Download |
