22U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped

Item #:3150-3-002-22

22U LINIER® Wall Mount Vertical Rail Kit - 10-32 Tapped

Item #:3150-3-002-22
The LINIER® 22U Wall Mount Vertical Rail Kit can be installed in either the LINIER® Fixed or Swing-Out Wall Mount Cabinets to provide a 10-32 tapped rail solution.
Made in the USA
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description
The LINIER® 22U Wall Mount Vertical Rail Kit can be installed in either the LINIER® Fixed or Swing-Out Wall Mount Cabinets to provide a 10-32 tapped rail solution. This tapped rail kit can replace the cage nut style rails that are included with the LINIER® Fixed and Swing-Out Cabinets for installers who prefer a tapped rail mounting solution.
  • Fully adjustable
  • Includes two 22U 10-32 tapped rails
  • Can be used with the LINIER® 22U Fixed or 22U Swing-Out Wall Mount Cabinet
  • Installation hardware included
  • Made in the USA
  • 5-Year Limited Warranty
Features
10-32 Tapped Rail Kit

Many installers enjoy the convenience of pre-tapped mounting rails. A tapped mounting rail features holes that contain internal threads. These threaded holes accept rack screws without the need for additional hardware such as cage nuts. This mounting style requires less hardware and less installation time.

Specifications
Part Number 3150-3-002-22
Width 0.912"
Depth 2"
Height 36.75"
Weight 6.00 lbs.
Shipping Dimensions 48" L x 4" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004069
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground

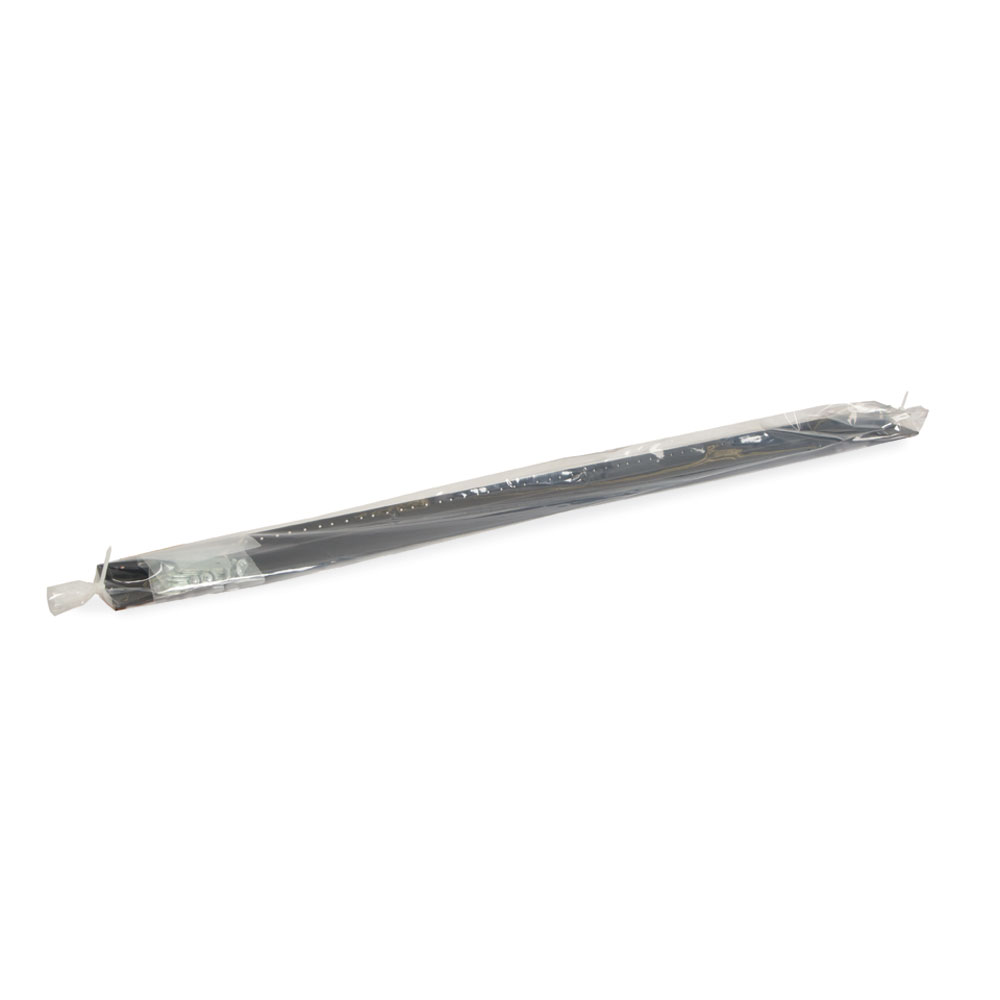

What's in the Box
Item Quantity

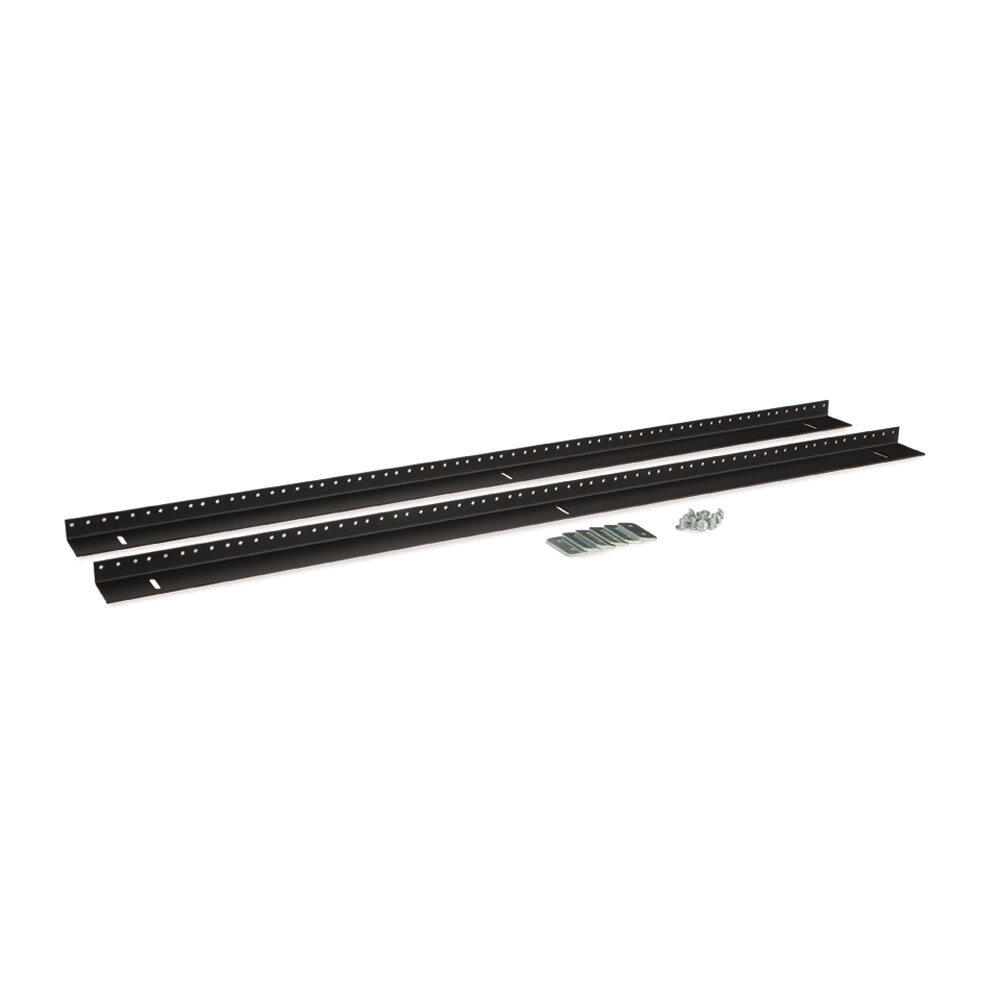

22U Vertical Rails 2
Assembly Parts Pack 1
