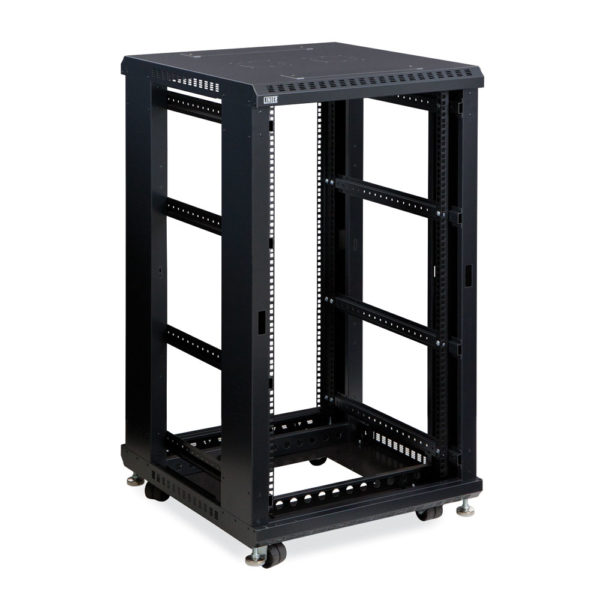

22U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth
22U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth
This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment.
Made in the USA
Certifications
19" EIA compliant
Description
Setting itself apart from the 3100 series, the LINIER® 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3170 LINIER® series is your answer.
- No doors or side panels
- 24" depth (Also available with a 36" depth)
- Other sizes available: 27U, 37U, 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- Made in the USA
- 5-Year Limited Warranty
Features
Open Frame Design
The open frame design allows for maximum air flow for your network equipment.
Easy Installation
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Cable and Fan Knockouts
There are numerous cable entry points on both the top and bottom of this open frame rack. There are also four large knockouts on the top of the frame to install fans, or for added cable pass through.
Specifications
| Part Number | 3170-3-024-22 |
| Width | 24" |
| Depth | 27.00" (Useable 24.00") |
| Height | 45.36" |
| Weight | 93.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 53" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447005080 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 22U LINIER Server Cabinet - No Doors/No Side Panels - 24" Depth | 1 |
| Pre-installed Casters and Levelers | 4 |
| Set of Adjustable Cage Nut Style Mounting Rails | 2 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 22U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth (3170-3-024-22) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 234.82 KB |
Download |
Title 22U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth (3170-3-024-22) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 273.70 KB |
Download |
Title 3170-3-024-22.STEP |
Type 3D CAD |
Date 12/19 |
Version 1 |
File Size 1.32 MB |
Download |
Title Full Size Linier® Server Cabinet Cut Sheet 24" |
Type Cut Sheet |
Date 11/23 |
Version 1 |
File Size 362.21 KB |
Download |
