22U LINIER® Server Cabinet - No Doors - 24" Depth
22U LINIER® Server Cabinet - No Doors - 24" Depth
Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options.
Made in the USA
Certifications
19" EIA compliant
Description
Unlike the 3100 series, the 3180 LINIER® Server Cabinets are built without doors making it easy to monitor and access the front and back of your network equipment. Side panels are included with this series to help enclose and protect your system. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. Both front and rear access to your equipment is made available with the 3180 LINIER® Server Cabinets.
- No doors
- 24" depth (Also available with a 36" depth)
- Other sizes available: 27U, 37U, 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)

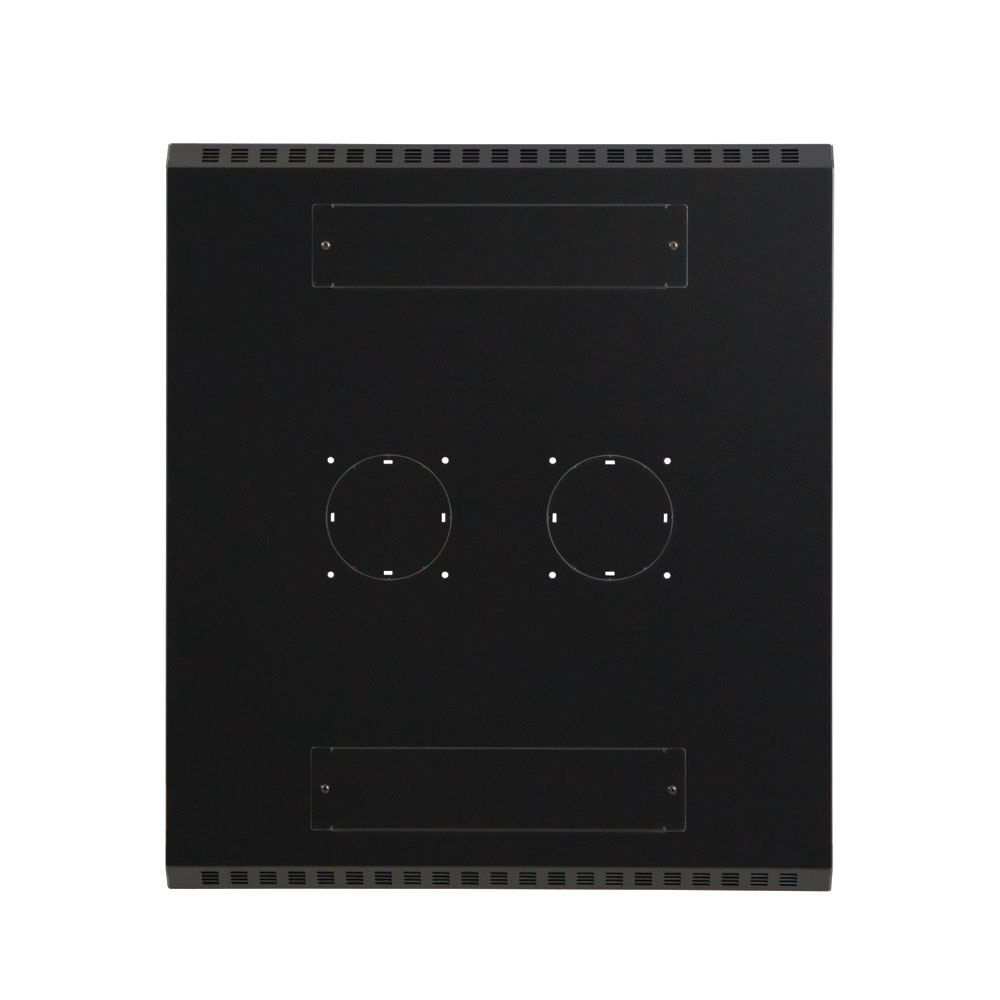

- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features

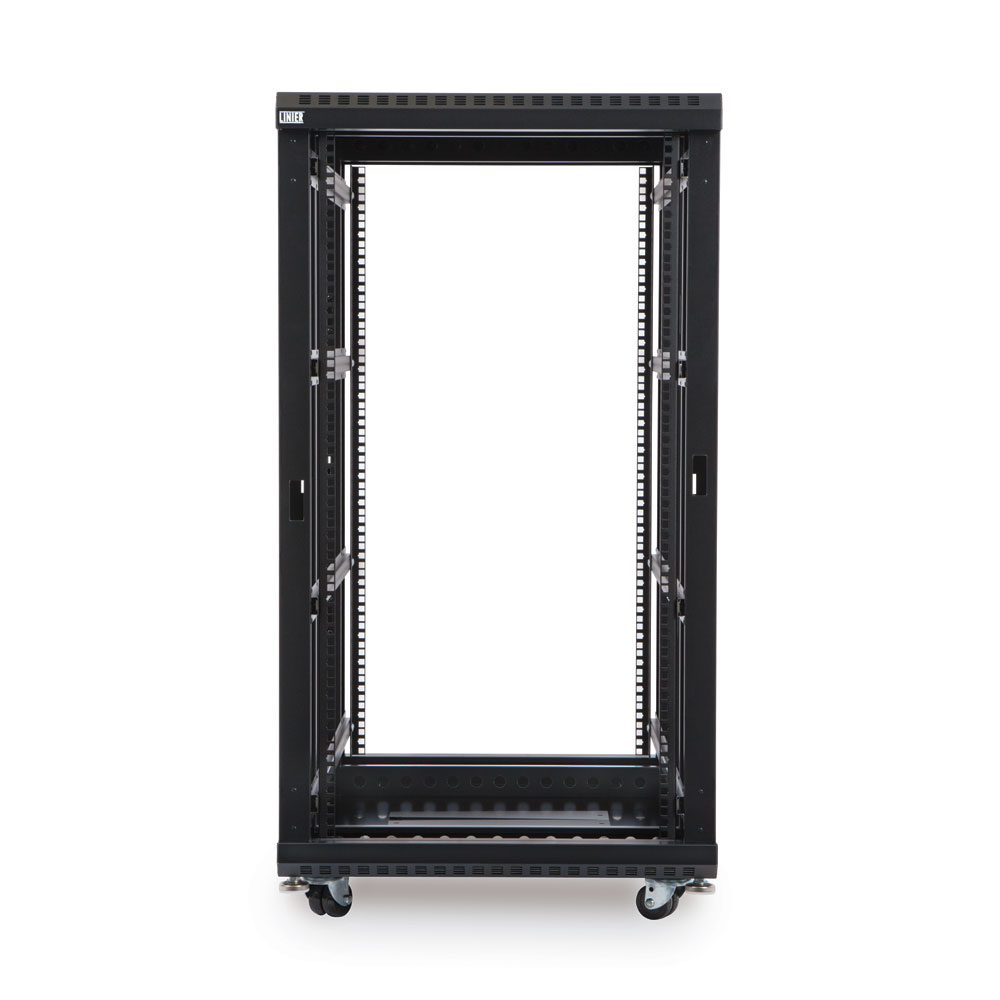

Open Frame Design
The open frame design allows for maximum air flow for your network equipment.
Easy Installation

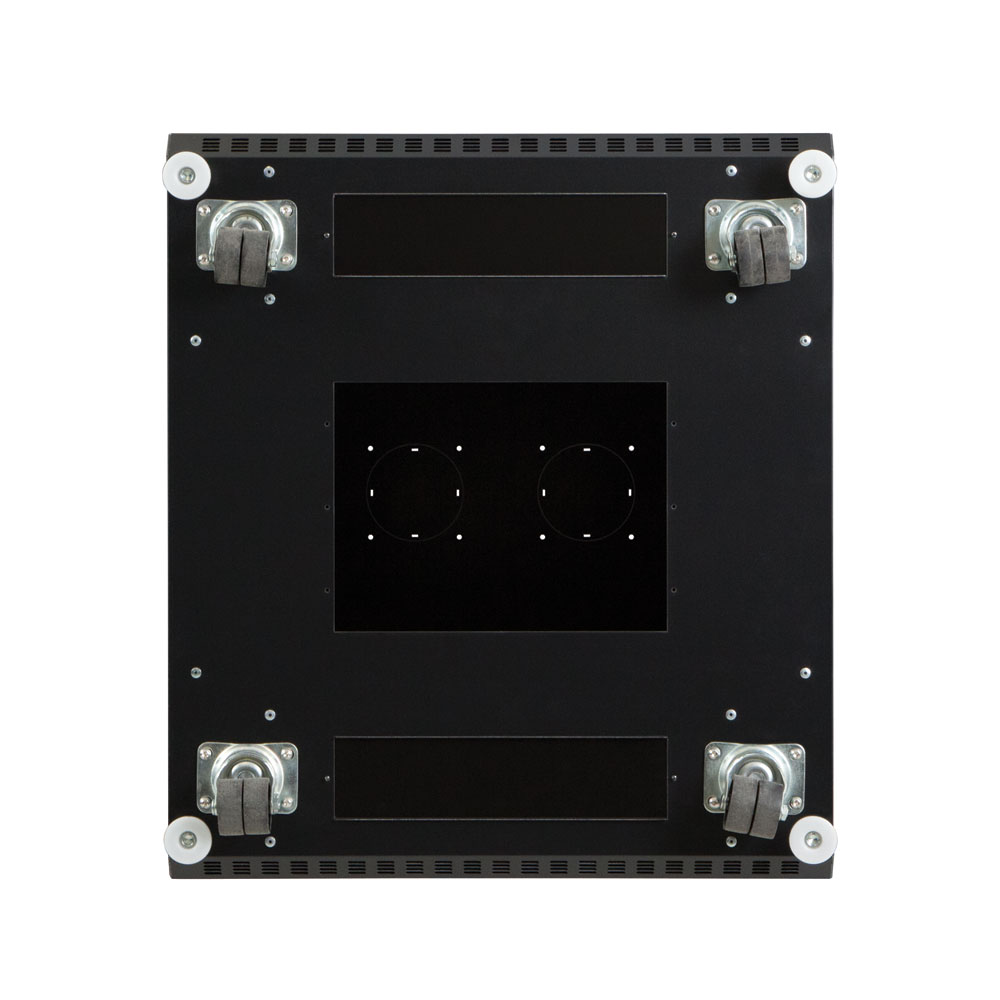

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

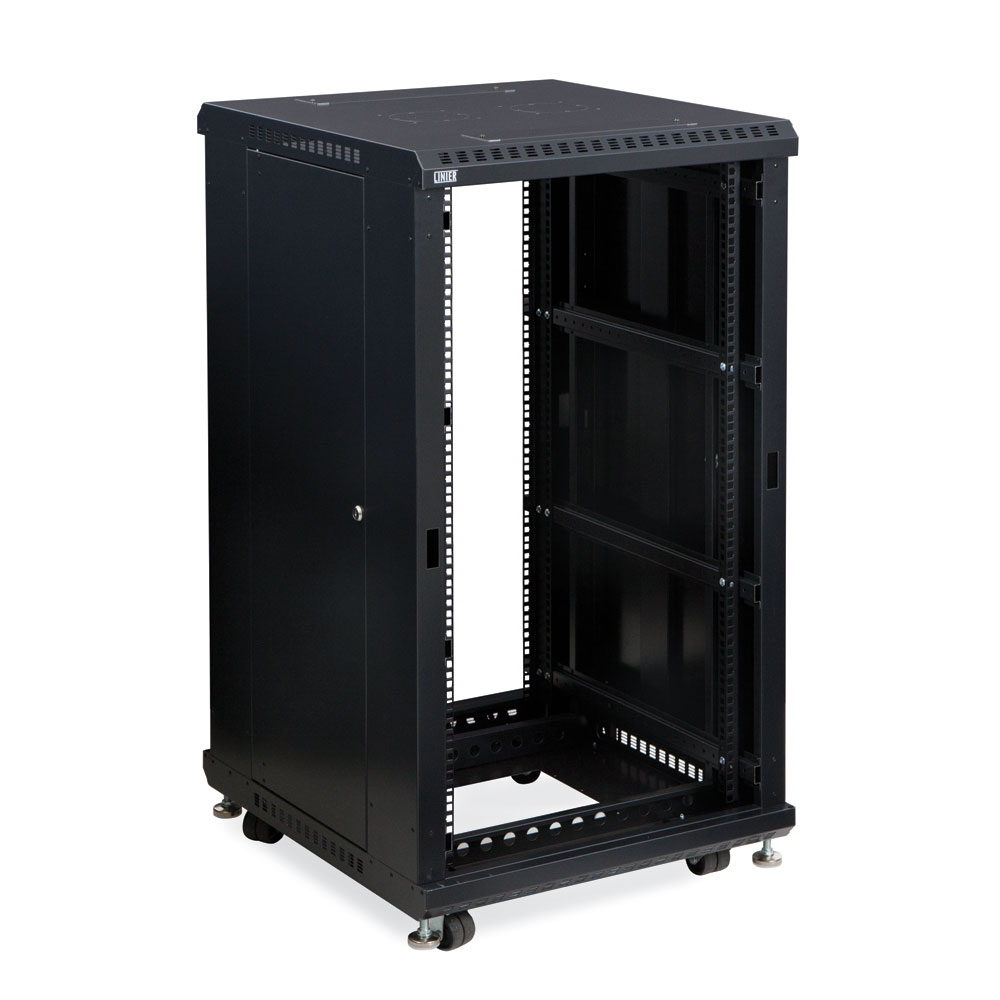

Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.
Specifications
| Part Number | 3180-3-024-22 |
| Width | 24" |
| Depth | 27.00" (Useable 24.00") |
| Height | 45.36" |
| Weight | 115.00 lbs. |

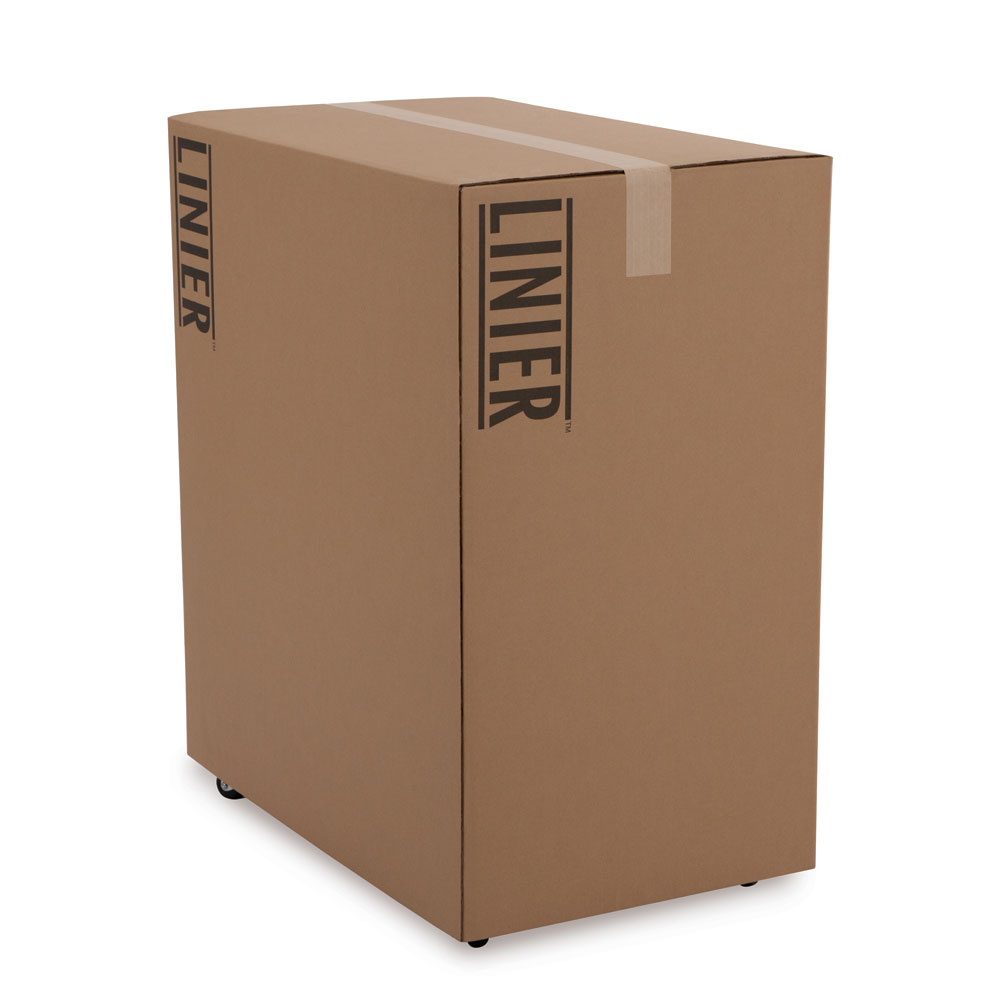

| Shipping Dimensions | 32" L x 45" W x 53" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447005127 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 22U LINIER Server Cabinet - No Doors - 24" Depth | 1 |
| Pre-installed Casters and Levelers | 4 |
| Set of Adjustable Cage Nut Style Mounting Rails | 2 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 22U LINIER® Server Cabinet - No Doors - 24" Depth (3180-3-024-22) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 239.82 KB |
Download |
Title 22U LINIER® Server Cabinet - No Doors - 24" Depth (3180-3-024-22) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 273.70 KB |
Download |
Title 3180-3-024-22.STEP |
Type 3D CAD |
Date 12/19 |
Version 1 |
File Size 1.41 MB |
Download |
Title Full Size Linier® Server Cabinet Cut Sheet 24" |
Type Cut Sheet |
Date 11/23 |
Version 1 |
File Size 362.21 KB |
Download |
