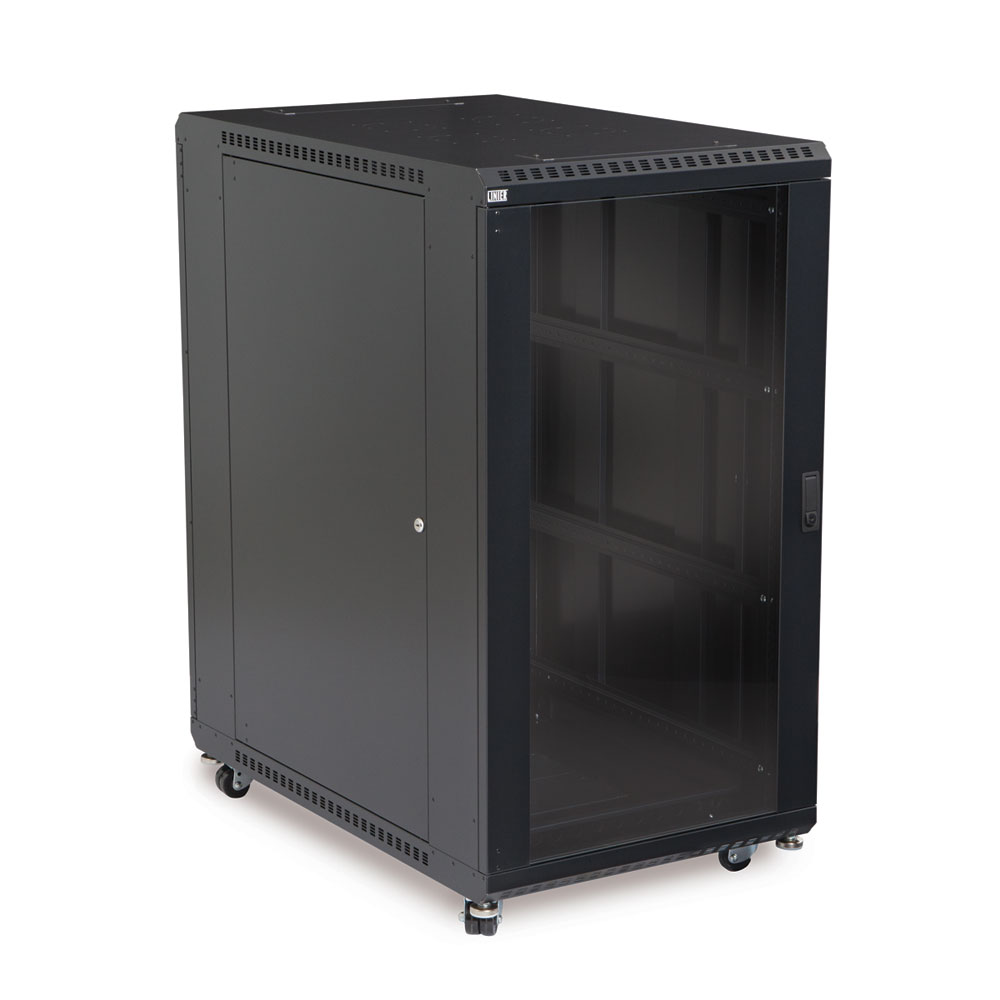

22U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth
22U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth
Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment.
Made in the USA
Certifications
19" EIA compliant
Description
The 3103 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!
- Includes two locking tempered glass doors
- Removable locking side panels
- 36" depth (Also available with a 24" depth)
- Other sizes available: 27U, 37U, 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features
Easy Installation
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels

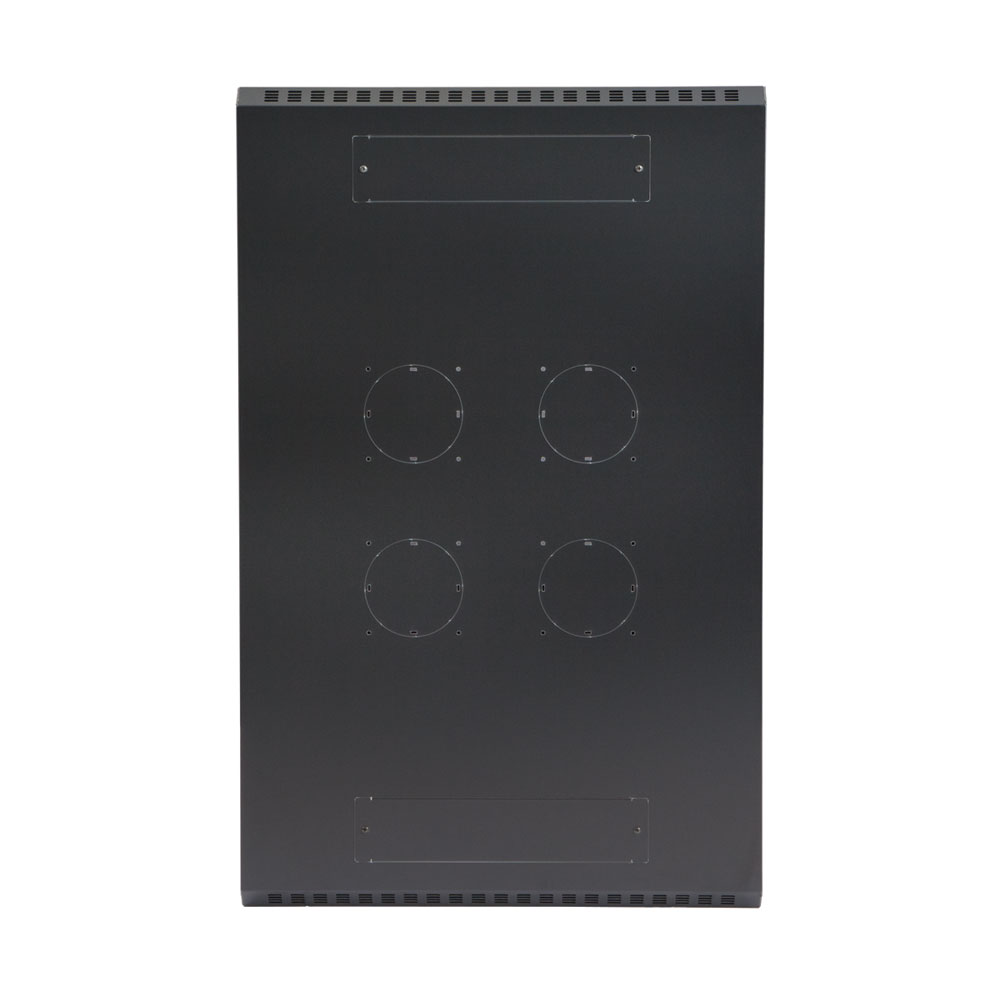

The top of the server cabinet includes removable laser knockouts for cable access and added versatility.

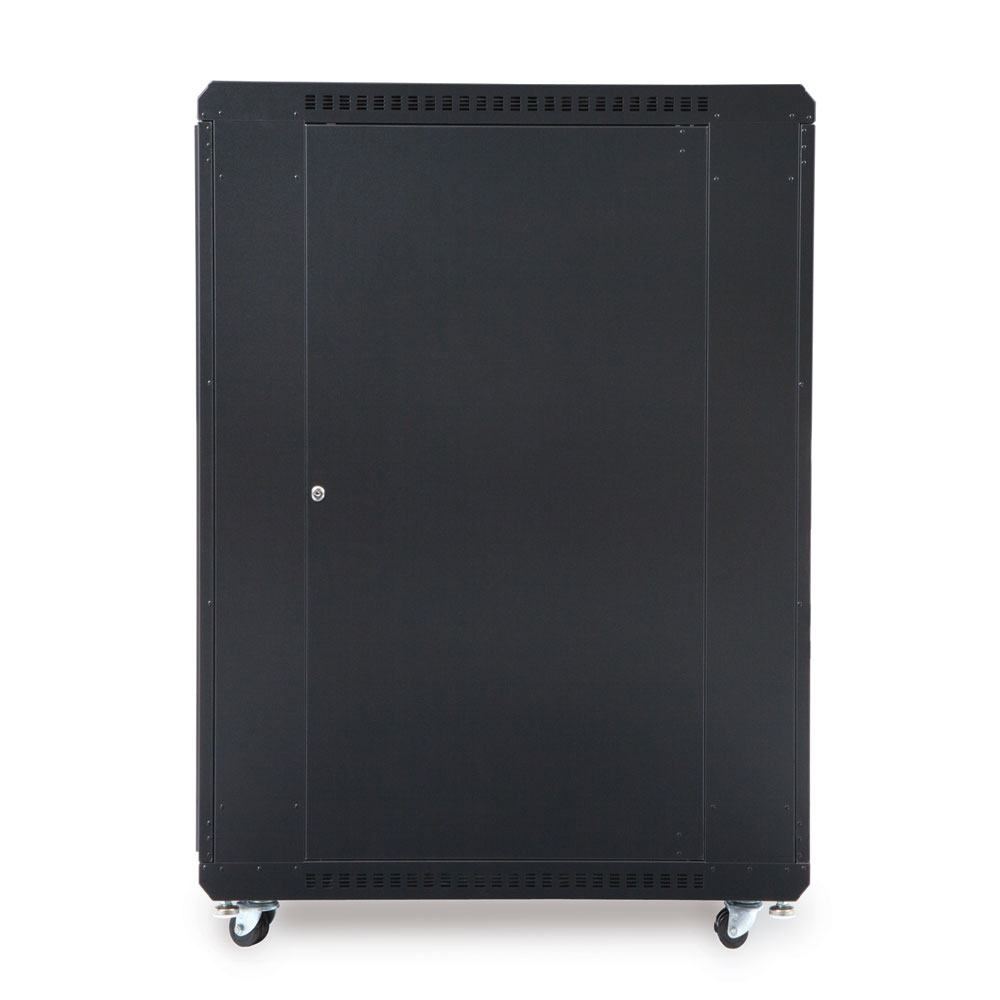

Locking, Removable Side Panels
For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.
Secured System
Both doors are equipped with locks to help protect and secure your valuable equipment.

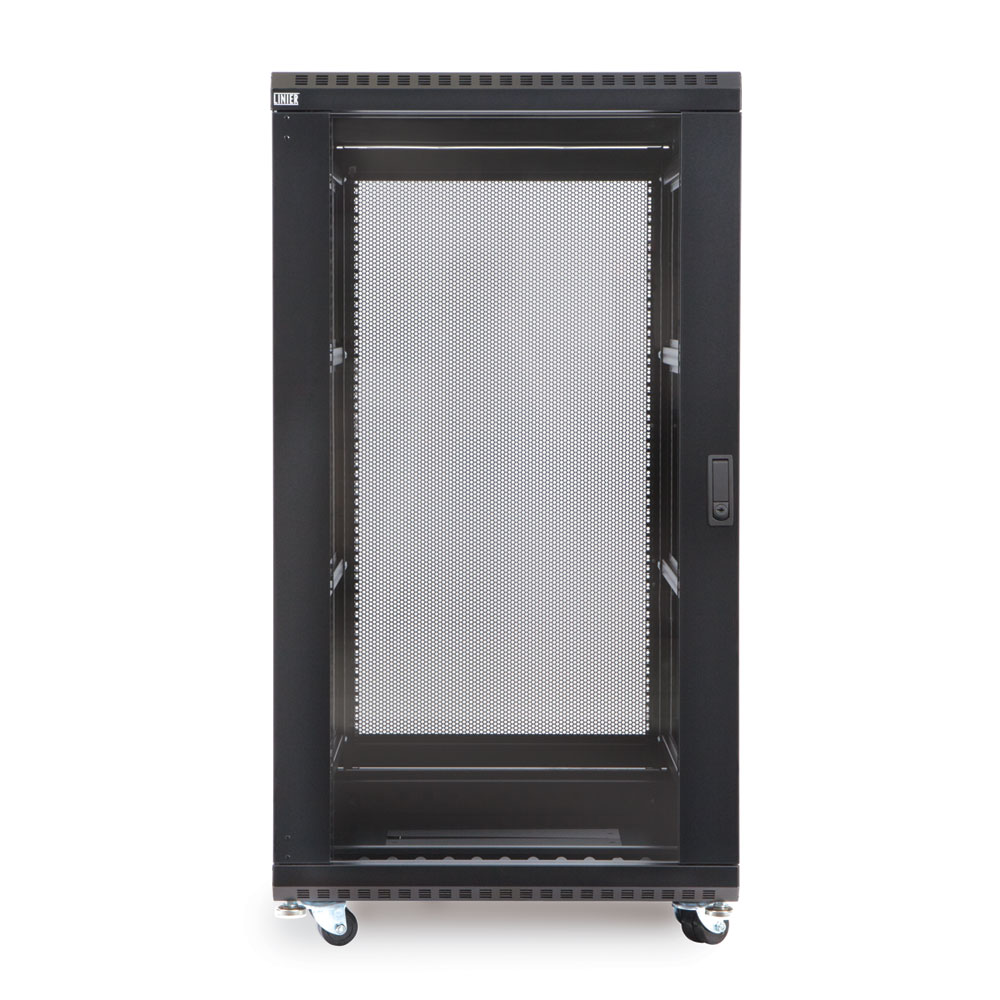

Locking Tempered Glass Doors
The locking tempered glass doors allow installers to easily access and view their network equipment.
Specifications
| Part Number | 3103-3-001-22 |
| Width | 24" |
| Depth | 37.72" (Useable 36.00") |
| Height | 45.50" |
| Weight | 159.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 53" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447004441 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 22U LINIER Server Cabinet - Glass/Doors - 36" Depth |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 22U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth (3103-3-001-22) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 217.01 KB |
Download |
Title 22U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth (3103-3-001-22) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 273.70 KB |
Download |
Title 3103-3-001-22.STEP |
Type 3D CAD |
Date 12/19 |
Version 1 |
File Size 3.28 MB |
Download |
Title Full Size Linier® Server Cabinet Cut Sheet 36" |
Type Cut Sheet |
Date 02/24 |
Version 1 |
File Size 293.83 KB |
Download |
