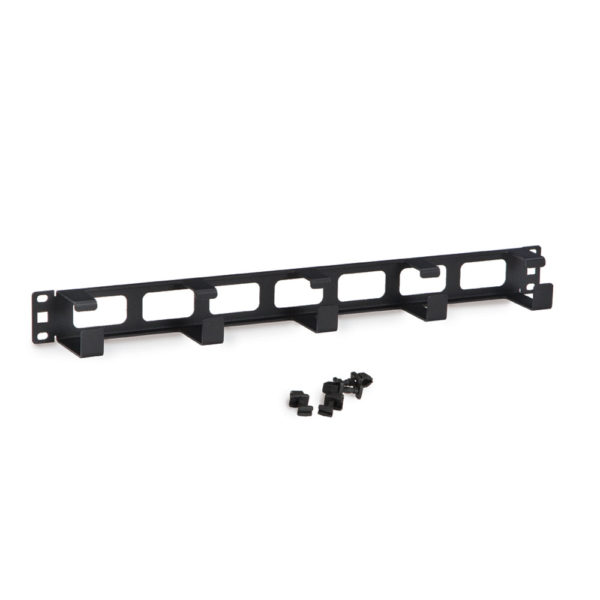

1U Tool-less 5X D-Ring Cable Manager
1U Tool-less 5X D-Ring Cable Manager
- Seven cable routing slots
- Five 2.25" x 1.75" D-rings
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty

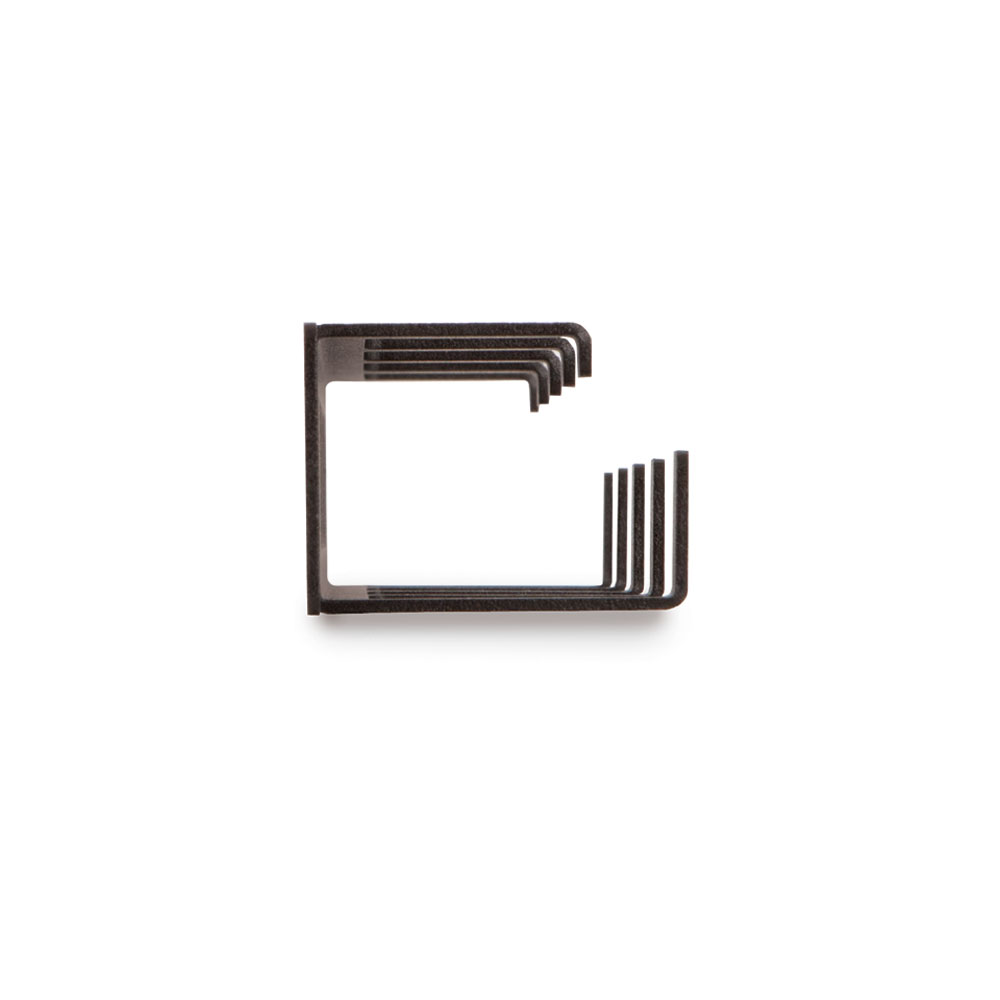

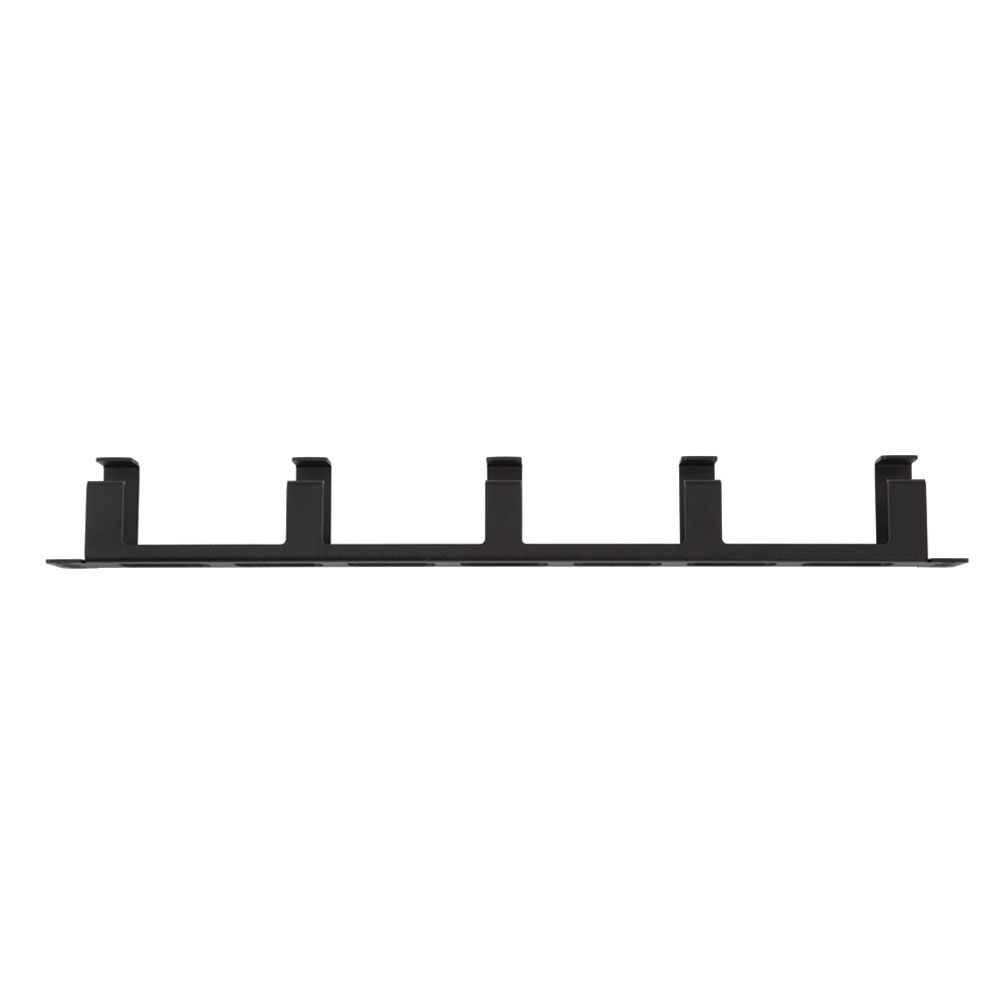

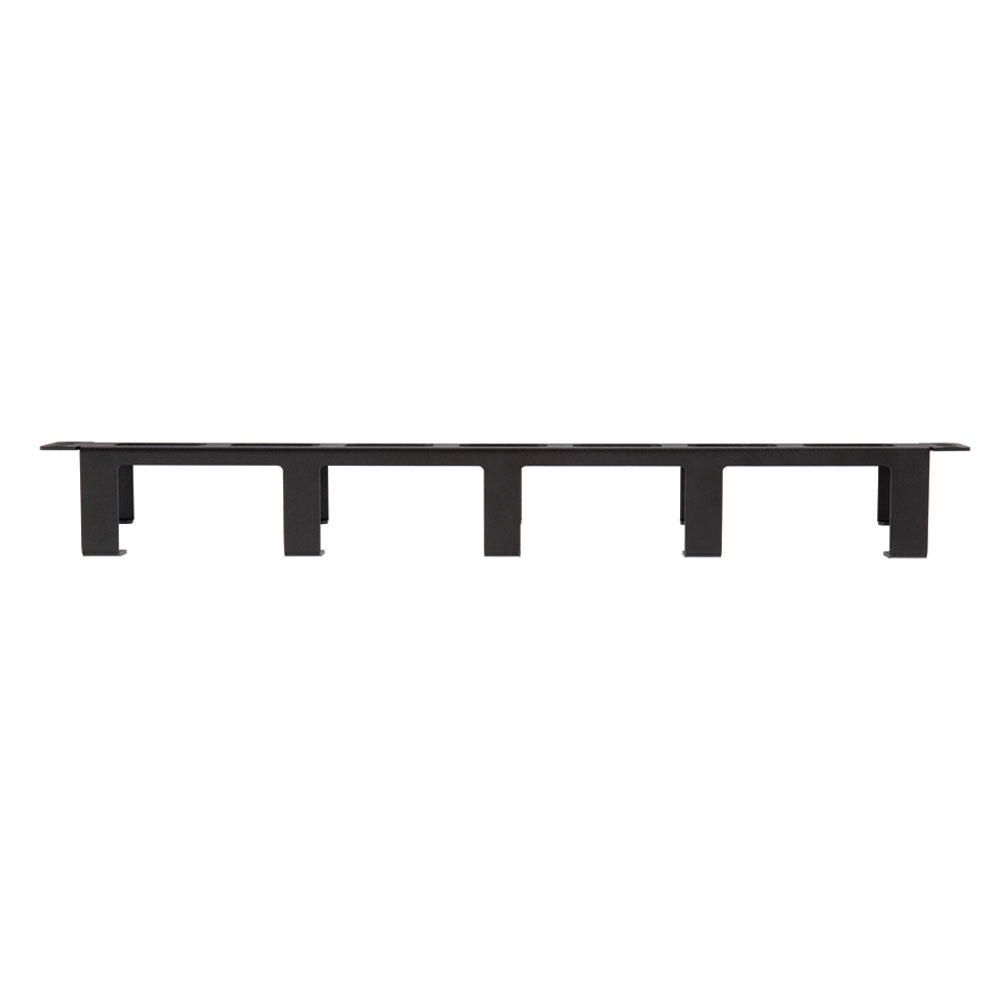

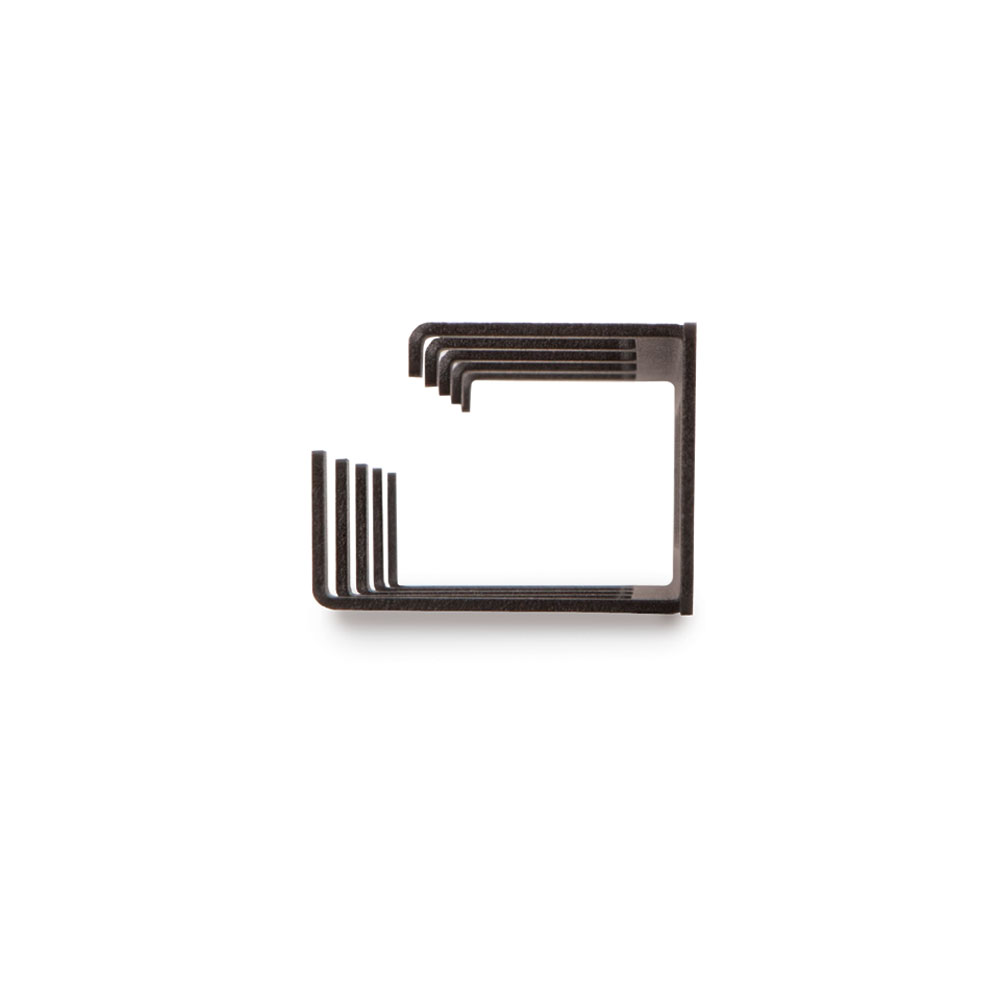

The 2.25″ x 1.75″ open D-rings provide a large supported area to organize and route cable bundles in 2-post racks, wall mount racks, server racks, and more.

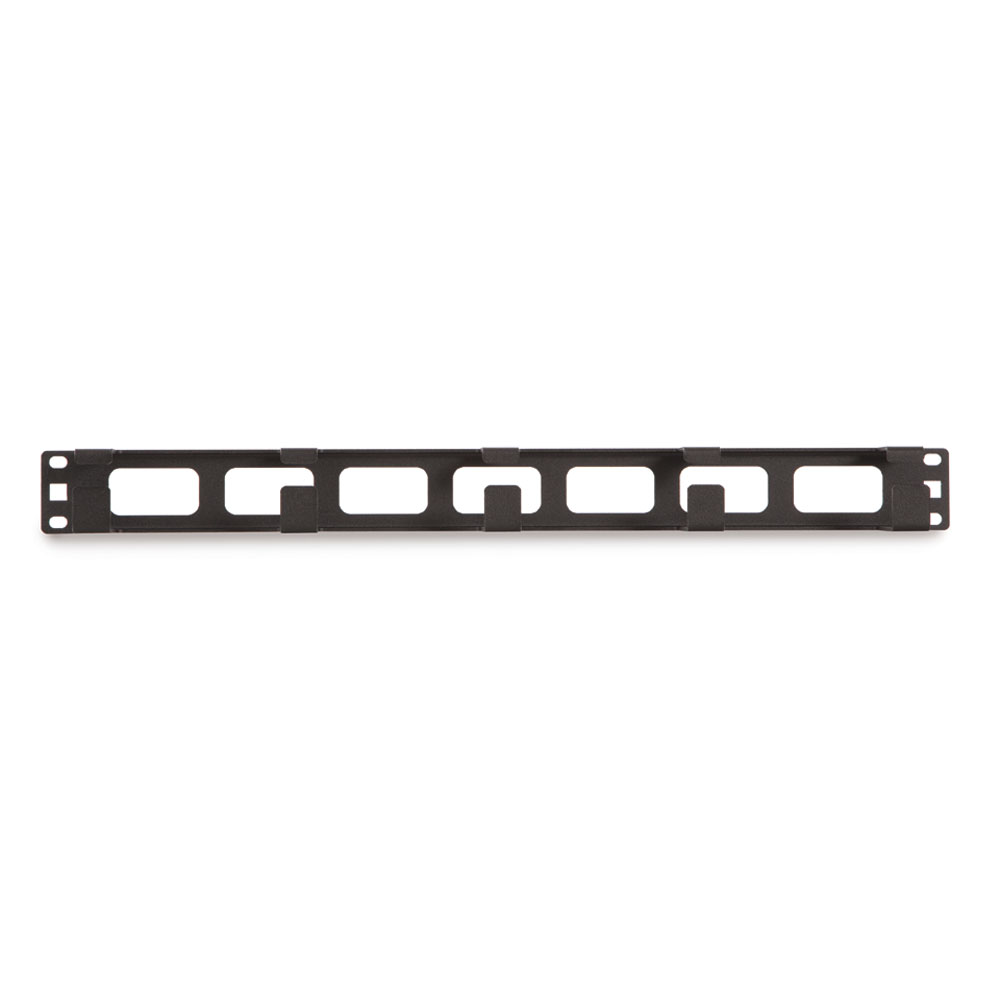

The seven large routing holes provide the support you need to run cables from the back of the rack to the front.
Cable manager can be mounted in two different positions, maximizing your cable management options. Face the D-rings toward the front of the rack to easily manage and support patch cables, or face them toward the back of the rack where the open design provides easy support of trunk cables.

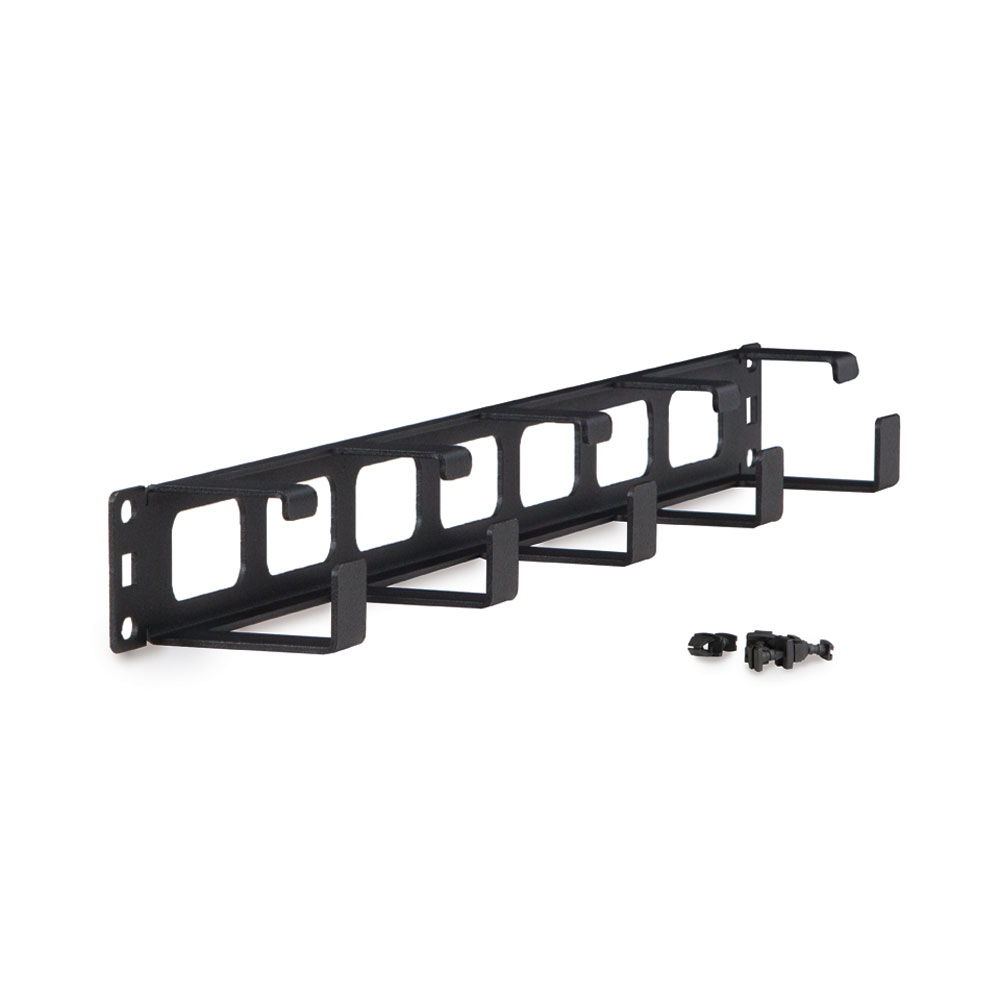

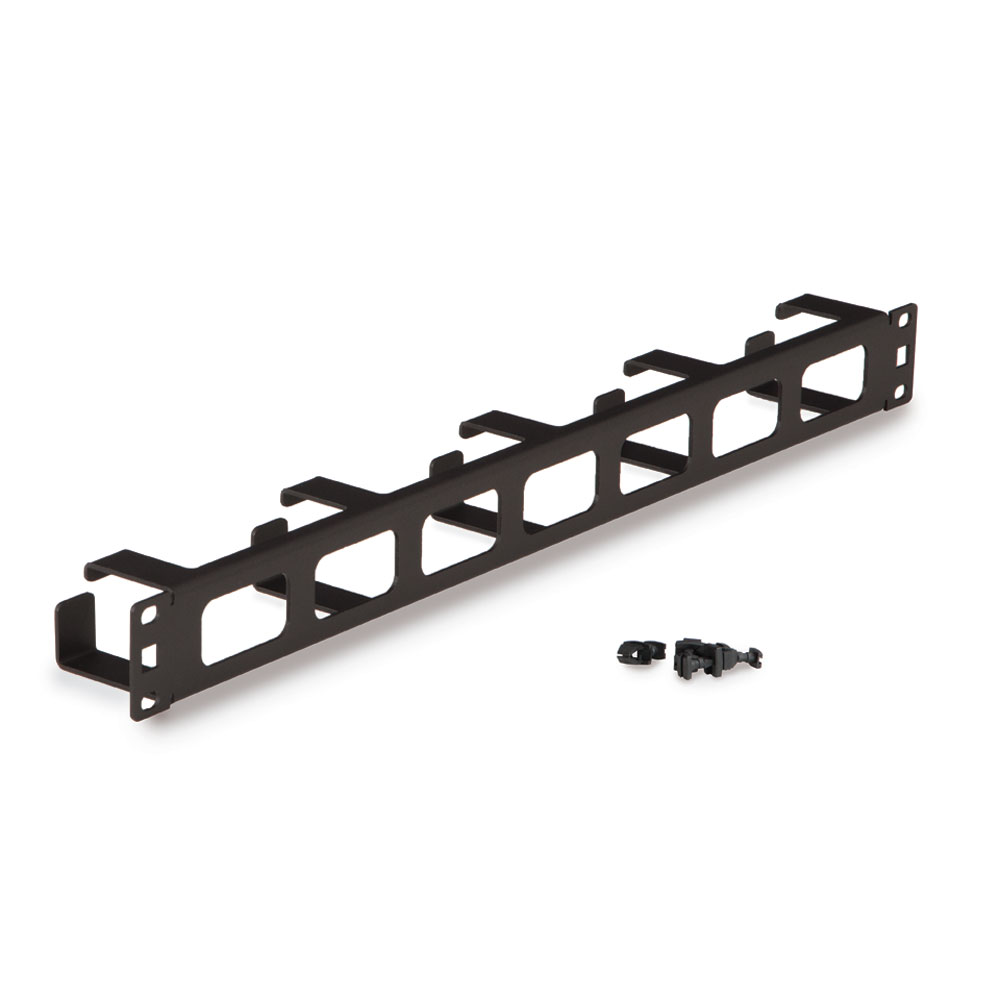

Included with the cable manager are tool-less clips that snap into any cage nut style rail while eliminating the need for hardware. Standard mounting holes can be used in conjunction with rack screws on tapped rails.
| Part Number | 1903-3-100-01 |
| Width | 19" |
| Depth | 2.26" |
| Height | 1.72" |
| Weight | 2.00 lbs. |
| Shipping Dimensions | 20" L x 6.5" W x 2" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447001990 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
| Item | Quantity |
|---|---|
| 1U 5X D-Ring Cable Manager | 1 |
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1U Tool-less 5X D-Ring Cable Manager (1903-3-100-01) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 547.10 KB |
Download |
Title 1U Tool-less 5X D-Ring Cable Manager (1903-3-100-01) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 65.91 KB |
Download |
Title 1U Tool-less 5X D-Ring Cable Manager (1903-3-100-01) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 313.69 KB |
Download |
Title 1903-3-100-01.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size |
Download |
