1U Cable Routing Blank

Item #:1902-1-001-01

1U Cable Routing Blank

Item #:1902-1-001-01
With this simple device you can conveniently route cables from the front to the back of the cabinet, while bringing organization to your cables and connections.
Made in the USA
Limited Lifetime Warranty
Add to List
Description Features Specifications What's in the Box Resources Related
Description

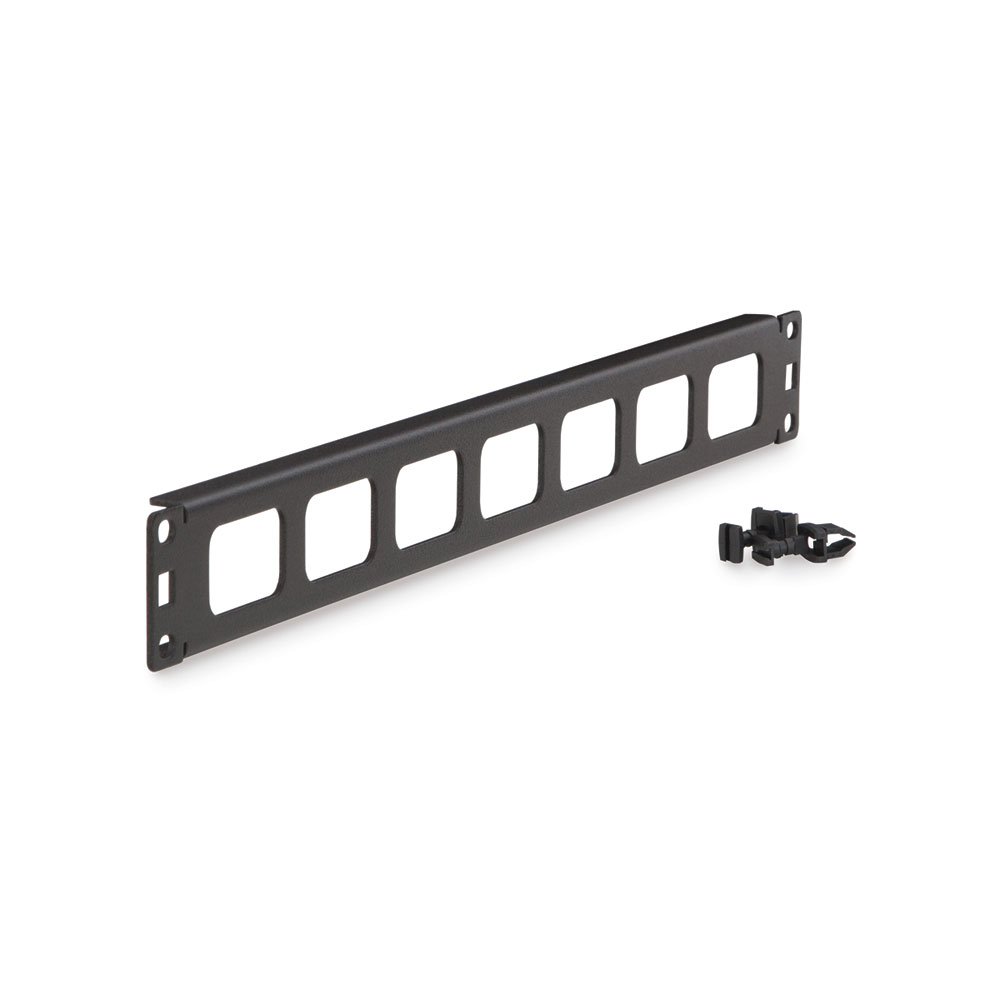

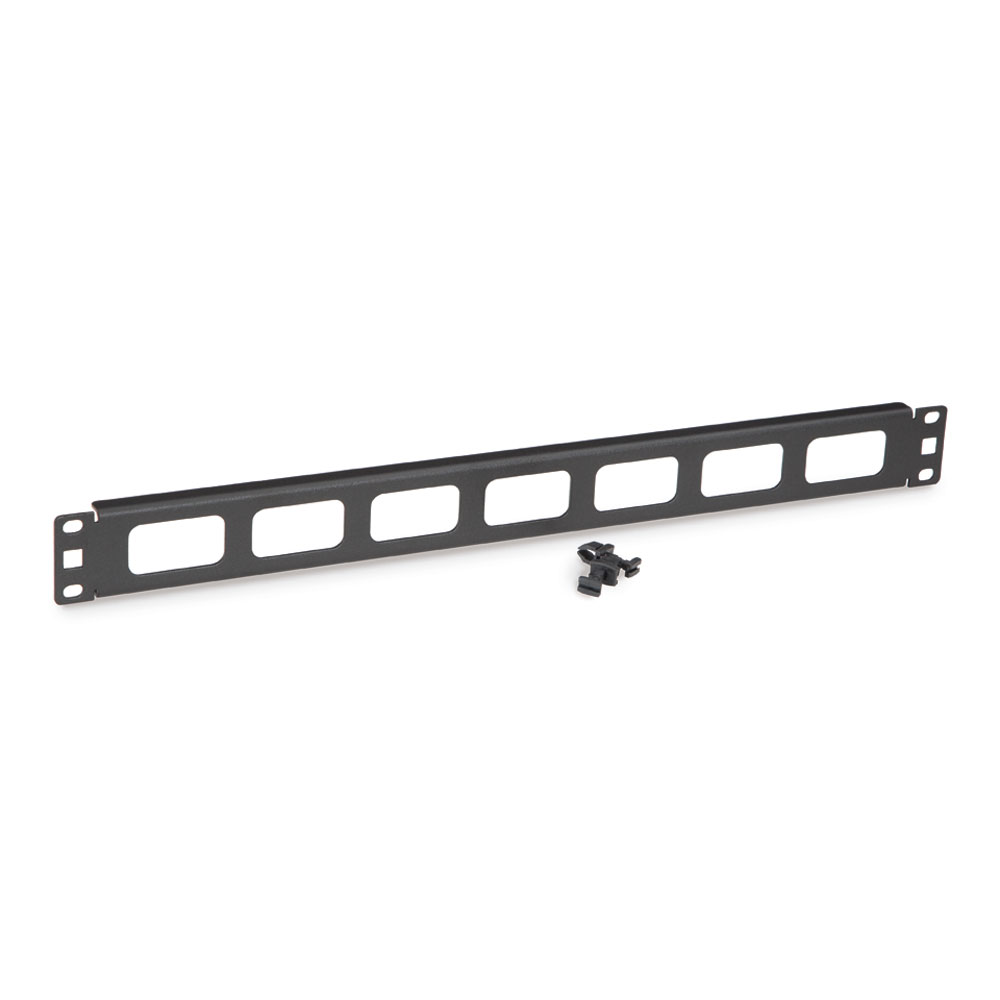

The Kendall Howard 1U Cable Routing Blank provides the perfect way to route cables within a rack. With this simple device you can conveniently route cables from the front to the back of the cabinet, while bringing organization to your cables and connections.
  • Low profile 1U design
  • Seven large cut outs
  • Black powder coat finish
  • Rounded corners
  • Made in the USA
  • Limited Lifetime Warranty
Features
Large Cable Cut Outs

Seven large open cut outs provide ample room for routing various cables such as copper, fiber optic, telecom, and power cables.

Numerous Routing Variations

Cable routing panel can be installed to safely direct cables from left to right or front to back. Easily route cables from patch panels, routers, and switches that are mounted in the front of the rack to servers or other components that require the cables to be connected in the rear of the rack.

Rounded Corners

Edges and cable cut outs all have rounded corners for safe handling and installation.

EIA Compliant

19″ EIA compliant routing panel can be installed in a wide variety of network/electronic solutions such as 2-post racks, 4-post racks, server enclosures, and wall mount racks and cabinets.

Tool-Less Mounting

For smaller cable bundle installations, the use of the included tool-less clips makes installation easy with universal cage nut style rails. For heavier cable bundles the use of rack screws and cage nuts are recommended.

Specifications
Part Number 1902-1-001-01
Width 19"
Depth 0.06"
Height 1.72"
Weight 1.50 lbs.
Shipping Dimensions 20" L x 6" W x 6" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447000184
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground

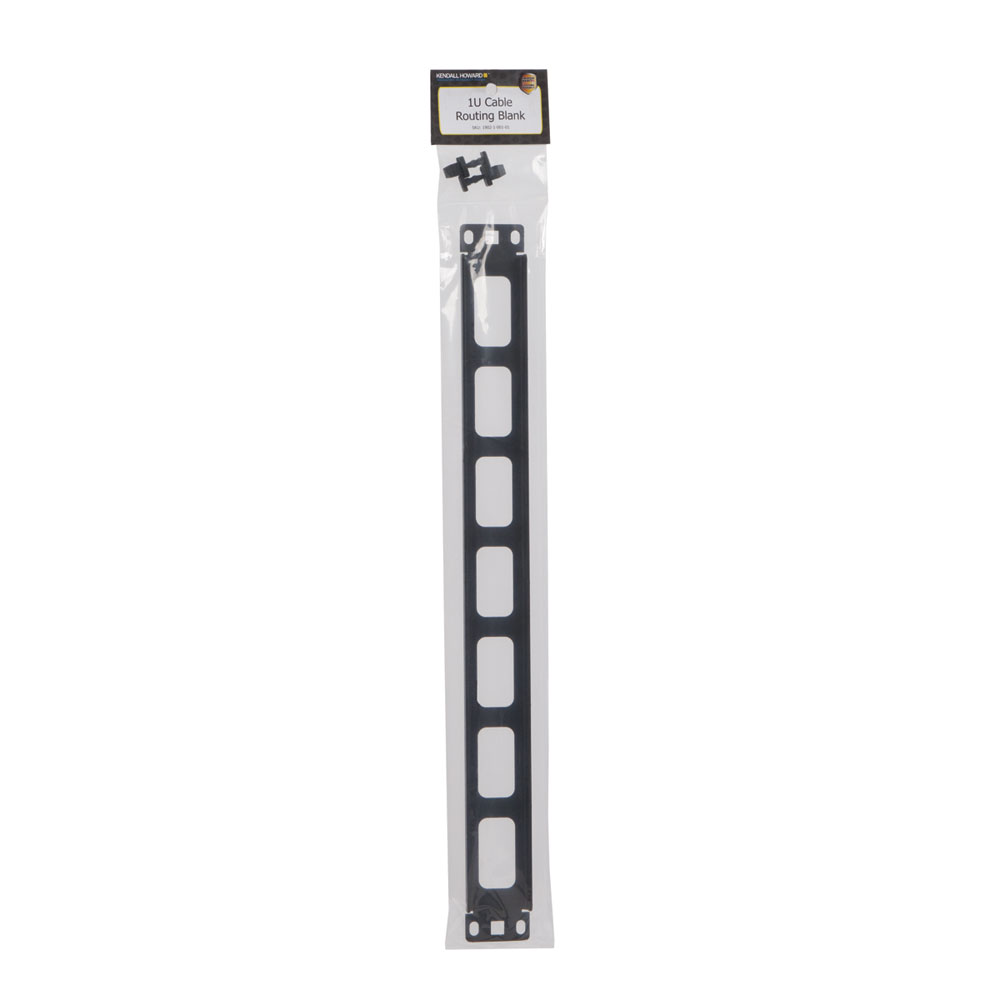

What's in the Box
Item Quantity
1U Cable Routing Blank 1
Tool-Less Fasteners 2
Resources
Title Type Date Version File Size
Title
1U Cable Routing Blank (1902-1-001-01) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
421.12 KB		 Download
Title
1U Cable Routing Blank (1902-1-001-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
64.99 KB		 Download
Title
1U Cable Routing Blank (1902-1-001-01) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
290.35 KB		 Download
Title
1902-1-001-01.STEP
Type
3D CAD
Date
12/19
Version
1
File Size
44.68 KB		 Download
