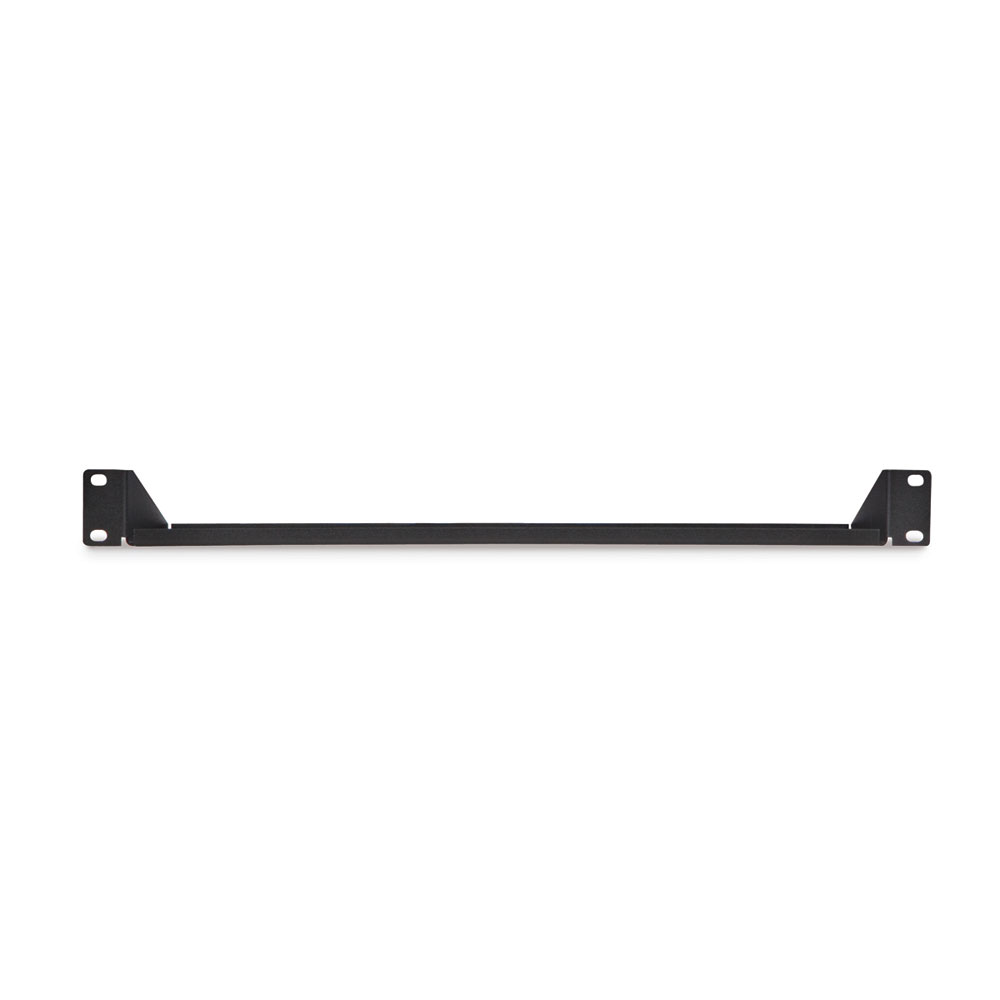

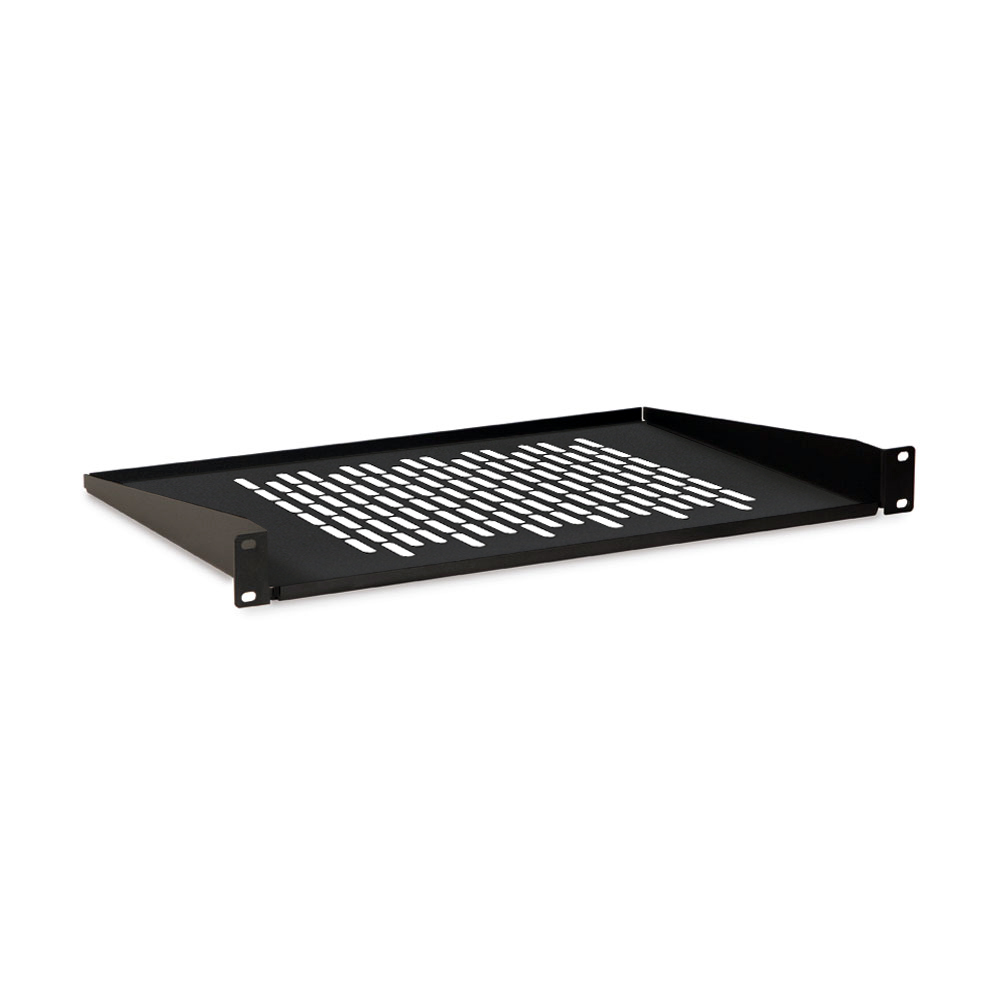

1U 12" Vented Component Shelf
1U 12" Vented Component Shelf
This tough little shelf is perfect for supporting non-rack mountable equipment such as routers, hubs, monitors, and UPS's.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 1U 12" Vented Component Shelf takes on a lot of weight for its size. Rated to hold up to 70 lbs., this tough little shelf is perfect for supporting non-rack mountable equipment such as routers, hubs, monitors, and UPS's.
- 12" depth
- 19" EIA compliant
- 70 lb. weight capacity
- Made in the USA
- Limited Lifetime Warranty
Features
Heavy Duty
Heavy gauge steel construction features two flanges for added strength and rigidity. The textured black powder coat finish lends durability to the shelf, while helping to keep it free of scratches.
Easy to Install
Each U space features four mounting holes. These mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
2-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Rounded Corners
Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers' hands while handling.

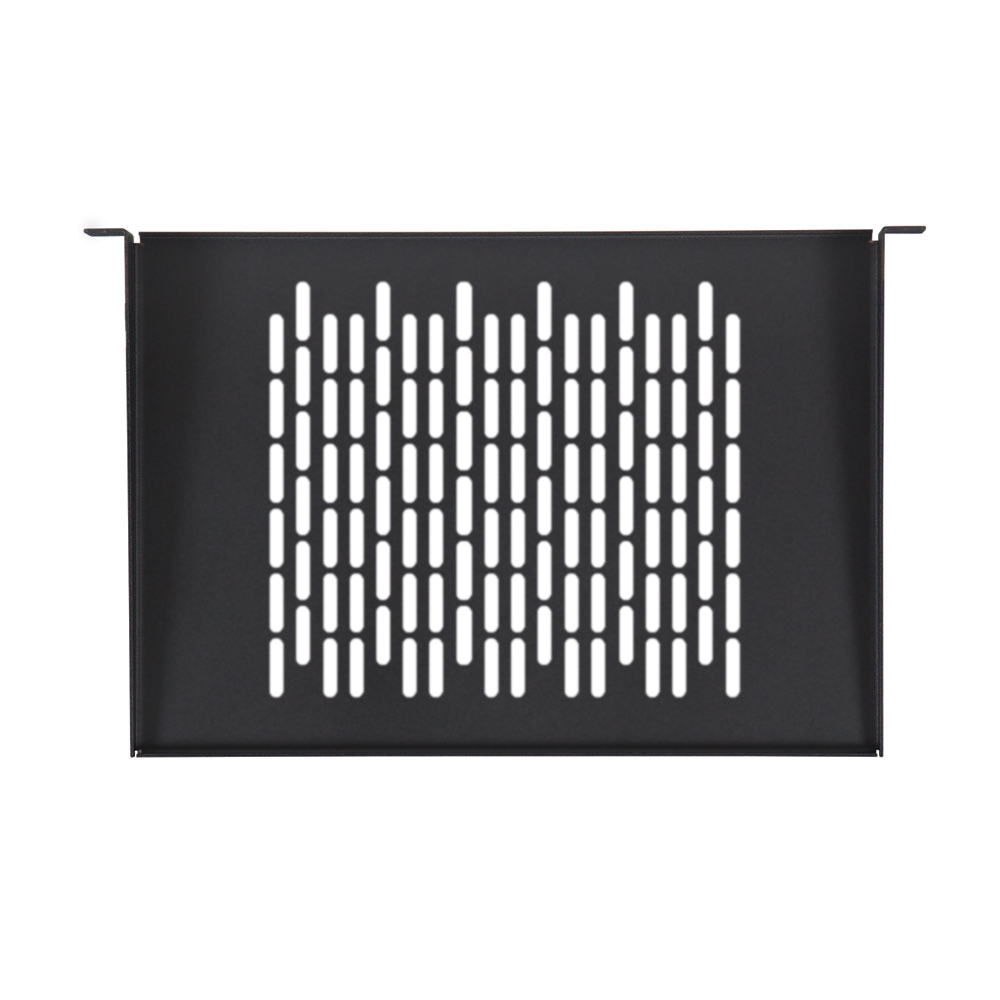

Vented
Vented slots allow air to circulate through this shelf, which assists in keeping air flowing properly within your rack or cabinet.
Specifications
| Part Number | 1906-1-201-01 |
| Width | 19" |
| Depth | 12" |
| Height | 1.72" |
| Weight | 6.00 lbs. |
| Shipping Dimensions | 22" L x 16" W x 3" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000269 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 1U 12" Vented Component Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1U 12" Vented Component Shelf (1906-1-201-01) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 1.12 MB |
Download |
Title 1U 12" Vented Component Shelf (1906-1-201-01) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 239.73 KB |
Download |
Title 1906-1-201-01.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 298.86 KB |
Download |
Title 1906-1-201-01 Data Sheet |
Type Data Sheet |
Date 11/20 |
Version 1 |
File Size 158.24 KB |
Download |
