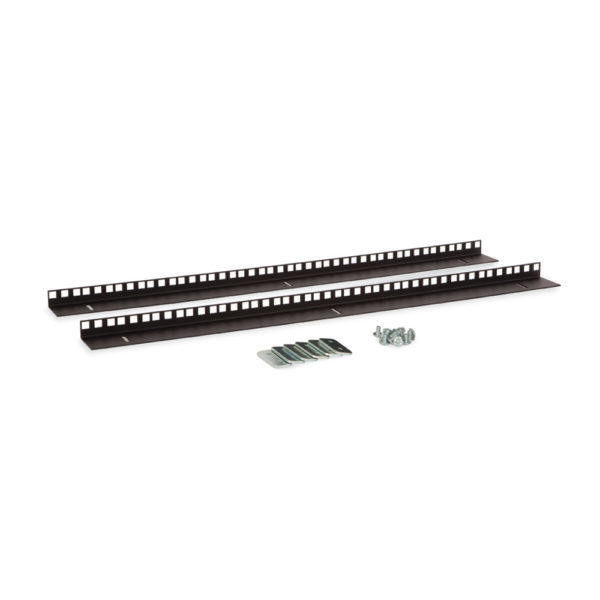

15U LINIER® Wall Mount Vertical Rail Kit - Cage Nut
15U LINIER® Wall Mount Vertical Rail Kit - Cage Nut
The LINIER® 15U Wall Mount Vertical Rail Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Fixed or Swing- Out Wall Mount Cabinet.
Made in the USA
Certifications
19" EIA compliant
Description
The LINIER® 15U Wall Mount Vertical Rail Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Fixed or Swing- Out Wall Mount Cabinet. When installing network, security, or low-voltage electrical equipment sometimes additional mounting points are required. This additional set of rails will provide the added mounting functionality you need.
Features
Cage Nut Style Rails
This set of universal cage nut rails are to be used in conjunction with rack screws and cage nuts. Cage nut style rails continue to grow in popularity because installers don’t have to worry about stripping holes. If a cage nut is stripped, you simply remove it and install a new one. With tapped rails, replacement of the entire rail is required.
Specifications
| Part Number | 3150-3-001-15 |
| Width | 0.912" |
| Depth | 2" |
| Height | 26.25" |
| Weight | 4.00 lbs. |
| Shipping Dimensions | 30" L x 5" W x 5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447002805 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 15U Vertical Rails | 2 |
| Assembly Parts Pack | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 15U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-15) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 737.85 KB |
Download |
Title 15U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-15) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 618.55 KB |
Download |
Title 15U LINIER® Wall Mount Vertical Rail Kit - Cage Nut (3150-3-001-15) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 539.04 KB |
Download |
Title 3150-3-001-15.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 263.11 KB |
Download |
