15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door
15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door
- Includes one locking tempered glass door
- Locking side panels
- 150 lb. weight capacity
- One set of cage nut style mounting rails
- 90 degree swing-out
- Mounting depth: 22.5"
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

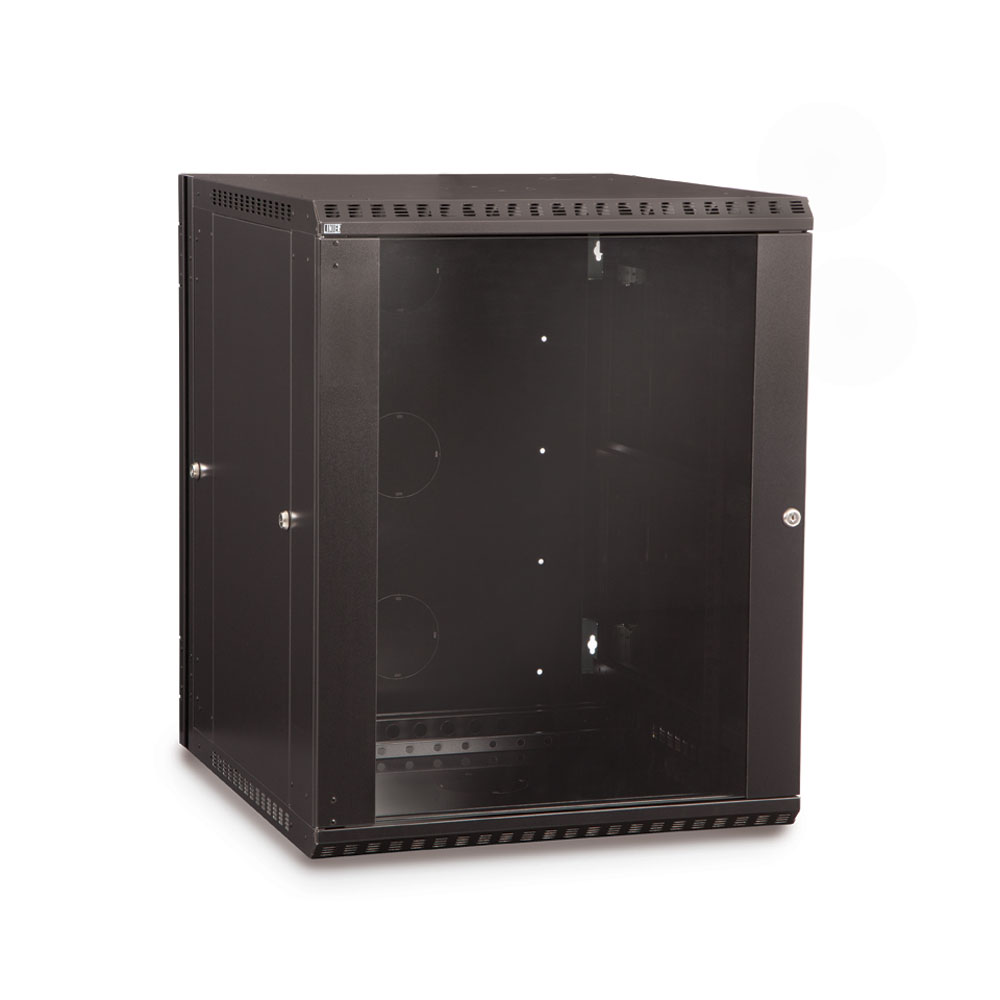

Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.

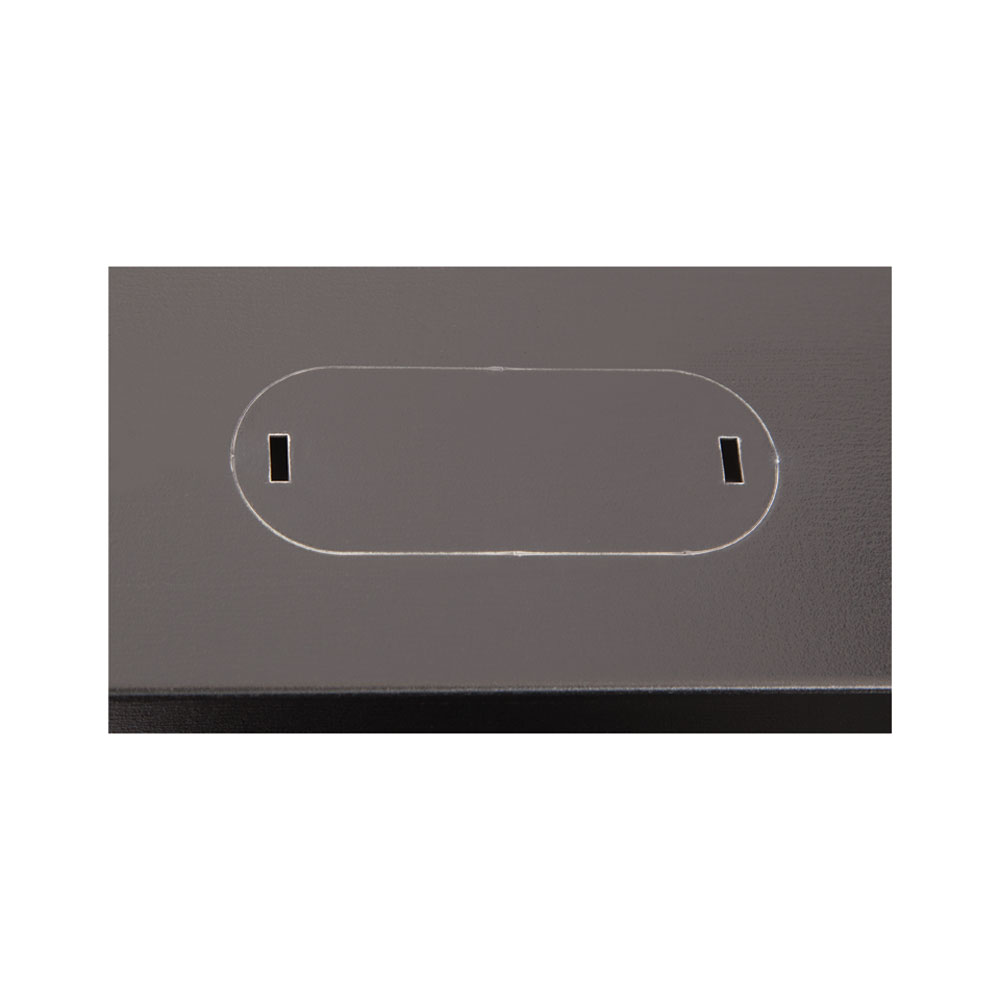

Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

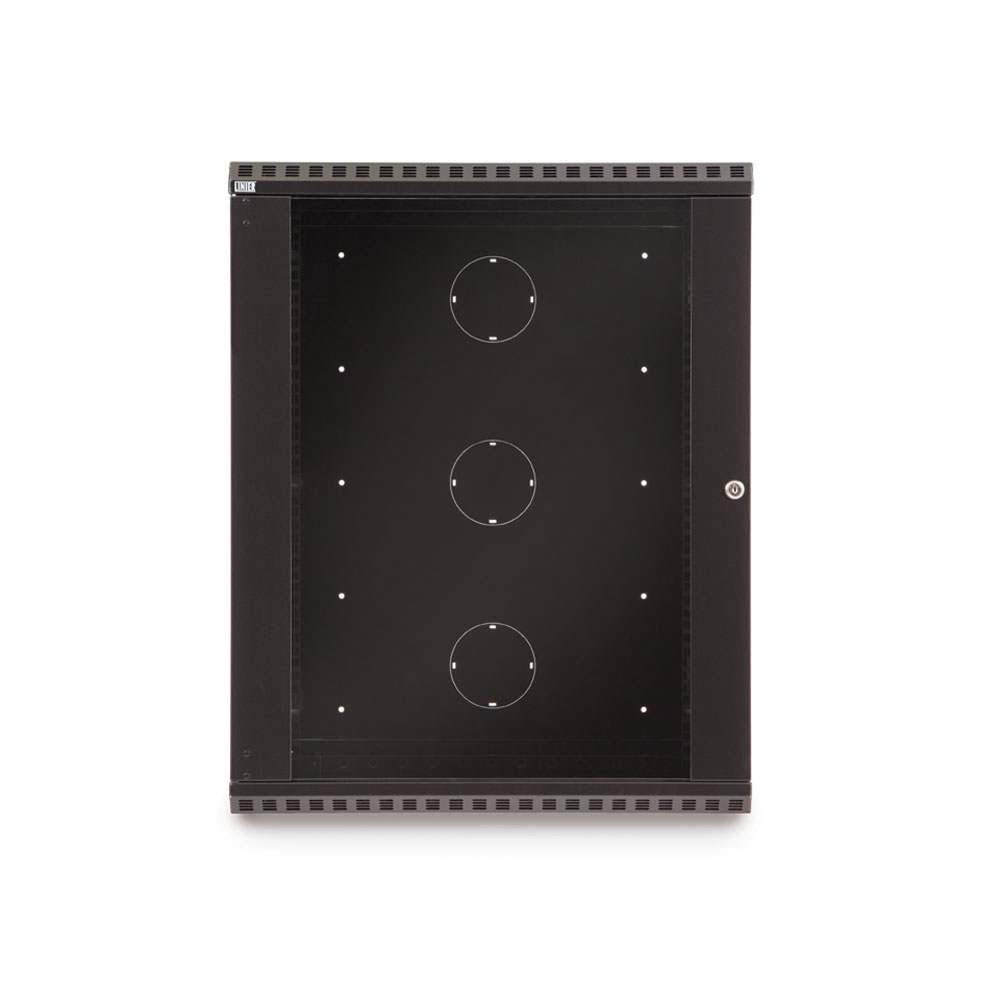

Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The glass door allows you to monitor your network system.
Part Number | 3130-3-001-15 |
Width | 23.50" |
Depth | 26.64" (Usable 22.50") |
Height | 29.96" |
Weight | 77.00 lbs. |
Shipping Dimensions | 29" L x 31" W x 36" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Medium Texture Black |
UPC | 879447001747 |
Warranty | 5-Year Limited Warranty |
Shipping Method | LTL Freight |
Item | Quantity |
---|---|
15U LINIER Swing- Out Wall Mount Cabinet - Glass Door | 1 |
Hardware Included | 1 |
Set of Cage Nut Style Mounting Rails | 1 |
10-32 Rack Screws | 24 |
10-32 Cage Nuts | 24 |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-15) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 126.92 KB |
Download |
Title 15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-15) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 483.42 KB |
Download |
Title 3130-3-001-15.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 12.48 MB |
Download |
Title Wallmount Swing-Out Cut Sheet |
Type Cut Sheet |
Date 01/21 |
Version 1 |
File Size 468.82 KB |
Download |
