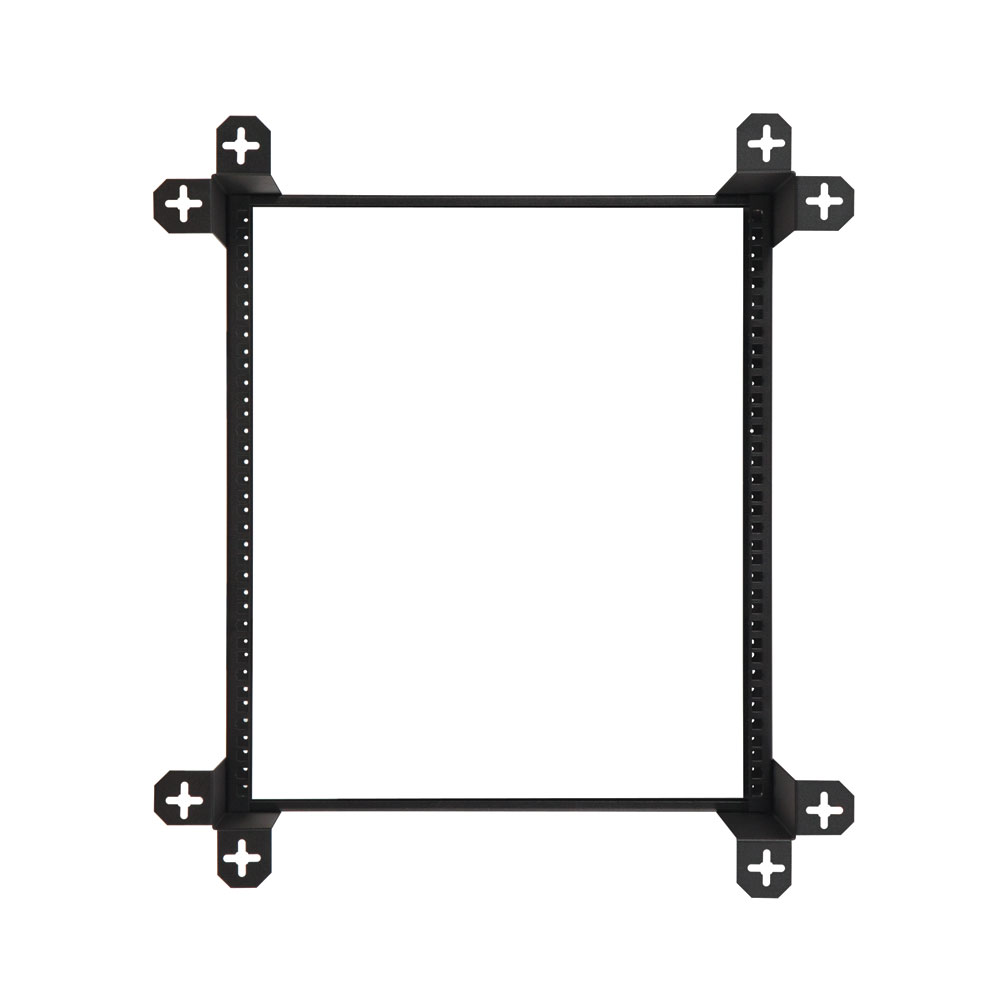

12U V-Line Wall Mount Rack - 12" Depth
12U V-Line Wall Mount Rack - 12" Depth
When a simple open frame wall mount rack is needed, the Kendall Howard V-Line Open Frame Fixed Wall Mount Rack is a great option.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 12U V-Line Wall Mount Rack is the perfect entry level solution for IT installers, musicians, audio/visual technicians, and anyone else in the telecom industry. When a simple open frame wall mount rack is needed, the Kendall Howard V-Line Open Frame Fixed Wall Mount Rack is a great option.
- 12" usable depth
- Cage Nut or 10-32 Tapped Rails
- Self-squaring design
- 19" EIA compliant
- Made in the USA
Features
Knockdown Design
The bolt together assembly has a self-squaring design to make it incredibly easy to assemble and install.
Choose Your Rail Style
The U shaped rail channels feature two different mounting styles. One side features 10-32 tapped mounting holes, and the other has universal cage nut mounting capabilities.
Quality Wall Rack
The simplistic design of the V-Line Wall Mount Rack may not look it, but its 300 lb. weight capacity makes it one of the strongest wall mount solutions out there.
Specifications
| Part Number | 1915-3-300-12 |
| Width | 21.5" |
| Depth | 12" |
| Height | 24.13" |
| Weight | 10.30 lbs. |
| Shipping Dimensions | 23" L x 10" W x 4" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447001198 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| V-Line Wall Rack H-Brace | 2 |
| V-Line Wall Rack Brackets | 4 |
| V-Line 12U Rack Rails | 2 |
| Assembly Parts Pack | 1 |
| 10-32 Rack Screws | 24 |
| 10-32 Cage Nuts | 24 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 12U V-Line Wall Mount Rack - 12" Depth (1915-3-300-12) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 933.21 KB |
Download |
Title 12U V-Line Wall Mount Rack - 12" Depth (1915-3-300-12) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 12U V-Line Wall Mount Rack - 12" Depth (1915-3-300-12) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 292.73 KB |
Download |
Title 1915-3-300-12.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 613.53 KB |
Download |
