12U Side Load Wall Mount Rack

Item #:1915-3-200-12

12U Side Load Wall Mount Rack

Item #:1915-3-200-12
An open frame wall mount rack that allows equipment to be loaded from side to side.  Great for servers, battery backups, and other heavy rackmount components.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description

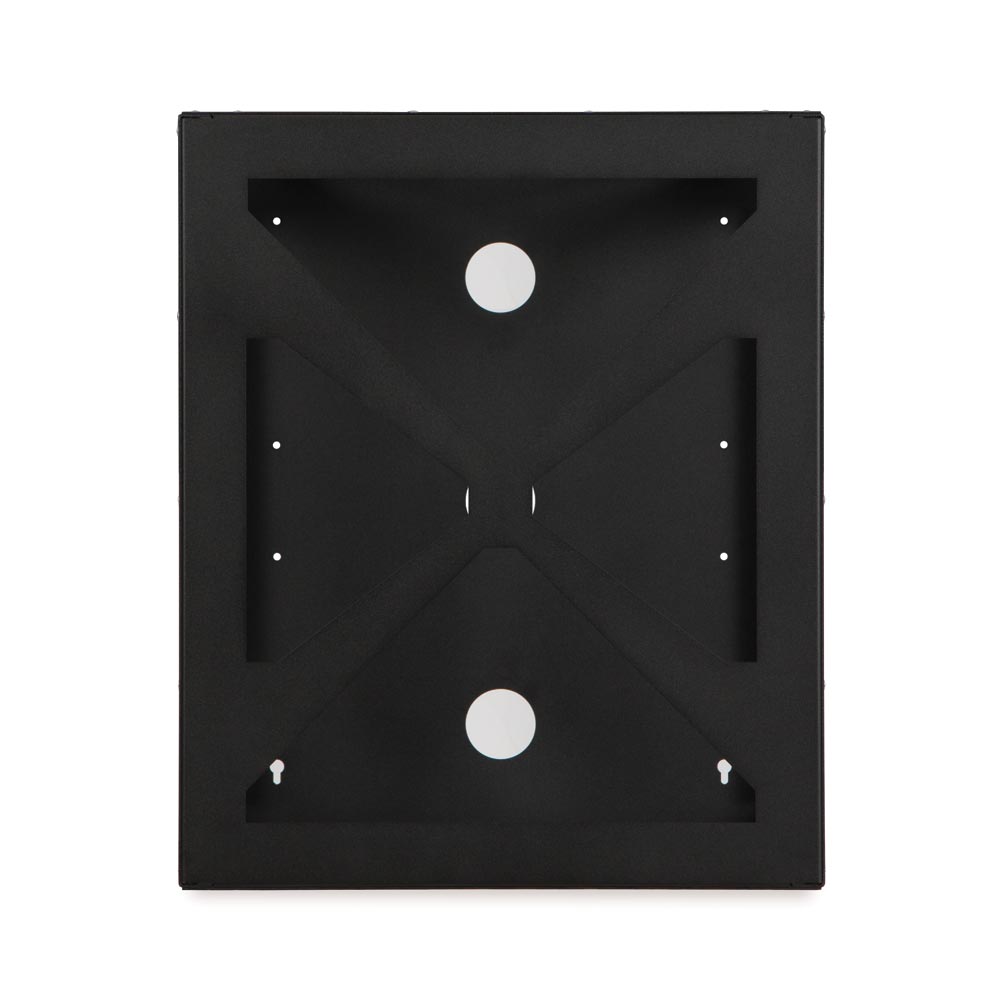

The Kendall Howard Side Load Wall Mount Rack is an open frame rack with a twist...literally. The rack mounts sideways allowing you to install equipment from side to side. This innovative concept not only allows you to install deeper equipment than most other wall mount racks, but you also have clear and easy access to the front and rear of the devices. With a weight capacity of up to 350 lbs., this side loading wall rack is a great solution for servers, battery backups, and other heavy rackmount components.
  • 20" fixed mounting depth
  • 350 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Space Saving Design

When you do not have the space for a full size server cabinet or when hanging larger, deeper components on the wall is necessary, the Side Load Wall Mount Rack gives some of the same benefits you get from a 4-Post rack or cabinet in a much smaller footprint. The low profile design is only 21″ off the wall, making it a true space saver.

Equipment Access

Easily access the front and back of your network equipment without having to twist, pivot or swing-out the rack. This open design provides installers unlimited access to equipment from just about any angle.

Strength and Durability

The heavy gauge steel construction and textured powder coat finish provide a solid, reliable wall mount racking solution.

Front and Rear Rails

The fixed set of front and rear (which are really left and right) cage nut style rails provide a 20″ mounting depth for equipment that requires a 4-point mounting.

Specifications
Part Number 1915-3-200-12
Width 20.15"
Depth 22.18"
Height 24.27"
Weight 37.50 lbs.
Shipping Dimensions 29" L x 28" W x 25" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001181
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
12U Side Load Wall Mount Rack 1
Resources
Title Type Date Version File Size
Title
12U Side Load Wall Mount Rack (1915-3-200-12) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
72.11 KB		 Download
Title
1915-3-200-12.STEP
Type
3D CAD
Date
09/20
Version
1
File Size
635.11 KB		 Download
Title
8U and 12U Side Load Wall Mount Rack Instructions
Type
Instructions
Date
10/23
Version
1
File Size
386.31 KB		 Download
Title
Side Load Wall Mount Rack Cut Sheet (1915-3-200-08 and 1915-3-200-12)
Type
Cut Sheet
Date
11/23
Version
1
File Size
342.38 KB		 Download
