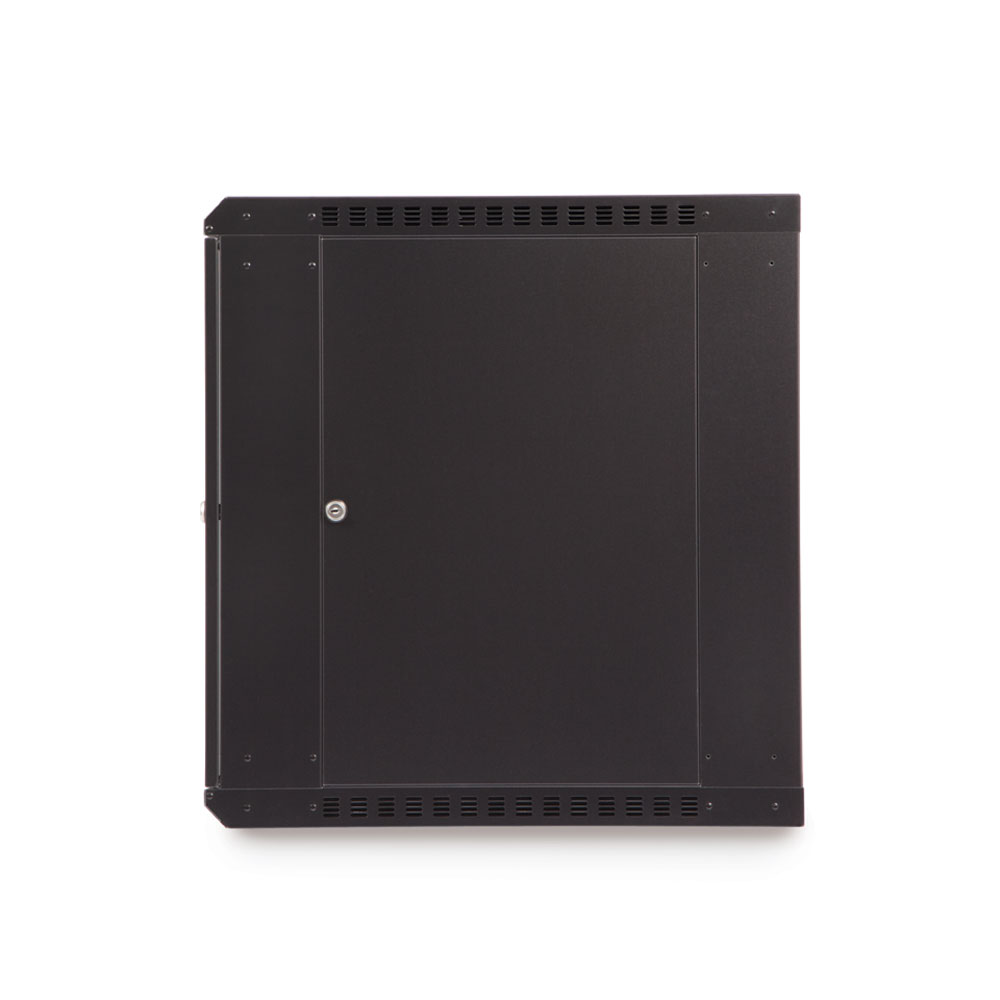

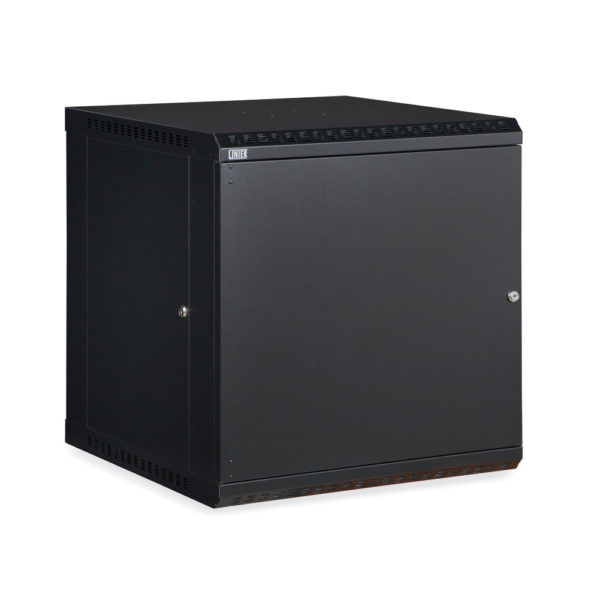

12U LINIER® Fixed Wall Mount Cabinet - Solid Door

Item #:3141-3-001-12

12U LINIER® Fixed Wall Mount Cabinet - Solid Door

Item #:3141-3-001-12
The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment.
Made in the USA
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description
If you are looking for the right wall mount rack at the right price, the LINIER® brand is the solution for you. The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment. Its feature rich design gives you a universal enclosure, guaranteed to function for a variety of applications.
  • Includes one locking solid door
  • Locking side panels
  • 250 lb. weight capacity
  • One set of cage nut style mounting rails
  • Mounting depth: 22.50"
  • 19" EIA compliant
  • Made in the USA
  • 5-Year Limited Warranty
Features
Cost-Effective Design

Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made yet economical wall mount enclosure.

Numerous Laser Knockouts

Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

Adjustable Rails

The included cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

Removable Side Panels

Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

Locking Door and Side Panels

The locking feature provides additional security for all three access points to keep your valuable rack mounted equipment safe from unauthorized use.

Reversible Solid Door

Solid door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The solid door allows you to enclose and secure your network system.

Specifications
Part Number 3141-3-001-12
Width 23.50"
Depth 23.50" (Usable 22.50")
Height 24.71"
Weight 56.00 lbs.
Shipping Dimensions 28" L x 28" W x 31" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447005301
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
12U LINIER Fixed Wall Mount Cabinet - Solid Door 1
Hardware Included 1
Set of Cage Nut Style Mounting Rails 1
10-32 Rack Screws 24
10-32 Cage Nuts 24
Resources
Title Type Date Version File Size
Title
12U LINIER® Fixed Wall Mount Cabinet - Solid Door (3141-3-001-12) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
 Download
Title
12U LINIER® Fixed Wall Mount Cabinet - Solid Door (3141-3-001-12) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
 Download
Title
12U LINIER® Fixed Wall Mount Cabinet - Solid Door (3141-3-001-12) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
460.38 KB		 Download
