12-24 Cage Nuts - 50 Pack
12-24 Cage Nuts - 50 Pack
- Quantity: 50
- Thread Size: 12-24
- Snap-in Design
- Packaged in an aluminum tin
- RoHS compliant
- Made in the USA

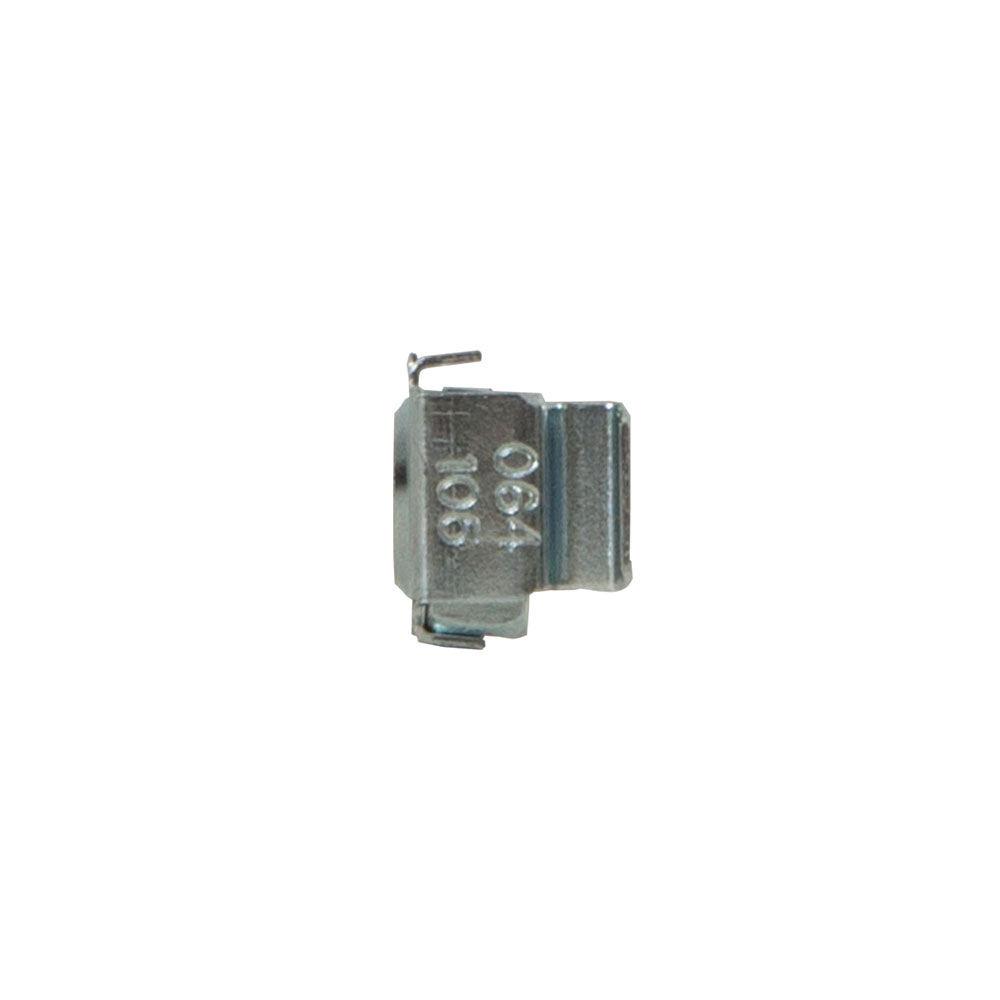

Captive nut and spring steel cage feature wings that can be compressed to snap into the square holes found in universal/punched panel rails. Unlike slide on cage nuts, this design locks the nut securely in place.
Take away the hassle of dealing with stripped holes in tapped rails.If you strip a cage nut they can easily be replaced in the field, saving you time and money.
Using universal rack rails and cage nuts gives you the flexibility to use whatever size hardware you prefer.You can even use multiple sizes in the same installation. So now you can use smaller rack screws and cage nuts for lightweight rack shelves, cable managers, and spacer blanks, and larger hardware for heavier equipment such as servers, UPS’s and KVM switches.
The construction and materials used are better suited for threading than what is used in full size tapped rails. This provides a stronger, more durable fastening solution.
Part Number | 0200-1-001-03 |
Width | 0.52" |
Depth | 0.36" |
Height | 0.5" |
Weight | 1.20 lbs. |
Shipping Dimensions | 6" L x 6" W x 6" H |
Material(s) | Steel |
Color/Finish | Clear Zinc Finish |
UPC | 879447003093 |
Warranty | Limited Lifetime Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
Aluminum Tin | 1 |
12-24 Cage Nuts | 50 |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 12-24 Cage Nuts - 50 Pack (0200-1-001-03) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 63.79 KB |
Download |
Title 12-24 Cage Nuts - 50 Pack (0200-1-001-03) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 241.67 KB |
Download |
Title 0200-1-001-03.STEP |
Type 3D CAD |
Date 12/19 |
Version 1 |
File Size 48.02 KB |
Download |
Title Rack Screws and Cage Nuts Cut Sheet |
Type Cut Sheet |
Date 03/23 |
Version 1 |
File Size 222.13 KB |
Download |
