10-32 Rack Screws w/ Washers - 100 Pack

Item #:0100-1-012-01

10-32 Rack Screws w/ Washers - 100 Pack

Item #:0100-1-012-01
These superior, American-made, quality screws should be your only choice for securing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.
Made in the USA
Certifications
RoHS Compliant
Add to List
Description Features Specifications What's in the Box Resources Accessories Related
Description

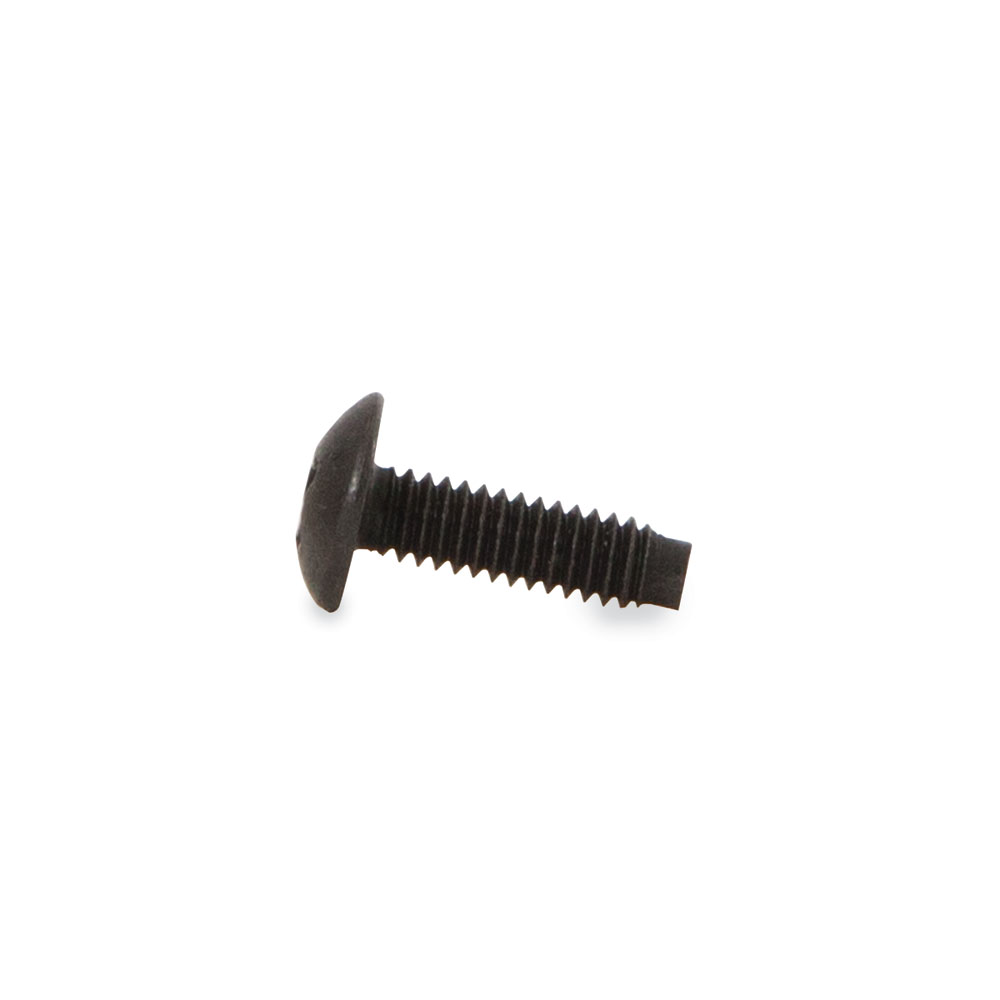

The Kendall Howard 10-32 Rack Screws with washers are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for securing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.
  • 0.75" in length
  • 10-32 pilot point
  • Phillips truss head
  • Packaged in an aluminum tin
Features
Dog/Pilot Point

The straight pointed section below the thread helps to self-guide the screw to prevent accidental stripping while also improving the ease of installation.

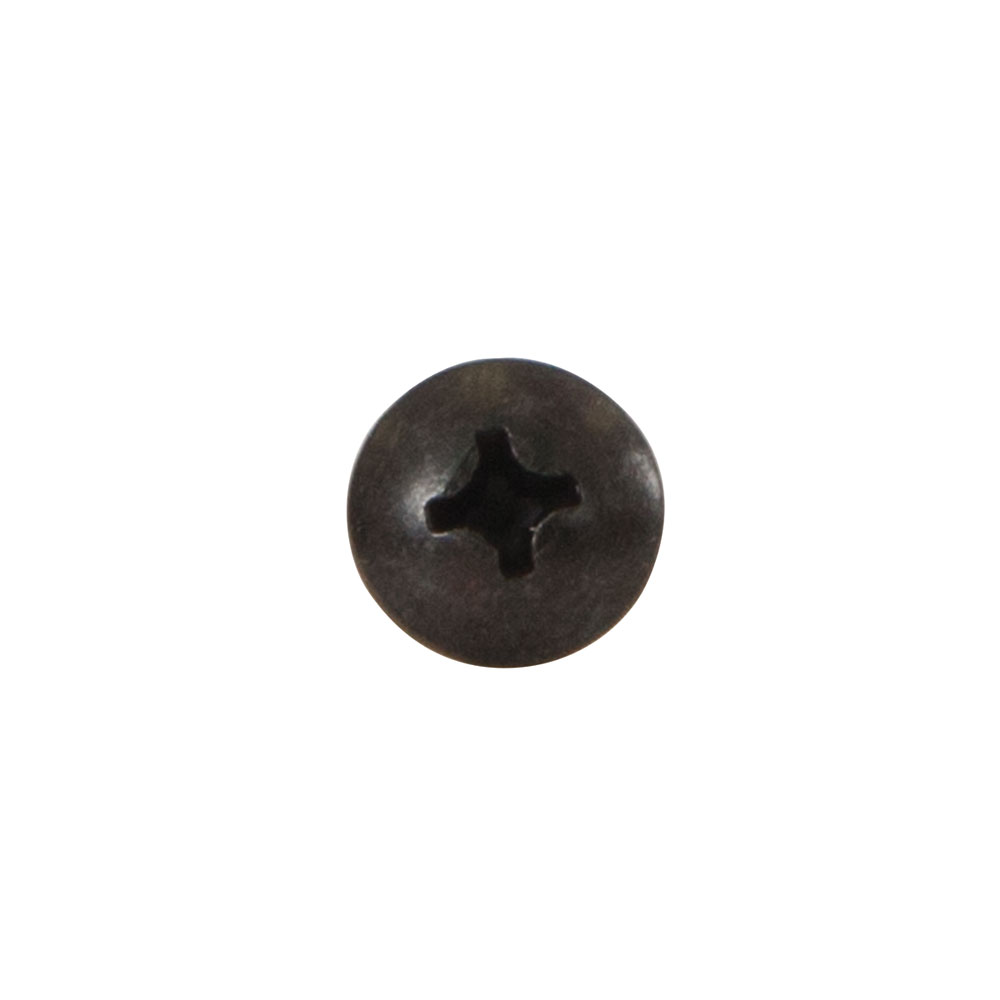

Phillips Truss Head

Truss head screws can be installed with one of the most universal tools on the market. Requires only a Phillips head screwdriver or bit.

Protective Delrin Washer

Distributes the pressure of the screw head more evenly to prevent damage or scratches to your rack mountable devices.

Compatible Rail Systems

Kendall Howard 10-32 rack screws can be utilized in any 10-32 tapped rail system. They can also be installed in universal cage nut style rails when used in conjunction with 10-32 cage nuts.

Superior Manufacturing

The hardened steel construction produces a high-quality finish with excellent dimensional stability. We then take it one step further and finish them with a black oxide coating so the screw blends with most standard black network racks, cabinets, and accessories.

Specifications
Part Number 0100-1-012-01
Width 0.44"
Depth 0.87"
Height 0.44"
Weight 1.50 lbs.
Shipping Dimensions 6" L x 6" W x 6" H
Material(s) Hardened Steel (Rack Screw) / Delrin (Washer)
Color/Finish Black Oxide with Wax Finish
UPC 879447000061
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Aluminum Tin 1
10-32 Rack Screws 100
Standard Washers 100
Resources
Title Type Date Version File Size
Title
10-32 Rack Screws w/ Washers - 100 Pack (0100-1-012-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
69.50 KB		 Download
Title
10-32 Rack Screws w/ Washers - 100 Pack (0100-1-012-01) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
237.47 KB		 Download
Title
0100-1-012-01.STEP
Type
3D CAD
Date
12/19
Version
1
File Size
80.04 KB		 Download
Title
Rack Screws and Washers Cut Sheet
Type
Cut Sheet
Date
03/23
Version
1
File Size
362.47 KB		 Download
