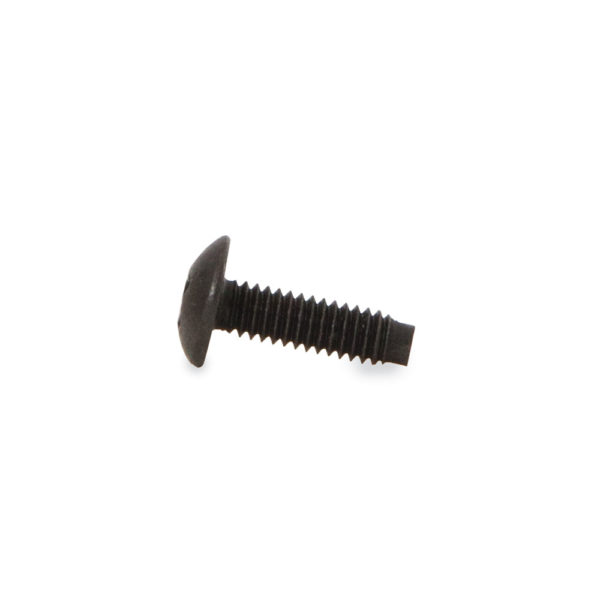

10-32 Rack Screws - 50 Pack
10-32 Rack Screws - 50 Pack
These superior, American-made, quality screws should be your only choice for installing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.
Made in the USA
Certifications
RoHS Compliant
Description
The Kendall Howard 10-32 Rack Screws are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for installing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.
- 0.75" in length
- Phillips truss head
- Packaged in an aluminum tin
Features
Dog/Pilot Point
The straight pointed section below the thread helps to self-guide the screw to prevent accidental stripping while also improving the ease of installation.
Phillips Truss Head
Truss head screws can be installed with one of the most universal tools on the market. Requires only a Phillips head screwdriver or bit.
Compatible Rail Systems
Kendall Howard 10-32 rack screws can be utilized in any 10-32 tapped rail system. They can also be installed in universal cage nut style rails when used in conjunction with 10-32 cage nuts.
Superior Manufacturing
The hardened steel construction produces a high-quality finish with excellent dimensional stability. We then take it one step further and finish them with a black oxide coating so the screw blends with most standard black network racks, cabinets, and accessories.
Specifications
| Part Number | 0100-1-001-01 |
| Width | 0.44" |
| Depth | 0.87" |
| Height | 0.44" |
| Weight | 1.00 lbs. |
| Shipping Dimensions | 6" L x 6" W x 6" H |
| Material(s) | Hardened Steel |
| Color/Finish | Black Oxide with Wax Finish |
| UPC | 879447000030 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| Aluminum Tin | 1 |
| 10-32 Rack Screws | 50 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 10-32 Rack Screws - 50 Pack (0100-1-001-01) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 69.58 KB |
Download |
Title 10-32 Rack Screws - 50 Pack (0100-1-001-01) Instructions |
Type Instructions |
Date 10/21 |
Version 1 |
File Size 237.47 KB |
Download |
Title 0100-1-001-01.STEP |
Type 3D CAD |
Date 12/19 |
Version 1 |
File Size 79.07 KB |
Download |
Title Rack Screws and Cage Nuts Cut Sheet |
Type Cut Sheet |
Date 03/23 |
Version 1 |
File Size 222.13 KB |
Download |
